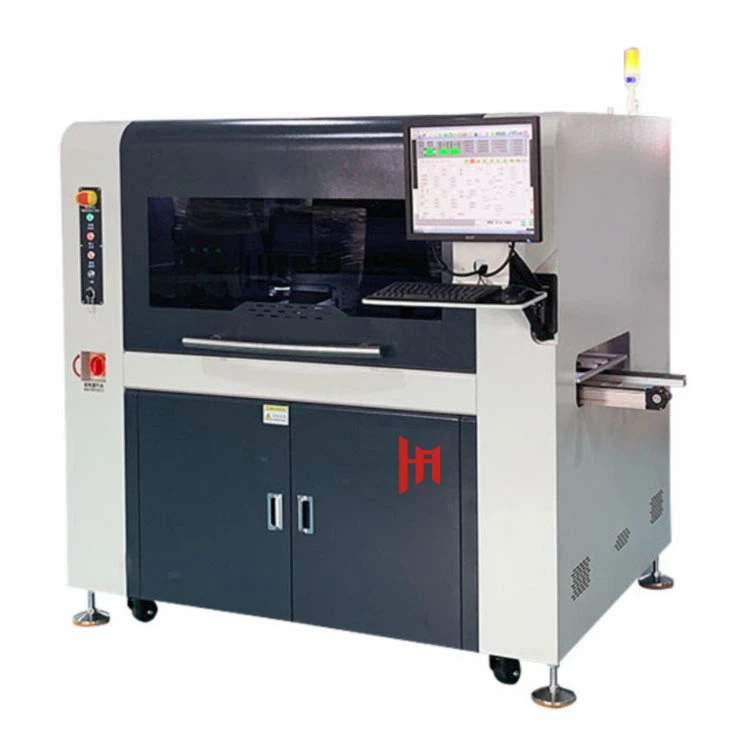

Dual working platforms are used to increase productivity.
More stable with dual Y axis, servo motor, and precise screw rob.
High speed and accuracy, with precise driving mechanism.
Stress-free cutting.
Precise positioning of MARK point.
Equipped with colorful HD industrial camera, flight shooting.
Equipped with automatic tool change mechanism.
Equipped with 80000rpm high-speed electric spindle.
Efficient cutting and cost reduction.
MES or ERP connection is available.

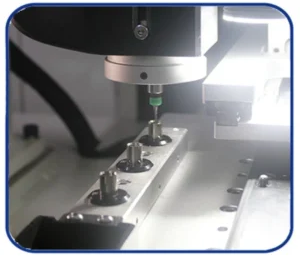

Automatic tool-change system
Automatic tool-change mechanism equipped contributes to avoiding occupational injury and mis operation from the source and greatly improving the operation efficiency; with an automatic tool-breaking detection function; imported motorized spindle adopted contributes to a longer service life and good stability; with a smaller cutting stress, smooth board edges and high degree of precision; Z-axis has a setting of automatic compensation, making the depth of milling cutter autoregulative; the signal port of robotic arms can be expanded for free in future so as to realize unmanned operation.

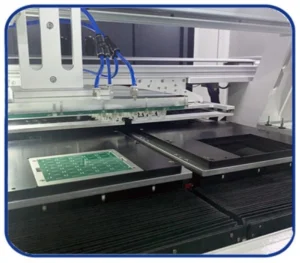

Dual servo working platform
Servo is used to drive two working platform to process and place PCB base plate alternately to reduce the waiting time, increase productivity and solve the precision problem of cylinder-type driving platform. The product placement detector is set on tools to determine whether tools are placed well to prevent products from being damage.

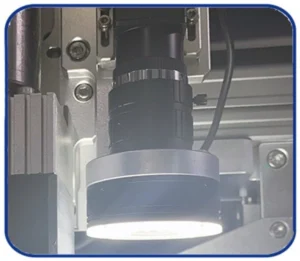

Visual system
High-pixel color CCD and big multiple-ratio lens, auxiliary program demonstration and editing simulation function. Automatic MARK positioning supplement and correction system improves cutting precision and prevents boards from cutting base plate by mistake, making copying of right and left programs and change of machine type more efficient. Flight photographing camera structure design adopted. Left and right platform can segment different products. Meanwhile, processing is feasible under the circumstance of different heights of tools. Also, barcode-reading function can be chosen to save or upload 1D/2D barcode, convenient for traceability and digital management.

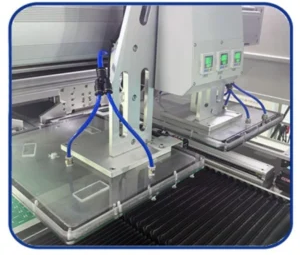

Manipulator transferring
X-axis transferring is driven by servo motor and precision enclosed module, with high precision and high speed. Double manipulator transferring mechanism, independent loading and uploading system, with high efficiency, flexibility, and quick changeover. Also, abnormal warning for product pick-and-place is set.
Camera | Color CCD camera |
FOV | 5x5mm |
Image processing speed | <300MS/FOV |
Max PCB size | L300*W350mm |
Accuracy | ±0.05mm |
PCB thickness | 0.5-3mm |
Speed of main spindle | 20000-80000RPM |
Platform accuracy | ±0.02mm |
Rail height | 900±20mm |
Rail width | 60-300mm automatic adjustment |
Transfer direction | L to R |
Milling cutter | Φ0.8-3.0mm |
Detection method of dust collector | Pressure detection |
Weight | 1100kg |
Power supply | Main Machine: AC220V, 50HZ |
Air supply | 4-6 kg/cm |
