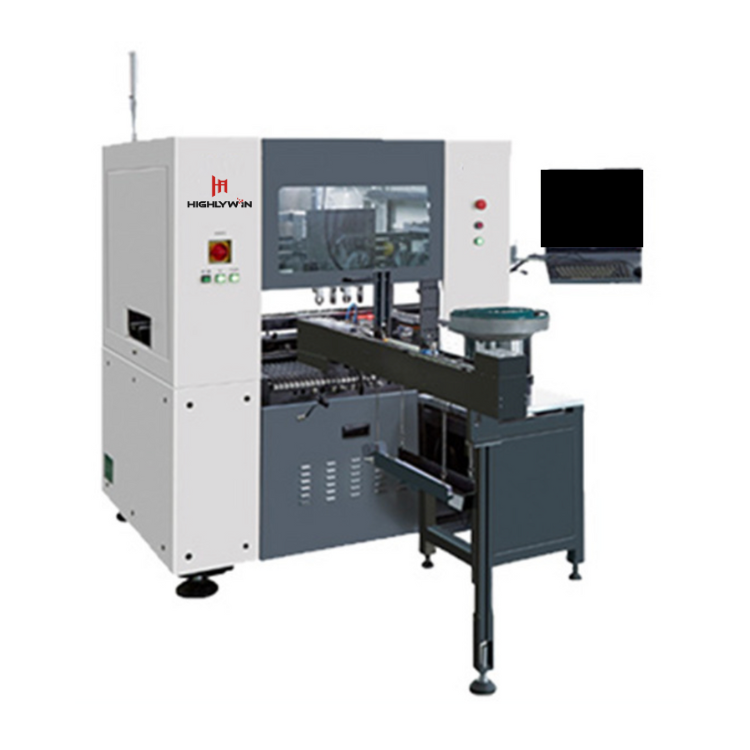

Online button insertion machine HWB-8100
The online button/key switch insertion HWB-80 series machine, the latest and most practical through hole button/key switch insertion machine, equipped with industrial HD camera, with the component lead bending, lead fixing, and detection function. For your high-volume production needs, the HWB-8100 offers high-speed, high-precision, highly flexible platform. Fast and compact pneumatic heads can be quickly changed to insert different components.
Equipped with industrial special HD camera and visual correction software.
Visible deviation between the PCB hole position and the programmed coordinates, coordinates can be quickly and automatically corrected to align with the actual position, ensuring the accuracy of the insertion and improving the programming efficiency.
It can realize button single lead missing detection, but without re-insertion function.
Instead of manual work, save labor cost.
Compact machine size can be easily integrated into SMT production line.
Theoretical speed up to 8000 points/hour, high efficiency, and productivity.
Simple operation, easy programmed, stable, and reliable.
Bottom maintenance cost, only requires minimal maintenance, helping to reduce cost while increasing productivity.
Customized bowl feeders for buttons.
Grippers and nozzles can be customized for various types of shaped components, easy for replacement.
Windows based software, full English interface, easy to operate.
Model | HWB-8100 |
Theoretical speed | Approx. 8000 CPH |
Insertion direction | 0°-360°, 1° increment |
Insertion heads | 1-2 (selectable) |
PCB size | 50x50mm-280x380mm(customizable) |
PCB thickness | 0.59-2.36mm |

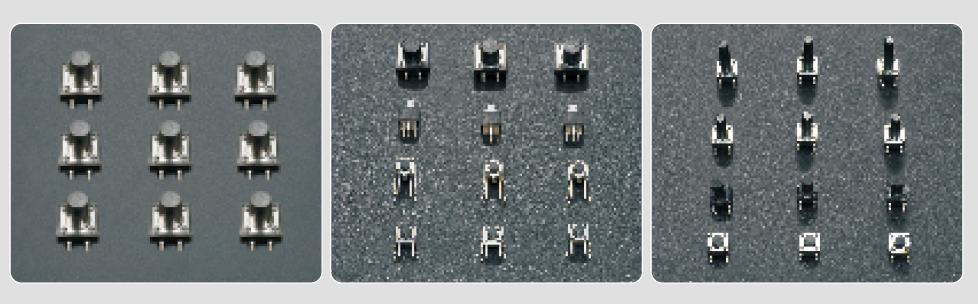

Button size | Outer diameter: 6*6 – 10*10mm, handle length ≤18mm |
PCB board requirements | Position hole is needed, the PCB aperture is at least 0.5mm larger than component lead. |
Component leads fixing | Leads bend inward |
Feeder access | 6 |
Components package | bulk |
Machine dimension | 1400x1200x1700mm |
Power supply | AC220V, single phase, 50/60HZ |
Air supply/ consumption | 0.6-0.8Mpa / 0.3M⊃3; /min |
Camera 1 Hole position correction | Vision system, multi-point MARK vision |
Camera 2 | Lead tip recognition |
Drive system | AC servo motor |
Data input mode | USB port (EXCEL file) |
