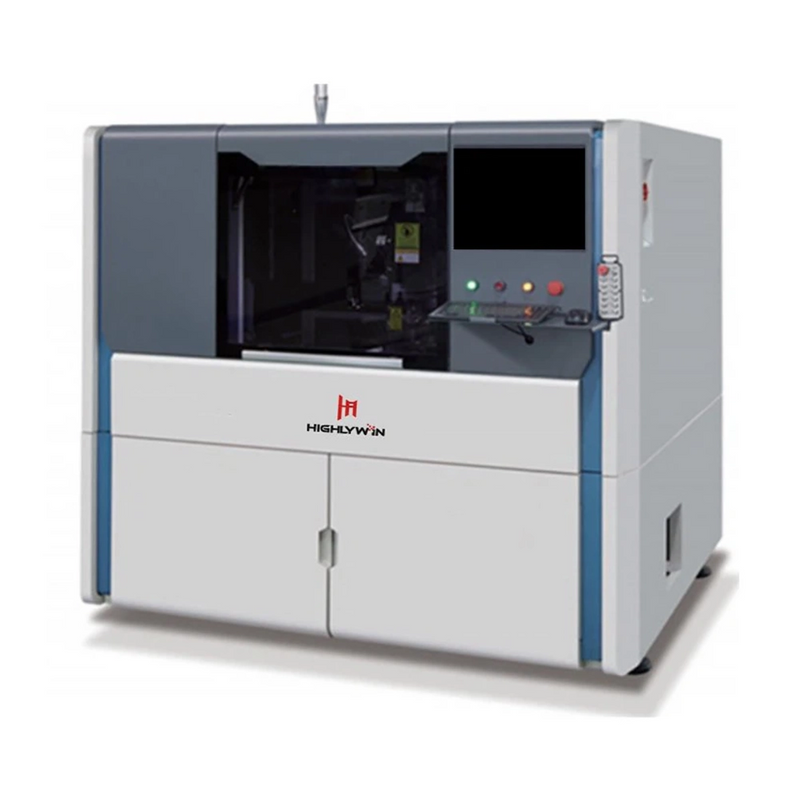

Online Axial Insertion Machine HWR-30
Axial Insertion Machine Advantages
This Radial insertion machine is essential unit for manufacturer, it’s the key to accurate radial component placement for PCB assembly lines. It works by using a vacuum pick-and-place mechanism to pick up components from a feeder and place them in the correct holes on the PCB. The machine has a vision system that helps to ensure that the components are placed in the correct orientation.
The UPH of this HWR-20 radial insertion machine is up to 24000, making an efficient production, save changeover time, achieve the fully automatic production line, also allows the traceability of operations, and connects to the factory’s system, reduce the labor cost and risk of errors.
We have all solutions for inserting radial, axial, pin, terminal, connector, and odd form components, it’s appreciated to contact us for getting more insertion machines catalogue.
Axial Insertion Machine Features
This automated insertion machine is designed for the process of placing axial components in PCB assembly lines.
The theoretical speed of HWR-30 axial insertion machine is up to 24000UPH, making an efficient production, shorter changeover time, it can realize the fully automatic production line, also allows the traceability of operations, and connects to the factory’s system.
We have all solutions for inserting radial, axial, pin, terminal, connector, and odd form components, it’s appreciated to contact us for getting more insertion machines catalogue.
Model | HWR-30 |
Theoretical speed | Approx. 24000 CPH |
Insertion direction | 0°, 90°, 180°, 270° |
Lead span | Two holes span 5-20mm |
PCB size | 80x50mm – 360x350mm |
PCB thickness | 0.79-2.36mm |
Jump wire | Independent feeder, Diameter 0.6mm jumper wire |
Lead cut & clinch length | 1.2-2.2mm adjustable |
Lead clinch angle | 5°-35° adjustable |
Feeder stations | 20 |
Components variety | Capacitors, transistors, diodes, resistors, fuses, etc., tape materials |
Machine dimension | 1700x1500x1800mm |
Power supply | AC220V, single phase, 50/60HZ |
Air supply/ consumption | 0.4-0.6Mpa / 0.3M³ /min(dry air) |
Hole position correction | vision system, multi-point MARK vision |
Drive system | AC servo motor |
Data input mode | USB port (EXCEL file) |
PCB loading & unloading | Automatic, L to R or R to L |
Platform movement | Clockwise and counterclockwise |
