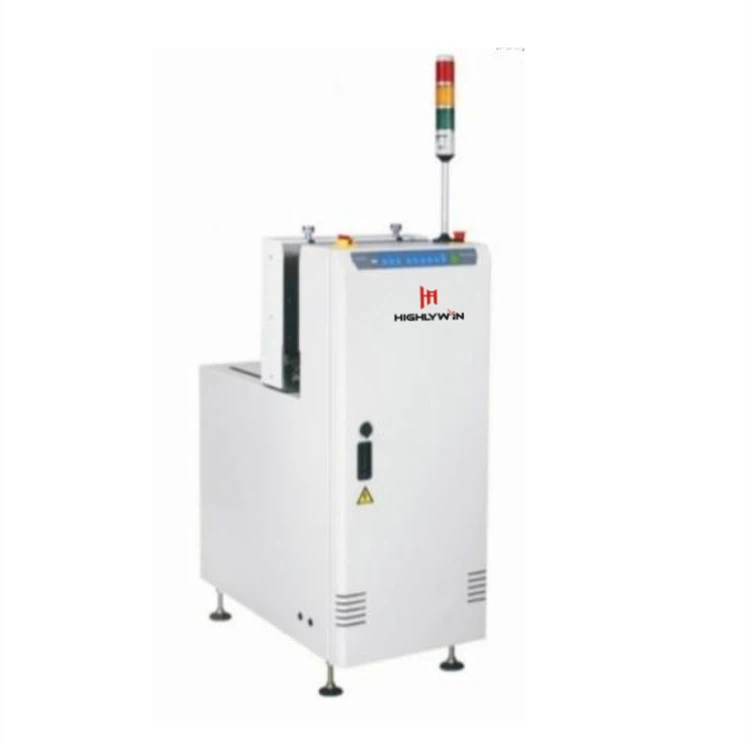

Stacked Bear Boards Loader/Unloader (Destacker)
This unit is designed for loading/unloading the bare boards onto/off the SMT line in a high speed.
Unique separation cams of the stacked loader take one PCB from the bottom of the stacked panels and softly lower it on the ESD belts to transfer it to the downstream machine.
The PCB detacker is used for unloading bear board from the PCB intelligent assembly line. The PCB board is transferring on the electronic assembly line, it can continuously jack up the PCB board from the belt conveyor one by one and finish unloading operation.
Reliable PLC control and friendly touchscreen panel system.
Aluminum frame structure, stable, firm, and durable design.
Small volume design for space saving.
Enclosed design provides highest level of safety.
By-pass mode selectable and can use as a PCB conveyor on the SMT assembly line.
Shortest loading/unloading cycle time for PCB.
Min. PCB thickness 0.6mm.
Uninterrupted PCB loading.
Pre-signal alarm for PCB lower stack heights.
Heavy bottom design to prevent shifting.
Smooth and parallel width adjustment by the crank wheel (optional: motorized).
Standard SMEMA is compatible, SMEMA cables are included.
Transport Height: 900 ± 20 mm (or customized)
Transport Direction: Left to Right (option: Right to Left)
Fixed Rail: Front of machine
Power Supply: AC 220V ± 10V single phase
Power Consumption: Max 100 VA
Air Supply: 4-6 bar, max 10 ltr/min
Cycle Time: Approx. 10s or specify
Maximum PCBs Capacity: 400 pcs (0.6 mm thick PCB)
Conveyor Speed: 0-1500 mm/min
| Attribute | HLBD-460 (loader) | HULBD-460 (unloader) |
| Dimension (LWH mm) | 550 x 889 x 1200 | 503 x 889 x 1200 |
| PCB Size (mm) | 50 x 50 – 460 x 460 | 50 x 50 – 460 x 460 |
| Weight (KG) | 200 | 180 |
