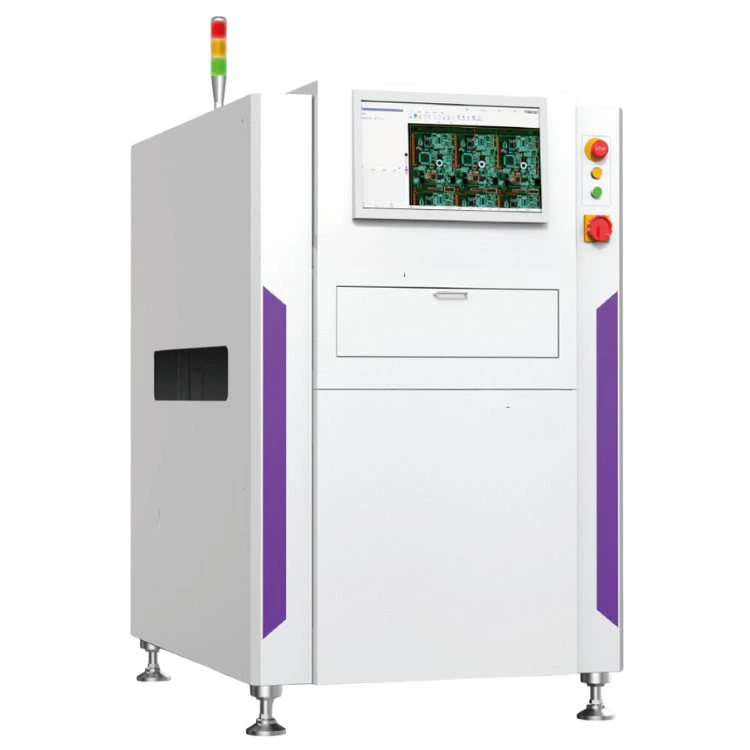

3D SPI Solder Paster Detector

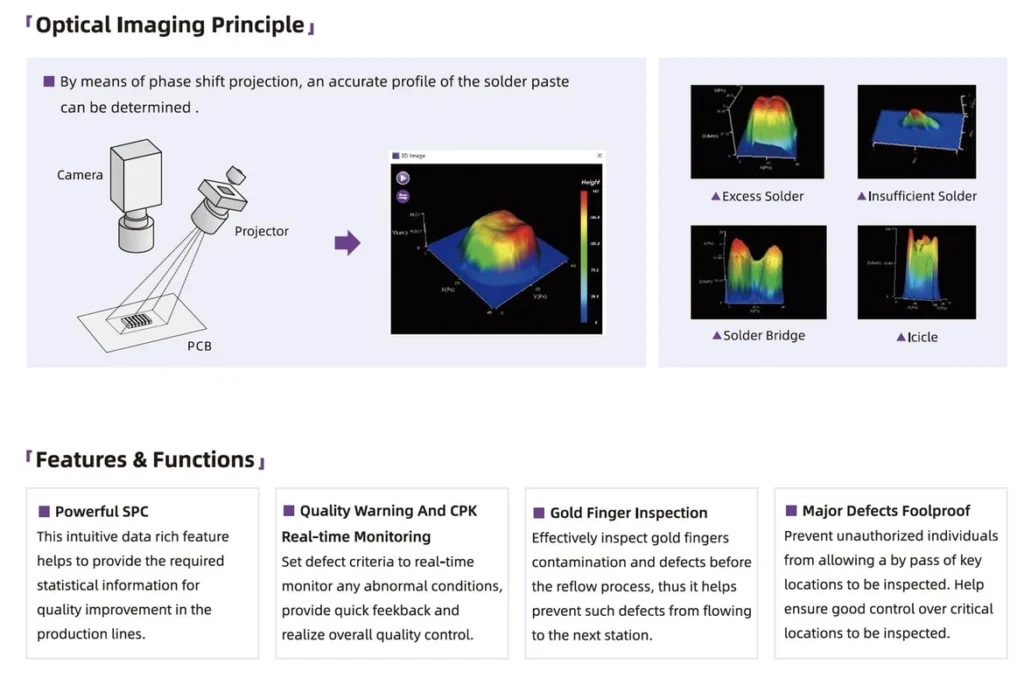

It uses 3D imaging to scan the surface area, and the scanned image is compared to the specified measurements for the specific board. This method is very accurate for detecting defects, which is important because any defect can lead to the board not working or failing early.
This 3D solder paste inspection ensures that PCBs are made correctly by detecting the solder paste.
High accuracy: intelligent zero reference point technology ensures accurate measurement, especially for PCB board deformation.
High performance: perfect combination of 3D and color-featured algorithm ensures effective detection on solder bridging, solder breakage, icicle, etc.
High speed: flexible choices of multiple optical options, with industry-leading inspection speed and performance.
Strong anti-jamming: effective in detecting PCB with different colors variations.
Automatically adjust inspection specifications for black and white boards.
Fast programming can be achieved with/without Gerber in Window software.
Process optimization: SPC data analysis helps to improve process quality.
Model | Icon | Icon-D | |
Image System | Camera | 5MP/12MP industrial camara | |
Resolution | 5MP: 15μm, 20μm; 12MP: 5.5μm, 10μm, 12μm, 15μm | ||
Height Resolution | 0.37μm | ||
lighting | 3 color ring shape LED (RGB) | ||
Height measurement method | projectors | ||
Movement structure | X/Y movement | AC Servo | |
Platform | Granite | ||
Width adjustment | Automatic | ||
Transport type | Belt | ||
Board loading direction | L to R or R to L | ||
Fixed rail | Single lane: 1st fixed rail; Dual-lane: 1st & 3rd or 1st & 4th fixed rail | ||
Hardware configuration | Operating system | Win10 | |
Communication | Ethernet, SMEMA | ||
Power | Single phase 220V, 50/60Hz, 5A | ||
Air requirement | 0.4-0.6Mpa | ||
Conveyor height | 900±20mm | ||
Overall size | 1000mm*1360*1620mm | ||
Equipment weight | 950kg | 1000kg | |
Board handling | PCB Size | 50*50-510*610mm | Single lane:50*50-510*320mm |
Max pad height | 600μm | ||
Min pad spacing | 100μm (within height of 150μm) | ||
Max solder paster size | 20*20mm | ||
Min solder paster size | 0.1mm | ||
Clamping edge | 3mm | ||
GR&R | ≤10% | ||
Inspection function | Defects | Icicle, insufficient solder, excess solder, average height, offset, solder bridge, odd shape, exposed copper, golden finger, etc. | |
Inspection speed | 400-450ms/FOV | ||
