The Gold Wire Ball Bonder is a crucial device used in the packaging of semiconductor devices, particularly in the process of packaging LED (Light Emitting Diode) chips. Below is a detailed introduction to the applications and working principles of the Gold Wire Ball Bonder in LED packaging.

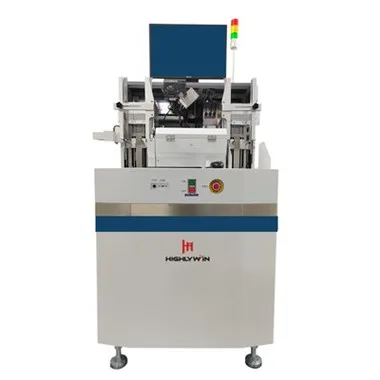

Highlywin Wire Bonder

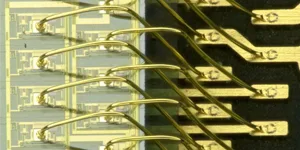

The Gold Wire Ball Bonder works by melting a gold wire into a spherical shape and then using ultrasonic energy to bond these spheres at the intersection of the chip and the lead frame, achieving electrical connections. The specific steps are as follows:
Wiring: The gold wire is fed to the soldering position through a slender ceramic needle known as a “capillary.”
Melting: The end of the gold wire is melted using a high-voltage arc or laser, forming a spherical solder point.
Soldering: The molten gold ball is placed at the designated position on the chip or lead frame, then bonded to the substrate through ultrasonic energy and pressure, creating a stable electrical connection.
LED chips typically require connections between electrodes and external circuits to enable current flow. The applications of the Gold Wire Ball Bonder in LED packaging include:
Connecting Chips and Lead Frames: The electrodes of the LED chip are connected to the lead frame using gold wire to ensure smooth current passage.
High-Precision Soldering: Given the small size of LED chips, the Gold Wire Ball Bonder must have high-precision positioning and soldering capabilities, ensuring accuracy and reliability of the solder points.
High-Temperature Resistance: LED operation generates heat; the gold wire needs excellent high-temperature resistance to maintain stable electrical connections in high-temperature environments.
High Reliability: Gold wire offers excellent conductivity and corrosion resistance, ensuring long-term stability of electrical connections.
High Precision: Gold Wire Ball Bonders are typically equipped with high-precision positioning systems that can achieve micrometer-level soldering accuracy.
Strong Adaptability: Gold Wire Ball Bonders can adapt to various chip sizes and shapes, suitable for different types of LED packaging.
As LED technology continues to evolve, Gold Wire Ball Bonders are also improving and optimizing. Future developments may include:
Thinner Gold Wire: To accommodate smaller-sized LED chips, the gold wire may become thinner, enhancing soldering precision and reliability.
Increased Production Efficiency: By optimizing soldering processes and device designs, production efficiency of Gold Wire Ball Bonders can be enhanced, reducing costs.
Intelligent Control: Implementing intelligent control systems for real-time monitoring and optimization of the soldering process to improve soldering quality.
The Gold Wire Ball Bonder plays a significant role in LED packaging, with its characteristics of high precision, reliability, and strong adaptability making it an ideal choice for LED packaging. With ongoing technological advancements, the Gold Wire Ball Bonder will continue to drive the development of LED packaging technology, providing more reliable support for LED applications across various fields.
