Views: 0 Author: Site Editor Publish Time: 2025-09-24 Origin: Site
For manufacturers and wholesalers seeking high-efficiency SMT (Surface Mount Technology) equipment, the HW series offers five distinct automatic pick-and-place machines tailored to varied production scales, component types, and precision requirements. Below is a detailed overview of these models, highlighting their key features, technical specifications, and ideal use cases.
Speed & Precision: 40,000 CPH (max) with ±0.05mm accuracy.
Key Features:
8 industrial-grade vision cameras for simultaneous multi-head recognition.
Panasonic servo motors + granite base for vibration resistance.
Supports LED strips, bulbs, drivers, and copper wire string lights.
Best For: Small to medium LED lighting manufacturers prioritizing stability and affordability.
Speed & Precision: 42,000 CPH (peak) with ±0.035mm accuracy.
Key Features:
Dual head configuration: 10-nozzle high-speed head (for 0201 components) + 6-nozzle multi-function head (up to 40×40mm parts).
Maglev motion module + linear motors for minimal wear.
Optional MES integration and warpage detection.
Best For: Electronics assembly requiring flexibility (e.g., consumer electronics, automotive).
Speed: 84,000 CPH (dual-arm mode).
Key Innovations:
HW-S5: Dual-lane production (independent/alternate modes) + 2560KG granite base.

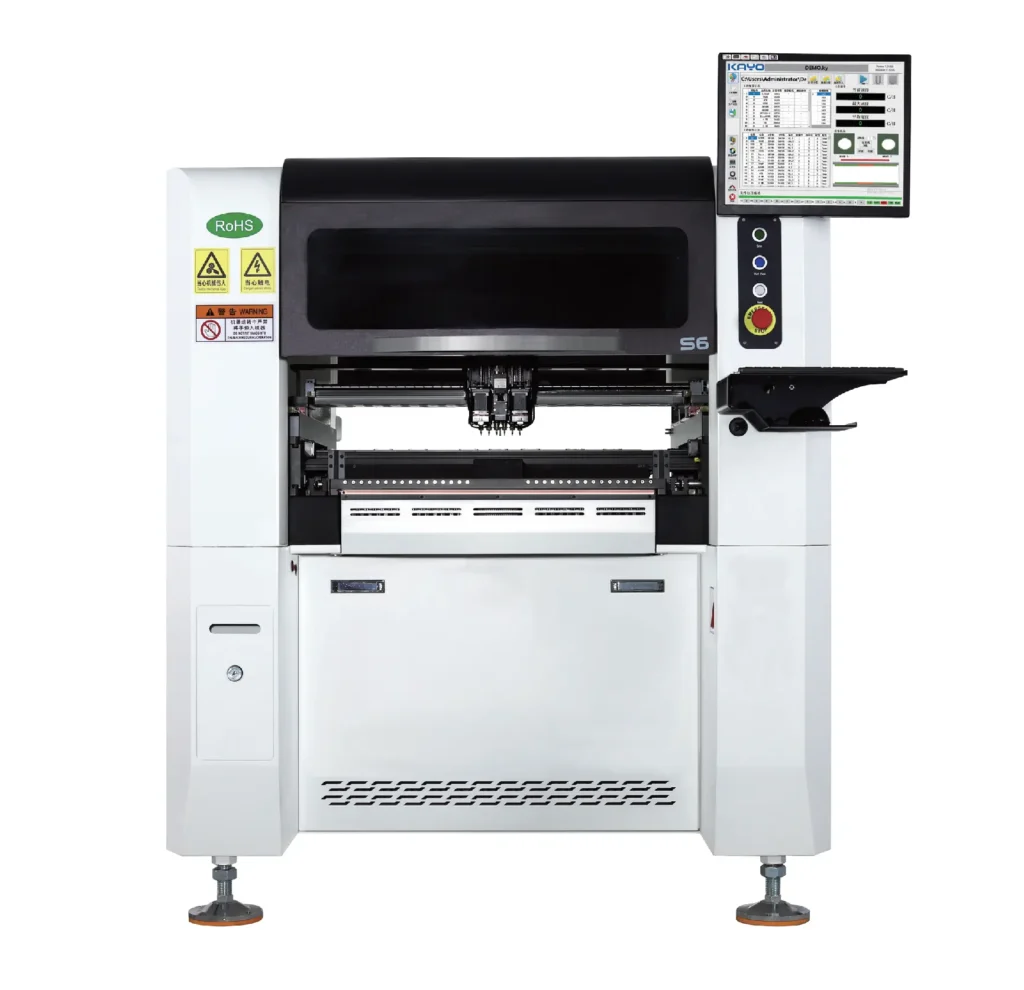

HW-S6: 6-head simultaneous pickup + 5MP/6MP vision system for ultra-fast recognition.
Closed-loop stepper motors and spline guides eliminate backlash.
Best For: Large-scale PCB manufacturers (e.g., telecom, industrial control boards).
Speed & Precision: 12,000 CPH with ±0.05mm accuracy.
Key Features:
Simplified 4-head design (no nozzle changes required).
Supports 0201–1206 components and LED beads.
Budget-friendly with 600KG footprint.
Best For: Startups or SMEs with limited space and moderate throughput needs.
Scalable Configurations: From 60 to 100+ feeder stations, supporting tape, tube, and tray components.
Smart Manufacturing Readiness:
MES compatibility for real-time production monitoring.
AI-driven path optimization and QR-code model switching.
Durability: Heavy-duty linear guides (TBI/HIWIN), Panasonic/Japanese servo motors, and granite bases ensure 10,000+ hour lifespans.
Global Compliance: 220V/380V power options, CE/UL certifications.
LED Lighting: HW-A8 for bulbs/strips; HW-F5/S5 for high-power modules.
Consumer Electronics: HW-F5’s 0201 capability for smartphones/wearables.
Automotive: HW-S6’s warpage detection ensures reliability in harsh environments.
Industrial PCBs: HW-S5’s dual-lane mode for server/control board mass production.
Customization: Mix and match feeder types, vision systems, and software modules.
After-Sales Support: Global service network with 24/7 technical assistance.
Competitive Pricing: Volume discounts for bulk orders (≥2 units).
For wholesale inquiries, contact us to receive tailored quotations, OEM/ODM options, and production line optimization plans. Elevate your manufacturing efficiency with HW’s cutting-edge pick-and-place solutions!
Note: Specifications and configurations are subject to customization based on client requirements. Contact our sales team for detailed technical proposals.
