Wire Bonding And Die Bonder

Wire Bonding and Die Bonding are two critical steps in the semiconductor packaging process, each playing an indispensable role in ensuring the electrical connections and physical stability of the chip. The Die Bonding Machine ensures the initial attachment and thermal management foundation for the chip, while the Wire Bonder is responsible for establishing critical electrical connections. Together, they ensure the performance, reliability, and production efficiency of semiconductor devices. Both steps are essential in the semiconductor packaging process, as they collectively determine the quality and functional integrity of the final packaged product.

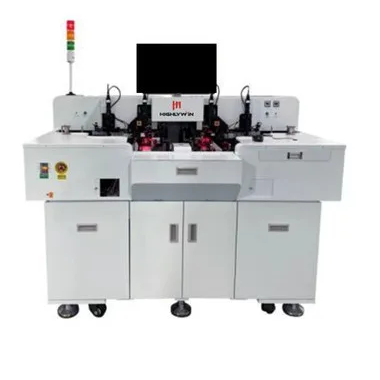

Die Bonding Machine

1. Physical Attachment

Die Bonding is the first step in attaching the bare chip (Die) to the packaging substrate (such as a lead frame or PCB). This ensures that the chip has a stable position during the subsequent packaging process, providing a foundation for the structure of the entire integrated circuit.

2.Thermal Management

By using appropriate adhesive materials (such as epoxy resin, metal alloys, etc.), Die Bonding aids in the thermal management of the chip, ensuring that heat can effectively transfer from the chip to the substrate, preventing overheating.

3. Protection and Support

Die Bonding not only secures the chip but also provides initial mechanical support, protecting the chip from physical shocks, especially during the packaging process and in the final application.

4. Electrical Pathway

Although Die Bonding itself does not directly create electrical connections, it provides the necessary platform for subsequent Wire Bonding or flip chip connections, serving as the starting point for electrical pathways.

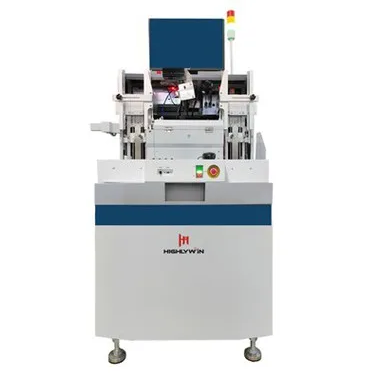

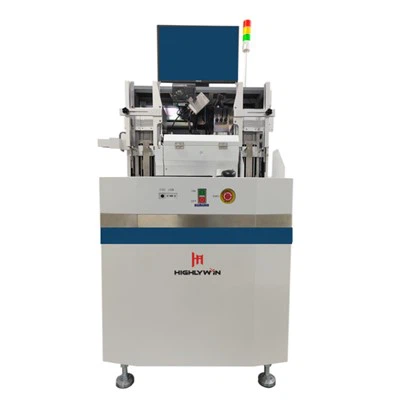

Wire Bonder

1. Electrical Connection

Wire Bonding is a key step in establishing electrical connections between the chip and external circuits. It connects the pads on the chip to the packaging substrate or lead frame using gold, copper, or aluminum wires, ensuring the flow of signals and currents.

2. Reliability

High-quality Wire Bonding is crucial for the long-term reliability of the package. It requires precise control to avoid short circuits, open circuits, or insufficient mechanical strength, ensuring stable operation of the product in actual applications.

3. Flexibility

Wire Bonding technology is applicable to various packaging types, from traditional packaging to more complex 3D packaging. Its flexibility supports different design requirements and cost-effective packaging solutions.

4. Cost-effectiveness

Compared to other connection technologies, such as bump connections for flip chips, Wire Bonding is generally more cost-effective in mass production, and the technology is mature and easy to implement.
