The Ultimate Guide To The SMT Process Flow: From Solder Paste Printing To AOI Inspection

From smartphone processors and medical device control boards to automotive electronic sensors, the creation of this precision hardware relies on Surface Mount Technology (SMT). Compared to traditional Through-Hole Technology (THT), SMT has driven the electronics industry forward with three key innovations:

1. Miniaturization: Component sizes have shrunk to 01005 (0.4×0.2mm), allowing for assembly densities several times higher than THT.

2. High-Level Automation: Top-tier pick-and-place machines can achieve speeds of 250,000 CPH (Components Per Hour) with placement accuracy reaching the ±15μm level.

3. High Reliability: Solder joints formed by reflow soldering offer superior mechanical strength and electrical performance, with consistency far exceeding manual soldering.

SMT Process Flow

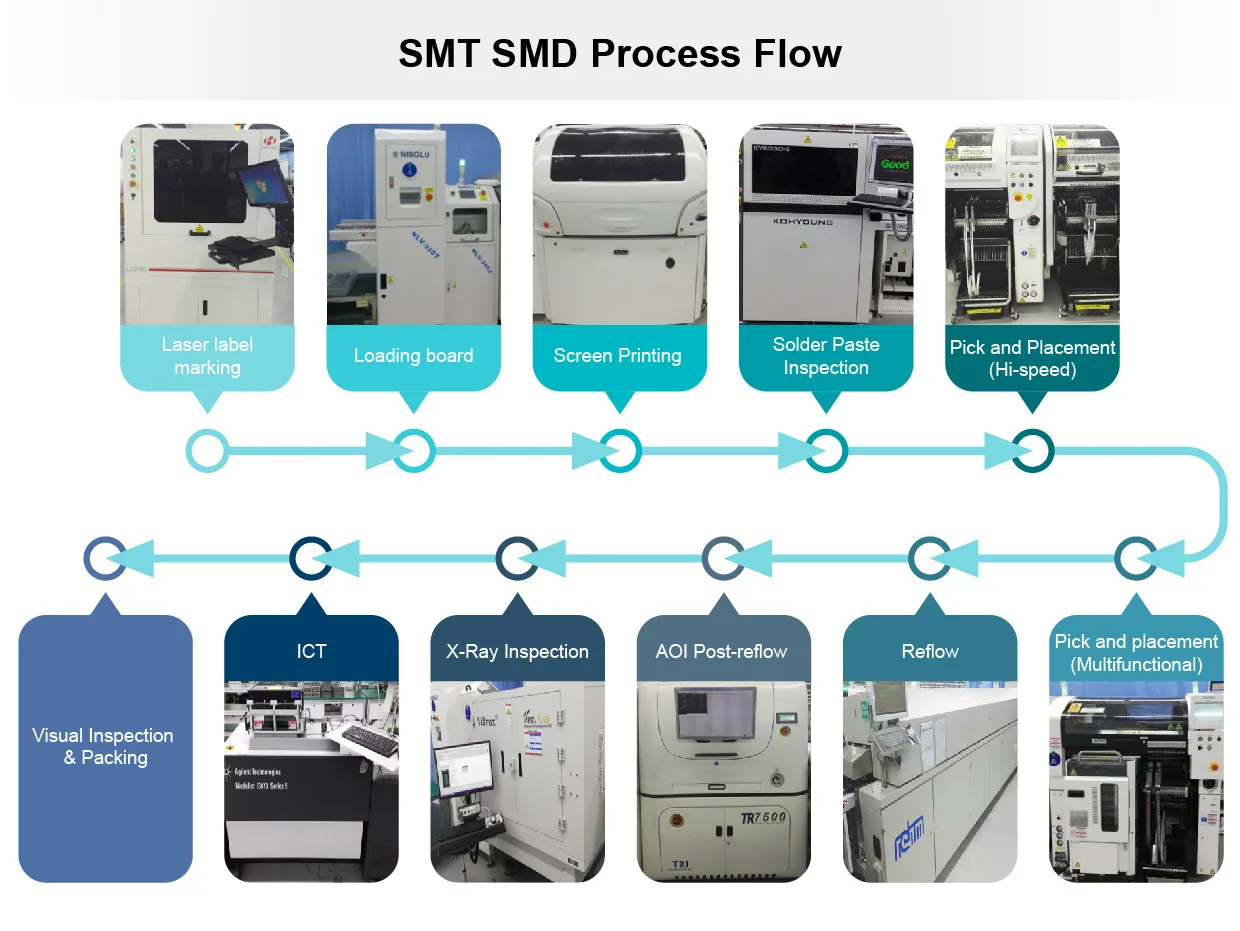

I. SMT Process Flowchart Overview

A complete SMT process operates like a precision assembly line where every stage is critical.

graph LR
   A[PCB Loading
(Loader)] --> B[Solder Paste Printing
(Printer)]
   B --> C[3D SPI
(Solder Paste Inspection)]
   C --> D[Component Placement
(Mounter)]
   D --> E[Reflow Soldering
(Reflow Oven)]
   E --> F[AOI
(Automated Optical Insp.)]
   F --> G{Has BGA/QFN
or other hidden joints?}
   G -- Yes --> H[X-Ray Inspection]
   H --> I[Unloading / Next Process]

G -- No --> I

II. Core SMT Process Steps Explained

Step 1: PCB Loading and Pre-processing

• Key Equipment: Automatic PCB Loader

• Pre-processing Essentials:

1. Baking for Dehumidification: Typically baking at 125°C for several hours to remove moisture from the PCB substrate and components, preventing “popcorning” (delamination) during high-temperature soldering.

2. ESD Protection: The environment must have strict temperature and humidity controls (e.g., 45%-70% humidity), and all personnel must wear ESD wrist straps to protect sensitive components.

Step 2: Solder Paste Printing – Where Precision Dictates Success

This step precisely applies a defined amount of solder paste onto the PCB’s pads, preparing them for component soldering.

Step 3: SPI – The First Line of Defense Against Soldering Defects

SPI (Solder Paste Inspection) uses 3D optical technology to inspect the volume, area, height, and shape of the solder paste on every pad, making it a critical process control point.

# Example logic for a solder paste inspection pass/fail check
def check_paste(paste_data):
    # Note: Thresholds are defined by specific product and process requirements.
    height_ok = 0.08 <= paste_data.height <= 0.15 # in mm volume_ok = paste_data.volume_percent >= 70
    area_ok = paste_data.area_coverage >= 80
    if height_ok and volume_ok and area_ok:
        return "PASS"
    else:
        # Trigger an alarm and prompt for stencil cleaning or parameter adjustment
        return "FAIL - Trigger Alarm"

Industry statistics show that SPI can prevent over 70% of potential soldering defects caused by poor solder paste printing.

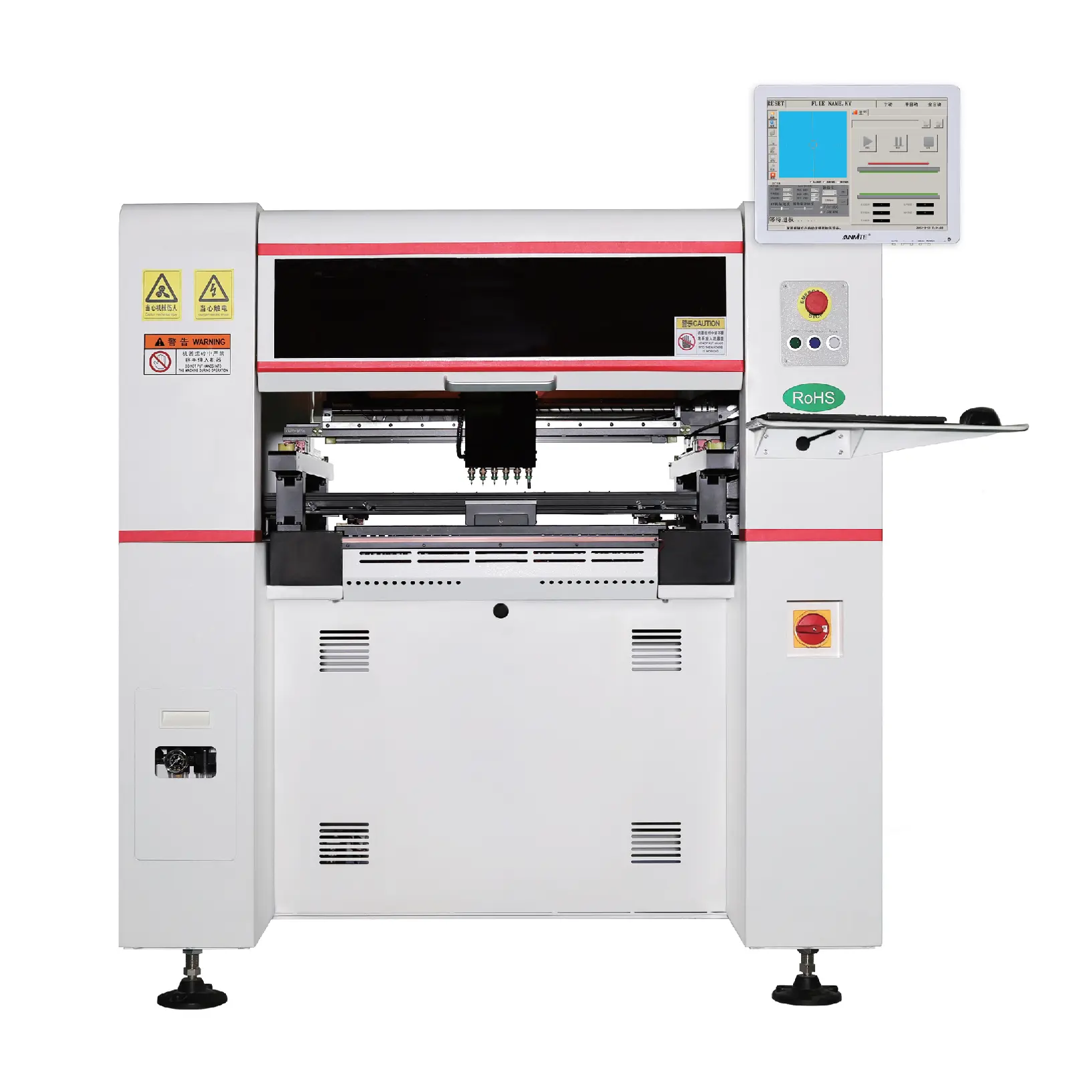

Step 4: Component Placement – A Game of Micron-Level Accuracy

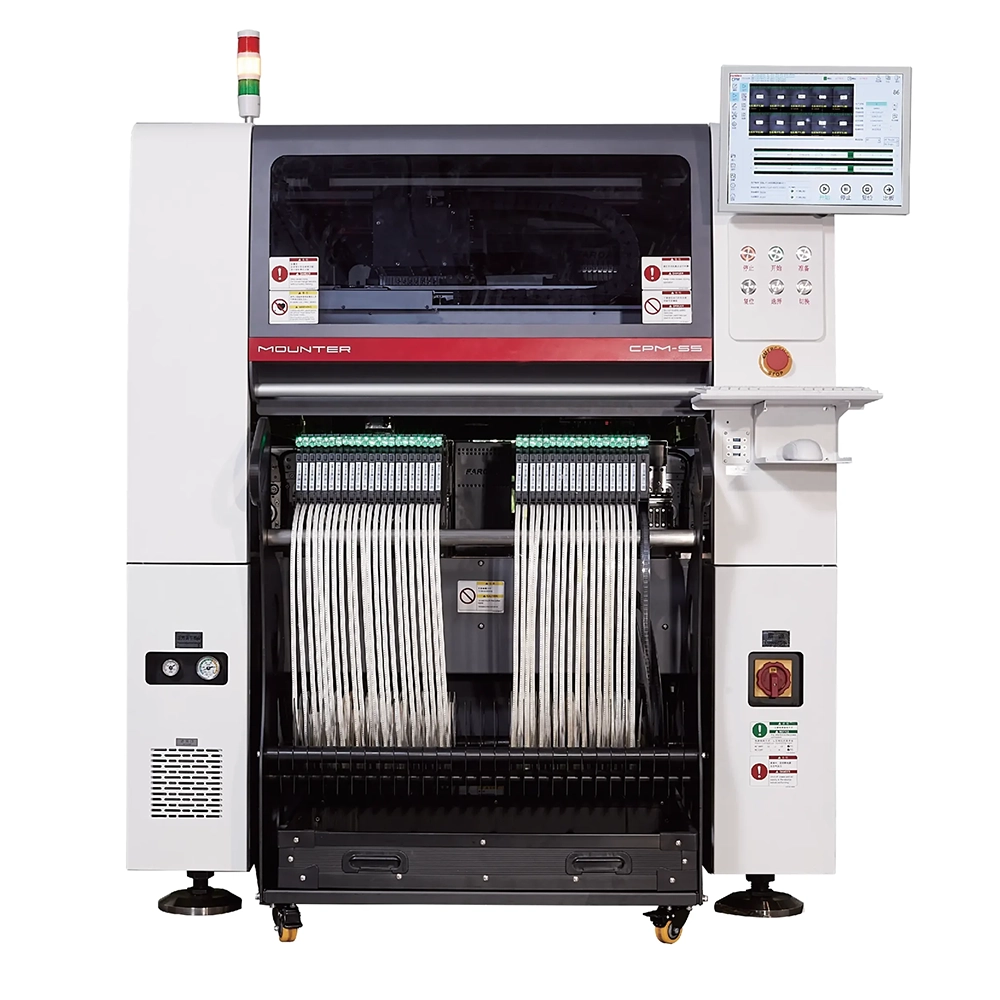

• Key Equipment: Pick-and-Place Machine (or Mounter), available as high-speed chip shooters and high-precision flexible mounters.

• Core Technologies:

1. Vision Alignment: Uses cameras to recognize fiducial marks on the PCB and component leads for high-precision placement (common accuracy is ±0.05mm).

2. Nozzle Technology: Automatically changes nozzles based on component size and shape, picking them up with a vacuum system.

• Error-Proofing: Verifies component information by scanning barcodes on feeders to prevent wrong parts; uses on-the-fly cameras or laser sensors to check component orientation, preventing tombstoning or polarity reversal.

Step 5: Reflow Soldering – The Art of the Thermal Profile

The PCB, with components placed on it, travels through a tunnel-like oven with multiple heating zones. The solder paste melts and then cools to form reliable electrical and mechanical connections.

An Ideal Thermal Profile (Example for lead-free SAC305 solder):

graph TD
    A(Entry) --> B[Preheat Zone
Ramp to 150-180°C
60-90s]
    B --> C[Soak / Activation Zone
Hold at 180-220°C
60-120s]
    C --> D[Reflow Zone
Peak Temp 240-250°C
45-60s above liquidus]
    D --> E[Cooling Zone
Cooling Rate < 4°C/s]
    E --> F(Exit)

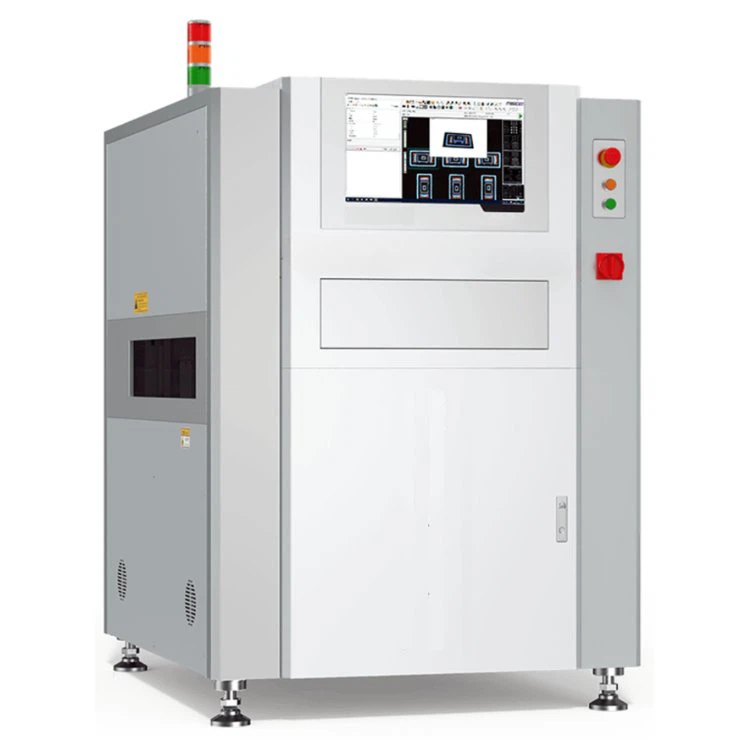

Step 6: AOI – The Intelligent Vision Inspector

AOI (Automated Optical Inspection) is performed after reflow to automatically inspect the PCBA for soldering defects.

• Defects Detected: Missing components, wrong parts, reversed polarity, component shift, tombstoning, bridging, solder balls, and insufficient solder.

• Technological Evolution: Modern AOI systems increasingly use AI algorithms based on deep learning. Trained on vast libraries of defect images, they significantly improve detection accuracy and reduce false calls.

Step 7: X-Ray Inspection (for Hidden Solder Joints)

For components like BGAs, QFNs, and LGAs with solder joints underneath the package, AOI is ineffective. X-ray inspection can penetrate the chip to clearly visualize the internal solder ball connections.

• Key Inspection Points: Solder shorts, open circuits (non-wets), and the size and percentage of voids (e.g., IPC standards may require voiding to be <25%).

III. Single-Sided vs. Double-Sided SMT: A Process Comparison

Depending on the product design, PCBAs can be single-sided or double-sided, with the latter involving a more complex process.

IV. SMT Defect Analysis and Quality Fortification

Top 4 Defect Solutions

The Twin Pillars of Quality Systems

1. DFM (Design for Manufacturability)

Considering manufacturing process limitations during the product design phase, such as component spacing, pad design, and fiducial placement.

2. IPC Standard Implementation

Adhering to internationally recognized electronics assembly standards, such as IPC-A-610 (Acceptability of Electronic Assemblies) and J-STD-001 (Requirements for Soldered Electrical and Electronic Assemblies).

V. Emerging Trends in SMT

1. Smart Factory & Industry 4.0: Connecting all equipment via an MES (Manufacturing Execution System) for real-time data monitoring, traceability, and intelligent decision-making to optimize OEE (Overall Equipment Effectiveness).

2. Fine-Pitch and Heterogeneous Integration: Increasing demands for assembling sub-01005 components and high-density SiP (System-in-Package) modules.

3. Green Manufacturing: Use of low-VOC or no-clean fluxes and energy-efficient equipment to reduce environmental impact.

When a high-density motherboard with thousands of components flows efficiently down an SMT line, it represents a perfect fusion of materials science, precision engineering, optics, and software. Mastering the core SMT process is the key to entering the world of modern electronics manufacturing. Only by continuously embracing technological innovation can one thrive on this path of constant improvement.

Appendix: Frequently Asked Questions (FAQ)

Q1: How do you choose a pick-and-place machine?

A: Key metrics include theoretical speed (CPH), real-world throughput (UPH), placement accuracy (μm), supported component range, and changeover time. The choice depends on a comprehensive evaluation of product type and production volume.

Q2: Is the adhesive (red glue) process obsolete?A: In mixed-technology assembly (SMT + THT) requiring wave soldering, the adhesive process is still indispensable for securing SMT components. However, it is rarely used in purely double-sided reflow processes.

Q3: Is 100% SPI inspection necessary?A: For high-reliability products (e.g., automotive, medical, aerospace) and high-density, fine-pitch PCBAs, 100% SPI is mandatory. The automotive industry often requires a process capability index (Cpk) of ≥ 1.67, which signifies an extremely low potential defect rate that can only be assured through 100% inspection.

Q4: How can reflow oven energy consumption be optimized?A: Modern reflow ovens can be over 30% more energy-efficient than older models by using multi-stage heat recovery systems, improved insulation materials, and intelligent standby modes.
