Framed SMT Stencils

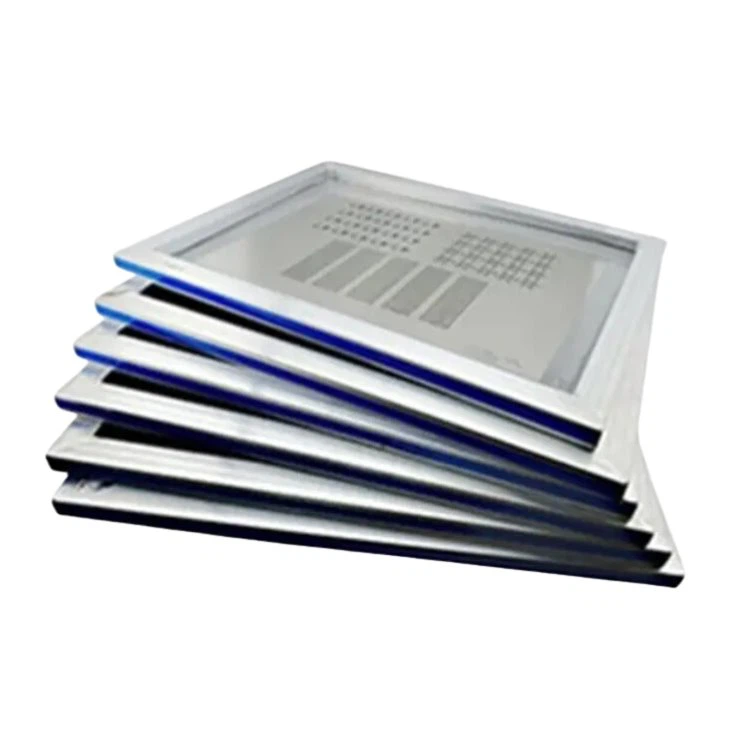

Framed SMT Stencils or glue-in stencils are laser cut solder paste stencil foils permanently mounted in a stencil frame using a mesh border to tightly stretch the stencil foil taut in the frame. Framed SMT Stencils are designed for high-volume screen printing on printed circuit boards.
All our laser-cut stencils provide optimum solder paste volume control.
We also have a full range of pneumatic stencils, please get in touch with us to discuss your request.
Foils are permanently mounted into aluminum frames.
Provide optimum solder paste volume control.
The large variety of standard frames for every printer.
Unique process for smooth aperture walls.
Very Clean Laser-Cut Apertures
Excellent Print Performance
Excellent for High-Volume Stencil Printing on printed circuit boards
Unique Process Creates Permanent Non-Removable Non-Fading Fiducial.
All Framed SMT Stencils are Double Bonded to Extreme Wear.
Thickness: 0.1/0.12/0.13/0.15/0.18mm, special thickness: 0.2-0.3mm
PCB or GERBER file is needed for customized.
High precision cutting process.
Adopts SUS304 spring steel sheet.
A multitude of different frame materials, frame colors, and sizes are available in the BEST SMT framed stencil product line.
Item No. | Stencil Size (W*L) | GW(KG)/Piece |
1 | 30.0*40.0cm | 1 |
2 | 37.0*47.0cm | 1.5 |
3 | 42.0*52.0cm | 1.8 |
4 | 45.0*55.0cm | 2 |
5 | 58.4*58.4cm | 3.2 |
6 | 55.0*65.0cm | 3.5 |
| 7 | 73.6*73.6cm | 5 |
8 | 40.0*60.0cm | 2.5 |
9 | 40.0*80.0cm | 3.5 |
10 | 40.0*100.0cm | 4 |
11 | 50.0*80.0cm | 3.5 |
12 | 40.0*120.0cm | 6 |
13 | 40.0*140.0cm | 7 |
14 | 50.0*70.0cm | 3.5 |
15 | 50.0*120.0cm | 7 |
16 | 50.0*140.0cm | 8 |
