Odd Form Component Insertion Machine HWF-60
Odd Form Component Insertion Machine Advantages

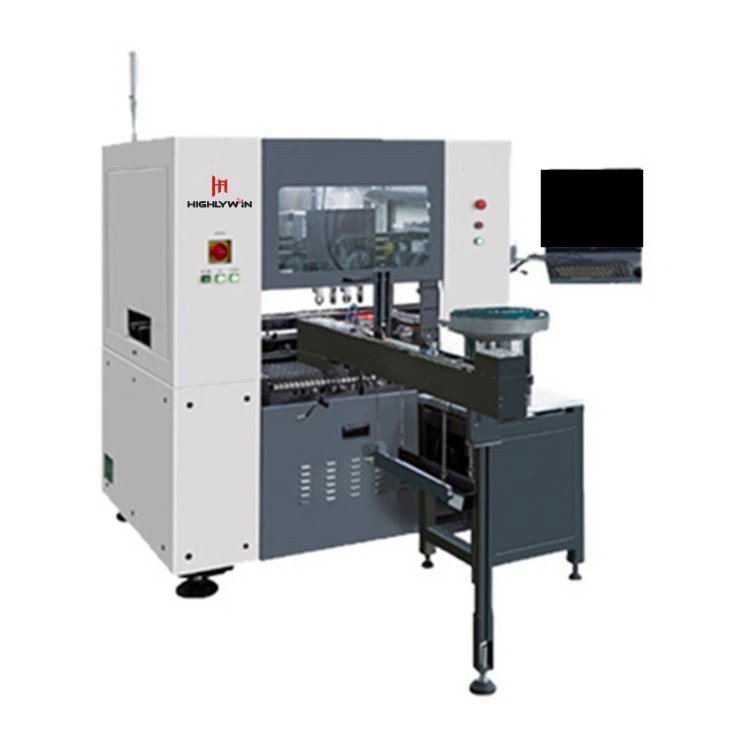

The HWF-60 series machine, the latest and most practical odd form insertion machine, easily help SMT factory realize odd form shape components insertion automation.
Independent of the number of sets of servo control system and high-precision visual capture system, complete the high and stable performance of the insertion to achieve high speed and high density of the perfect effect.
The system can be upgraded for your equipment to update and speed up the laying of a good foundation for a simple and easy-to-understand operating platform to achieve the dialogue of the human-computer interface, the combination of practical experience and scientific theories to bring you to the quality of the product and the enhancement of production efficiency.
Odd Form Component Insertion Machine Features
Instead of manual work, save labor cost.
Compact machine size can be easily integrated into SMT production line.
Theoretical speed up to 6000 points/hour, high efficiency, and productivity.
Simple operation, easy programmed, stable, and reliable.
Flexible deployment of production
Bottom maintenance cost.
Modular design according to different feeding methods to provide various feeding solutions. According to production requirements to provide flexible configuration, to meet pin components, irregular components of continuous feeding.
Grippers and nozzles can be customized for various types of shaped components, easy for replacement.
Windows based software, full English interface, easy to operate.
Model |
HWF-60 |
Theoretical speed |
Approx. 6000 CPH |
Insertion direction |
0°-360°, 1° increment |
Insertion head |
4 |
PCB size |
50x50mm – 500x400mm |
PCB thickness |
0.59-2.36mm |
Component spec |
Max height: 50mm, max weight 0.3kg |
Feeder access |
6 |
Feeder |
Optional: taped feeder, tube feeder, auto pallet feeder, vibrate bowl |
Machine dimension |
1400x1500x1600mm |
Power supply |
AC220V, single phase, 50/60HZ |
Air supply/ consumption |
0.6-0.8Mpa / 0.3M⊃3; /min |
Camera 1 Hole position correction |
Vision system, multi-point MARK vision |
Camera 2 |
Lead tip recognition |
Drive system |
AC servo motor |
Data input mode |
USB port (EXCEL file) |
