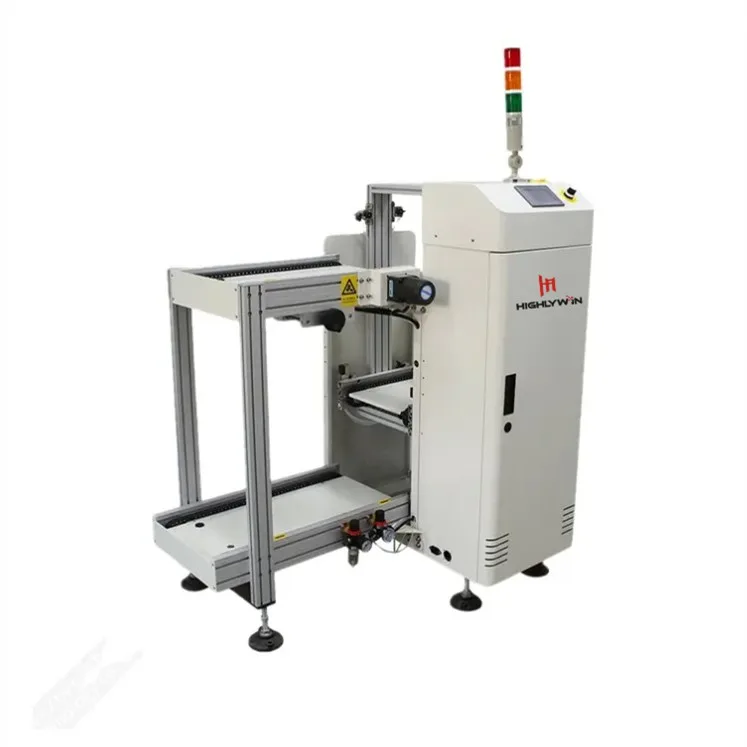

SMT Automatic PCB Loader Advantages

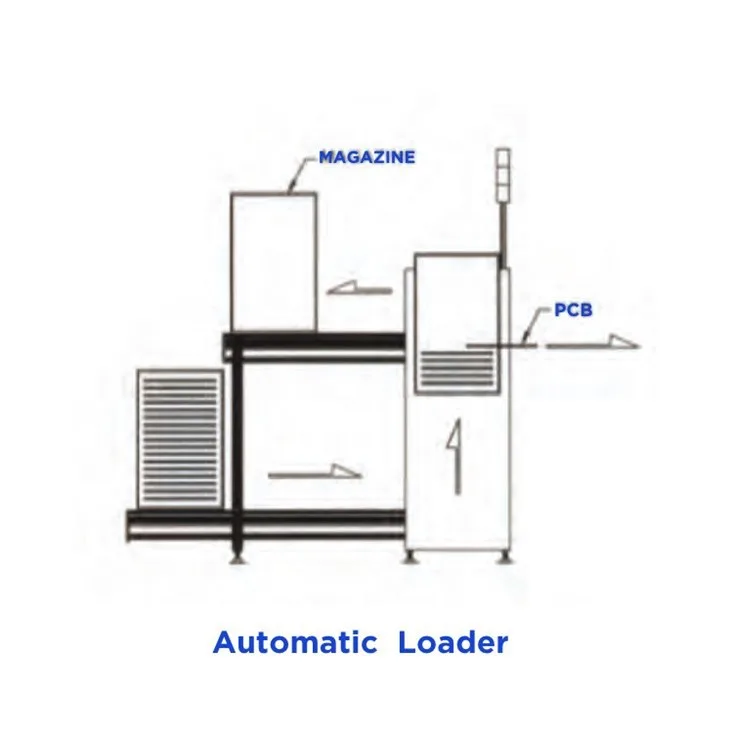

This series loader is designed for automatic loading of PCBs in SMT production lines. The unit loads PCB automatically after receiving the board signal from the host, push the PCB’s out of a magazine rack onto the conveyor of the downstream machine. Connect with SMT and AI machines, safety design ensure no PCB broken when it is pushed.
With easy operation, high accuracy, automatic counting, fault alarm functions, it is needed for a full range of automation equipment.
The machine frame adopts high-strength iron plate, aviation aluminum profile, stable and strong.
PLC program control system.
Selectable pitch setting(10,20,30,40mm).
Lifting adopts servo motor and precision ball screw, with high accuracy.
Special gas circuit design guaranty no PCB breakage.
Automatically diagnosing fault code display function.
User-friendly “soft touch” LED membrane control panel.
Loading and unloading magazine pneumatic clamps ensure more accurate positioning of the magazine.
Standard SMEMA communication interface can communicate with other automation equipment, and SMEMA cables are included.
Transport Height: 900 ± 20 mm (or customized)
Transfer Direction: Left to Right (option: Right to Left)
Power Supply: AC1P 110V or 220V
Power: Max 300 VA
Air Supply: 4-6 bar, 10 ltr/min max
PCB Loading Time: Approx. 6s (specify if needed)
Magazine Change-over Time: Approx. 30s (specify if needed)
Magazine Position Number: 3 pcs (upper 1, lower 2)
Magazine Rack Slots: 50 pcs
Model: HL250
Dimension: 1330 x 765 x 1250 mm
PCB Size: 50 x 80 – 330 x 250 mm
Rack Size: 355 x 320 x 563 mm
Weight: 140 kg
Model: HL330
Dimension: 1650 x 845 x 1250 mm
PCB Size: 50 x 80 – 445 x 250 mm
Rack Size: 460 x 400 x 563 mm
Weight: 200 kg
Model: HL390
Dimension: 1800 x 909 x 1250 mm
PCB Size: 50 x 80 – 530 x 390 mm
Rack Size: 535 x 460 x 563 mm
Weight: 240 kg
Model: HL460
Dimension: 2065 x 1230 x 1250 mm
PCB Size: 50 x 80 – 610 x 460 mm
Rack Size: 630 x 530 x 563 mm
Weight: 350 kg
