Surface Mount Technology (SMT) has transformed modern electronics manufacturing by enabling the precise, high-speed assembly of components directly onto printed circuit boards (PCBs). As a leading provider of SMT machines, AI equipment, peripherals, and comprehensive service support, Highlywin delivers one-stop SMT solutions tailored for global clients in industries ranging from consumer electronics to automotive and telecommunications. This comprehensive guide explores the essential SMT machines required for efficient PCB assembly, detailing their functions, features, and integration into production lines to help manufacturers optimize their operations.
SMT machines form the backbone of contemporary PCB production, allowing for smaller, more reliable, and cost-effective assemblies compared to traditional through-hole methods. These advanced SMT machines automate critical processes like solder paste application, component placement, soldering, and inspection, drastically reducing labor costs and improving yield rates. Highlywin specializes in sourcing, selling, and servicing a wide array of SMT machines, ensuring clients receive reliable equipment backed by expert support and spare parts availability.
The evolution of SMT machines has been driven by demands for miniaturization, higher component densities, and faster time-to-market. Modern SMT machines incorporate AI-driven vision systems, IoT connectivity, and predictive maintenance features, making them indispensable for Industry 4.0 factories. Whether you're setting up a prototype line or scaling to high-volume production, selecting the right SMT machines is crucial for success. Highlywin's portfolio includes top-tier SMT machines from brands like Juki, Yamaha, and Panasonic, customized to meet diverse production needs.
Solder paste printers are among the first and most critical SMT machines in any PCB assembly workflow. These SMT machines use stencils to apply viscous solder paste onto PCB pads with micron-level precision, creating the foundation for strong electrical and mechanical joints. Semi-automatic SMT machines are ideal for low-volume or R&D environments, while fully automatic models excel in high-throughput scenarios, achieving cycle times as low as 6 seconds per board.
Highlywin offers state-of-the-art SMT machines such as the PTR-B500 series, equipped with dual-camera vision alignment and 3D solder paste inspection (SPI) capabilities. These features in SMT machines detect volume, height, and positional deviations in real-time, preventing defects like insufficient solder or bridging before they propagate downstream. Stencil registration accuracy in these SMT machines reaches ±10 microns, ensuring compatibility with fine-pitch components down to 0.3mm.
Advanced SMT machines in this category also support automatic stencil cleaning and changeover systems, minimizing downtime between jobs. For manufacturers dealing with high-mix production, Highlywin's modular SMT machines allow quick adaptation to varying board sizes from 50x50mm to 510x600mm. Integration with upstream PCB loaders and downstream conveyors creates a seamless flow, where SMT machines communicate via SMEMA or MES protocols to synchronize operations.
No discussion of essential SMT machines is complete without pick-and-place (P&P) machines, which handle the precise mounting of surface-mount devices (SMDs) onto PCBs. These SMT machines use vacuum nozzles, vision systems, and robotic heads to pick components from tape, tray, or tube feeders and place them at speeds exceeding 50,000 chips per hour (CPH). Highlywin's Juki-based SMT machines, such as the RX-series, support everything from 01005 micro-resistors to large QFNs and BGAs.
High-speed turret or linear gantry SMT machines from Highlywin feature multi-head configurations—up to 12 heads—for parallel processing, balancing speed and flexibility. Intelligent feeder systems in these SMT machines auto-calibrate and verify component presence, reducing placement errors to below 5ppm. Vision algorithms powered by AI distinguish polarity, confirm orientation, and even identify subtle defects like bent leads.
For high-mix environments, Highlywin's SMT machines offer quick-swap feeder banks and offline programming, enabling changeovers in under 30 minutes. These SMT machines also integrate with line optimization software, dynamically adjusting placement sequences to avoid bottlenecks. Whether prototyping a single board or running 24/7 mass production, Highlywin's versatile SMT machines scale effortlessly, supported by global spare parts inventory.
Reflow ovens represent another cornerstone among SMT machines, where controlled heating melts solder paste to form reliable joints. Highlywin supplies multi-zone convection reflow SMT machines like the 12-zone RF-C1235C, capable of handling lead-free profiles up to 300°C with nitrogen atmospheres to prevent oxidation. These SMT machines feature extended cooling zones to minimize thermal shock, ensuring flatness for subsequent processes.
Profile optimization is key; modern SMT machines allow real-time monitoring via thermocouples and auto-adjustments for board warp or component sensitivity. Highlywin's SMT machines support diverse profiles for mixed assemblies, including low-temperature solders for flex circuits. Flux management systems in these SMT machines recover residues, extending belt life and maintaining clean operations.
In high-volume lines, inline reflow SMT machines synchronize with upstream placers via edge clamping or mesh belts, processing boards up to 700mm wide. Highlywin provides validation services, including thermal profiling and DOE analysis, to certify SMT machines performance against IPC standards.
Quality control via inspection SMT machines is non-negotiable in PCB assembly. Solder Paste Inspection (SPI) SMT machines precede placement, using 3D laser or structured light to verify paste deposits. Post-reflow, Automated Optical Inspection (AOI) SMT machines scan for misalignments, bridges, or voids at speeds matching production lines.
Highlywin's inline 3D SPI/AOI SMT machines achieve resolutions down to 1 micron, with AI classifying defects by severity for automated rework prioritization. For hidden solder joints, X-ray inspection SMT machines penetrate BGAs and QFNs, detecting voids or head-in-pillow issues. These SMT machines generate detailed SPC data, enabling continuous process improvement.
Integration is seamless; feedback loops from inspection SMT machines pause upstream SMT machines if defects exceed thresholds, preserving yield. Highlywin offers turnkey AOI/SPI packages, including programming from Gerber files and operator training.

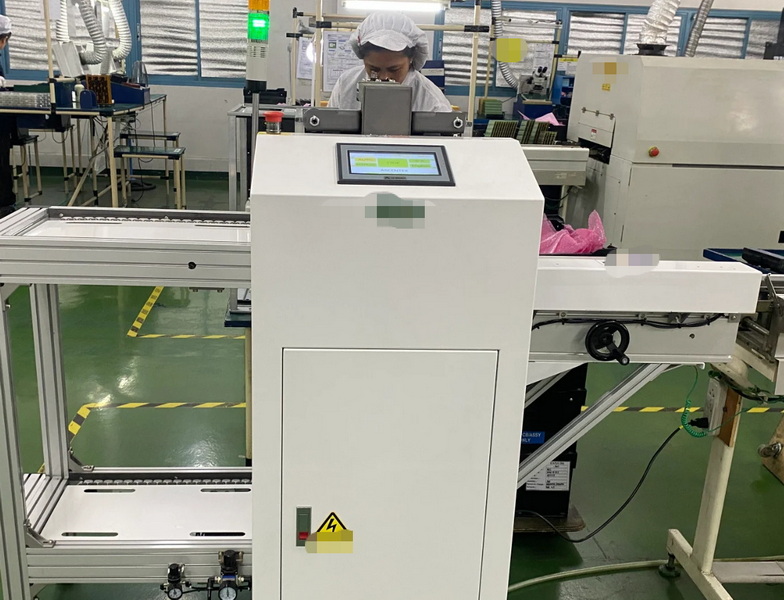

Efficient material handling ties SMT machines together. Loaders, unloaders, conveyors, and inverters from Highlywin automate board transport, supporting SMEMA/Hermes protocols. These SMT machines handle dual-lane, dual-speed operations for unbalanced lines, with features like automatic width adjustment and fiducial alignment.
Glue dispensers and epoxy printers prepare boards for bottom-side SMDs pre-reflow. Highlywin's jetting SMT machines dispense dots as small as 0.2mm at 300,000 dots/hour. Wave soldering SMT machines complement for THT hybrids, with selective nozzles for pin-in-paste processes.
Testing SMT machines like ICT and flying probe verify functionality post-assembly. Rework stations with IR/ hot air handle BGA removal/reballing precisely.
Balancing SMT machines across the line maximizes OEE. Highlywin engineers simulate workflows using tools like Valor or ASE, identifying bottlenecks in SMT machines throughput. MES integration across SMT machines enables traceability from paste to test.
Predictive maintenance in smart SMT machines uses IoT sensors to forecast feeder jams or nozzle wear. Energy-efficient SMT machines reduce costs by 20%, with variable-speed fans and insulated zones.
Industry 4.0 elevates SMT machines with cobots for tending, 3D printing for jigs, and flexible mounters for odd-forms. Highlywin's 8K-head SMT machines target 0201 chips, while AI self-learns optimizations.
Future SMT machines will embrace 5G connectivity and edge computing for zero-defect lines.
The essential SMT machines—from printers and placers to ovens and inspectors—form a symphony of precision that powers modern PCB assembly. Highlywin's comprehensive ecosystem of SMT machines, backed by service, spares, and expertise, empowers global manufacturers to achieve superior quality and efficiency. Partner with Highlywin for scalable, future-ready SMT solutions that drive your production forward.
Core SMT machines include solder paste printer, pick-and-place machine, reflow oven, AOI, and conveyors. Highlywin bundles these for rapid deployment.
Highlywin SMT machines leverage AI vision, auto-setup, and MES integration, reducing cycle times by up to 30% while minimizing errors.
Yes, Highlywin maintains a global inventory of spares for major SMT machines brands, ensuring 24/7 availability and fast shipping.
Highlywin provides installation, training, preventive maintenance, upgrades, and remote diagnostics for all SMT machines.
Yes, modular feeders and rapid changeover features in Highlywin SMT machines support 100+ jobs per day with minimal setup.
