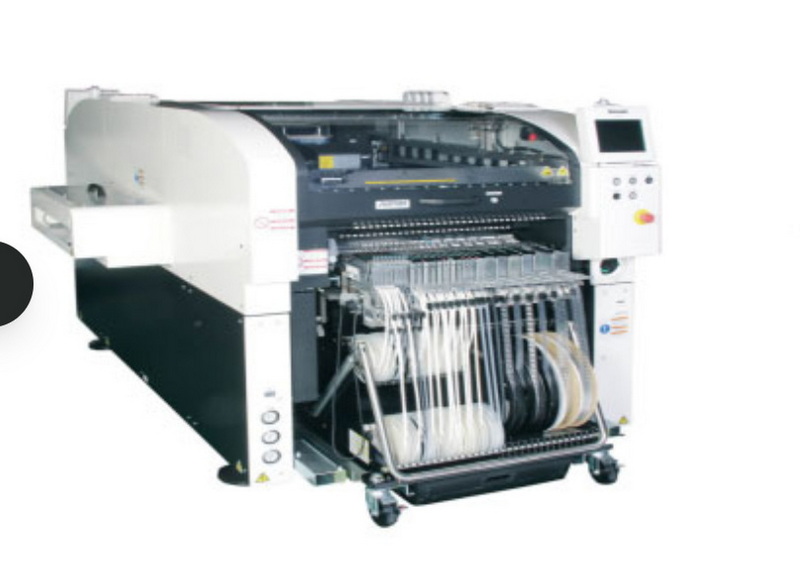

SMT spare parts, frequently referred to as SMT Accessories, play a pivotal role in ensuring the smooth operation of Surface Mount Technology (SMT) production lines worldwide. Highlywin, a premier provider of SMT/AI/peripheral equipment, comprehensive service support, and a wide range of SMT Accessories, delivers one-stop SMT solutions tailored for global clients. This in-depth guide explores troubleshooting strategies for common issues with essential SMT Accessories such as nozzles, feeders, conveyors, stencils, vision systems, and pick-and-place heads, empowering technicians to minimize downtime and maximize efficiency.
In the fast-paced world of electronics manufacturing, SMT Accessories are the unsung heroes that keep assembly lines running at peak performance. These components—including precision nozzles for component placement, intelligent feeders for tape handling, robust conveyor systems for PCB transport, high-quality stencils for solder paste application, advanced vision cameras for inspection, and durable pick-and-place heads—must withstand rigorous daily use. When problems arise with SMT Accessories, they can lead to production halts, defective boards, and significant financial losses.
Understanding the intricacies of SMT Accessories troubleshooting begins with recognizing that most failures stem from three primary causes: mechanical wear, contamination from dust or residue, and improper calibration or alignment. For instance, in high-volume SMT lines, nozzles as key SMT Accessories experience constant vacuum cycles, leading to O-ring degradation over time. Similarly, feeders in SMT Accessories setups jam due to inconsistent tape tension or sensor drift. Highlywin addresses these challenges by stocking genuine, high-durability SMT Accessories compatible with leading brands like Yamaha, Fuji, Panasonic, and Juki, ensuring seamless integration and rapid replacement.
Proactive troubleshooting of SMT Accessories not only restores functionality but also extends equipment lifespan. Technicians should maintain detailed logs of SMT Accessories performance metrics, such as pick rates, error codes, and cycle counts, to predict and prevent failures. By integrating these practices, manufacturers can achieve uptime rates exceeding 99%, a benchmark Highlywin helps clients reach through its global support network.
Nozzles represent one of the most frequently replaced SMT Accessories due to their direct contact with components. Common problems include vacuum failure, component slippage, physical damage, and misalignment during placement.
Vacuum failure in SMT Accessories nozzles manifests as "low vacuum" alarms, dropped parts, or inconsistent pick-up rates. This issue often arises from clogged air filters, worn or cracked O-rings, or blockages in the nozzle shaft. To troubleshoot, start by visually inspecting the nozzle tip under magnification for debris. Use compressed air to blow out internal channels, followed by ultrasonic cleaning in isopropyl alcohol for thorough decontamination. Measure vacuum pressure—it should typically hold between 0.5 to 0.6 bar for standard SMT Accessories nozzles handling chips from 0201 to 1206 sizes. If pressure drops persist, replace O-rings, which are inexpensive yet critical SMT Accessories components available from Highlywin.
Physical wear and damage to nozzle tips prevent secure gripping, especially for delicate SMT Accessories applications like QFN or BGA packages. Chips, bends, or elongated tips result from mishandling or picking oversized components. Always match nozzle diameter precisely: a 1.0mm nozzle for 0402 resistors, for example. Rotate nozzle inventory regularly, replacing after 10,000 to 20,000 cycles depending on production volume. For advanced diagnostics, test nozzles on a vacuum bench to simulate machine conditions.
Misalignment in SMT Accessories nozzles often couples with head rotation errors, causing tombstoning or offset placements. Calibrate Z-axis height and theta alignment using machine software, ensuring tolerances under 0.05mm. Highlywin's precision-engineered SMT Accessories nozzles feature enhanced materials like ceramic composites for superior wear resistance in demanding environments.
Feeder units, vital SMT Accessories for component supply, frequently encounter tape jams, misfeeds, and sensor errors that disrupt SMT workflows.
Tape feeding errors in SMT Accessories feeders typically stem from improper tension settings, sprocket wear, or cover tape adhesion issues. Symptoms include erratic advancement, "no pick" alarms, or empty pockets at the pick point. Begin troubleshooting by powering down the machine and removing the tape reel. Clean sprockets and rollers with lint-free wipes soaked in IPA, then inspect for burrs or flat spots—worn sprockets must be replaced to maintain pitch accuracy within 0.1mm. Adjust peel angle to 10-15 degrees and tension arm deflection to 5-10g for optimal SMT Accessories performance.
Sensor malfunctions plague feeders in dusty SMT Accessories environments. Optical sensors misread tape ends or splices due to lens contamination, while presence sensors fail from misalignment. Wipe sensors gently with microfiber cloths and recalibrate sensitivity via the feeder interface. For intelligent SMT Accessories feeders, update firmware to the latest version, as older software often ignores splice detection. Table of common feeder fixes:
| Feeder Issue | Primary Cause | Step-by-Step Fix |
|---|---|---|
| Tape Jam | Sprocket wear | Clean, inspect, replace if damaged |
| No Pick Error | Sensor dirt | Wipe lenses, recalibrate sensitivity |
| Splice Misread | Tension imbalance | Adjust peel angle to 10-15 degrees |
| Empty Pocket | Pocket pitch error | Verify calibration with test tape |
Double-check feeder insertion depth and empty status signals before resuming operation. Highlywin supplies plug-and-play SMT Accessories feeders with extended warranties, reducing changeover times by up to 50%.
Conveyor systems, essential SMT Accessories for PCB handling, suffer from jams, belt slippage, tilting, and sensor faults that bottleneck production.
Jams and PCB tilting occur from accumulated residue on rails, misadjusted edge clamps, or faulty width sensors. Clean rails daily with non-abrasive brushes and lint-free cloths, applying minimal silicone lubricant to guide rails. Set conveyor width to board dimensions plus/minus 0.5mm, and verify clamp pressure at 2-3kg to prevent board warp without crushing. Inspect photocell sensors for obstructions—debris as small as 0.2mm can trigger false stops.
Belt wear in SMT Accessories conveyors leads to slippage and uneven transport speeds. Examine mesh belts for cracks, fraying, or glazing every 500 hours of operation; replace proactively to avoid catastrophic failures. Clogged air cylinders cause pressure drops—clean filters weekly and test at 4-6 bar. Vibration analysis reveals loose mounting bolts; torque to manufacturer specs (typically 20-30 Nm).
For multi-lane SMT Accessories setups, synchronize speeds via PLC controls and align all segments coplanar within 0.1mm. Highlywin's modular conveyor SMT Accessories support easy retrofits for diverse line configurations.
Stencils and printers, precision SMT Accessories, demand meticulous care to avoid print defects like insufficient paste, bridging, or smearing.
Clogging and bridging plague stencil apertures from dried paste residue or stencil warpage. Clean stencils after every 50 prints using automated wipe-down systems or manual under-stencil wipes with low-residue fluids. Plasma cleaning every 200 prints enhances release properties for fine-pitch SMT Accessories stencils (down to 0.3mm apertures). Inspect for warpage with a flatness gauge—deviations over 0.05mm require laser correction or replacement.
Alignment issues arise from poor board fiducials or vacuum support failures. Employ automated pin or vision alignment for sub-25-micron accuracy. Reduce squeegee pressure to 1-2kg/cm and speed to 20-40mm/s to prevent excess paste extrusion. For high-volume SMT Accessories lines, integrate stencil inspection cameras to detect bridging pre-reflow.
Vision components, high-tech SMT Accessories, falter from dirty optics, calibration drift, or lighting inconsistencies.
Dirty lenses distort fiducial recognition, leading to offsets. Clean with compressed air followed by lens tissue and approved solvents, avoiding cotton swabs that shed fibers. Perform daily grayscale calibration using standard charts.
Calibration drift in SMT Accessories vision systems results from thermal expansion or encoder slippage. Re-level the gantry and run full XY theta routines. Optimize ring lights for shadow-free illumination on reflective SMT Accessories components.
Pick-and-place heads house multiple SMT Accessories and amplify small faults into line-wide issues.
Mis-picks and double picks stem from static buildup or vacuum inconsistencies. Install ionizers and use anti-static tape handling. Axis drift from worn linear guides requires lubrication and realignment.
Implement tiered PM schedules for SMT Accessories:
- Daily: Visual inspections, wipes, dust removal.
- Weekly: Vacuum tests, sensor calibrations, stencil cleans.
- Monthly: Full diagnostics, firmware updates.
- Quarterly: Belt replacements, nozzle overhauls.
Track SMT Accessories via CMMS software. Source from Highlywin for authenticity.
Leverage error logs and swap-testing for root causes. Highlywin ensures OEM-grade SMT Accessories with rapid delivery.
Effective troubleshooting of SMT Spare Parts and SMT Accessories transforms potential crises into manageable routines, ensuring uninterrupted production. By adopting systematic diagnostics, preventive maintenance, and sourcing reliable SMT Accessories from Highlywin, manufacturers achieve superior yields and cost savings. Commit to these practices for a resilient SMT operation.
Vacuum failures in SMT Accessories nozzles primarily result from clogged filters, worn O-rings, or internal debris, leading to dropped components.
Prevent feeder jams by regular sprocket cleaning, proper tension adjustment, and sensor calibration in SMT Accessories units.
Conveyor jams in SMT Accessories arise from rail dirt, belt wear, or sensor faults; routine cleaning resolves most cases.
Stencils in SMT Accessories require cleaning every 50 prints and weekly inspections to avoid defects.
Highlywin provides premium SMT Accessories with full support for worldwide SMT needs.
