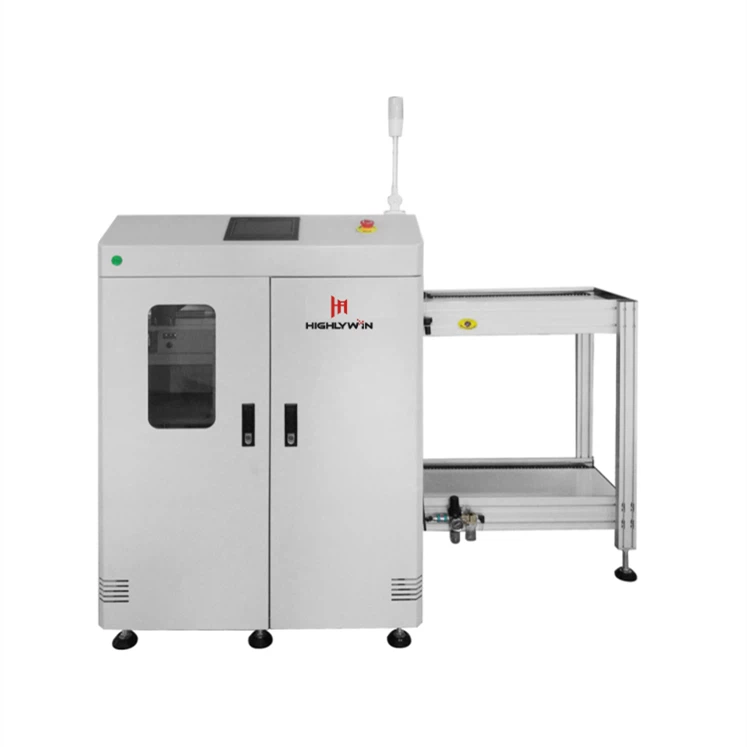

SMT PCB Automatic Vacuum Magazine Loader
The vacuum loader automatically loads double-sided boards and bare boards in SMT production lines. The top PCB is lifted by vacuum from the stack and lowered onto the conveyor. The PCB stack is loaded manually into the machine, and the individual PCBs are handed over to the downstream system on a transfer conveyor.
Reliable PLC and touchscreen panel control system.
The stable integral casting lifting platform structure design has improved the stability.
Bare boards loader mode and by-pass mode selectable.
Complete top safety visual window with interlock.
Adjustable vacuum nozzle positions provide a better way to hold the different size PCB.
Automatically position the shuttle distance and accurately release the PCB on the conveyor rail.
Sucking stability is improved by using a robust vacuum generator system.
Pre-warning limit alarm for stack empty.
Three points positioning, upper and lower pneumatic clamping, ensure the location of the magazine rack is accurate.
The push plate protection system ensures that the PCB board will not be damaged and the process loss will be reduced.
A hand crank is used to adjust the rail width.
With PCB counter.
Compatible with standard SMEMA interface, SMEMA cables are included.
Transport height: 900±20mm (or customized)
Fixed rail: Front of machine
Transport direction: Left to Right (option: Right to Left)
Magazine position: 1 upper, 2 lower
Power supply: AC 220V or 110V, single phase
Power consumption: Max 300VA
Air supply: 4-6bar, max 30ltr/min
Max PCBs capacity: 400pcs (0.6mm thickness PCB)
Selectable pitch: 10, 20, 30, 40mm or specify
Cycle time: Approx. 12 seconds or specify
Model | Dimension | PCB size | Rack Size L*W*H mm | Weight |
HVL-250 | 1800*865*1250 | 50*80-330*250 | 355*320*460 | 200 |
HVL-330 | 2220*945*1250 | 50*80-445*330 | 460*400*563 | 240 |
HVL-390 | 2450*1110*1250 | 50*80-530*390 | 535*460*563 | 280 |
HVL-460 | 2450*1250*1250 | 50*80-530*460 | 535*530*563 | 320 |
