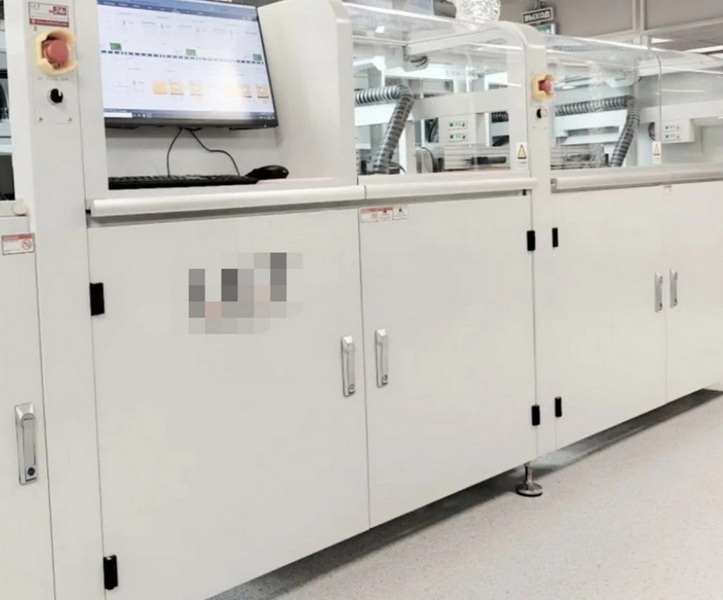

Integrating SMT machines into an existing production line transforms outdated workflows into high-efficiency, flexible manufacturing systems capable of handling complex PCB assemblies. Highlywin, your trusted partner in SMT machines, AI equipment, peripherals, comprehensive service support, and spare parts, delivers one-stop SMT solutions for global clients seeking seamless upgrades without production halts. This comprehensive guide walks through every step of integrating SMT machines, from initial assessment to full optimization, ensuring your SMT machines boost throughput, cut defects, and future-proof your operations.
SMT machines form the backbone of surface mount technology assembly, enabling precise, high-speed placement of components onto PCBs in a continuous flow. In a typical setup, SMT machines work alongside solder paste printers, reflow ovens, and inspection systems to create assembled boards ready for testing and packaging. When upgrading an existing line, new SMT machines must align perfectly with legacy equipment to avoid bottlenecks or compatibility issues.
Key components of SMT machines include pick-and-place heads, vision systems, feeder stations, and conveyor interfaces, all optimized for speed and accuracy. High-volume lines rely on modular SMT machines that scale with demand, while high-mix environments favor versatile SMT machines with quick setup times. Understanding these dynamics ensures the selected SMT machines enhance rather than disrupt your current throughput.
Begin integration by mapping your existing production line in detail, identifying constraints that could impact new SMT machines. Measure floor space, conveyor heights (standard at 900-950mm), power availability (3-phase, 380V common), compressed air (0.5-0.7 MPa), and exhaust requirements for reflow ovens tied to SMT machines workflows.
Evaluate current takt time, OEE (Overall Equipment Effectiveness), and defect rates to pinpoint where SMT machines can deliver the biggest gains. For instance, if manual placement slows your line, high-speed SMT machines with 50,000+ CPH (components per hour) ratings can multiply output. Document PCB sizes, component types (from 01005 to large connectors), and material handling to ensure new SMT machines support your full product range.
Conduct a risk analysis: simulate board flow with new SMT machines using software tools or physical mockups. This step prevents common pitfalls like insufficient feeder capacity or mismatched board edges, which plague 30% of rushed SMT machines integrations. Highlywin's site audits provide expert insights, recommending tailored SMT machines configurations from day one.
Choosing the right SMT machines requires balancing speed, flexibility, precision, and cost against your production profile. High-speed SMT machines excel in volume runs with rotary turrets placing up to 100,000 CPH, while flexible gantry-style SMT machines handle diverse components with vision-guided placement accurate to 20 microns.
Prioritize SMT machines with SMEMA/IMC (IPC-CFX) interfaces for plug-and-play conveyor handoffs, universal feeders compatible with existing tape/reel/tray stocks, and open APIs for MES integration. Evaluate brands like Yamaha, Fuji, or Panasonic SMT machines, but focus on total line efficiency—printer stencil alignment, placement offset calibration, and reflow profile synergy.
Consider future-proofing: opt for SMT machines with AI-driven optimization, auto-nozzle exchange, and smart feeders that self-adjust tension. Highlywin curates SMT machines from top OEMs, matching them to your volume (low: 10k boards/month; high: 100k+), mix complexity, and budget, often bundling peripherals for complete SMT machines ecosystems.

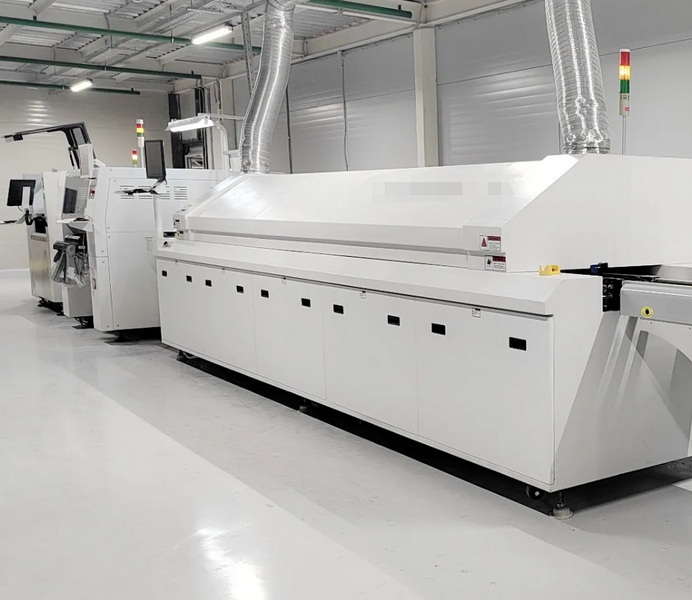

Mechanical integration anchors the entire project, positioning SMT machines to fit existing footprints while optimizing flow. Standardize conveyor specs: edge support (3-5mm), width (50-510mm adjustable), and speed (up to 1m/s) across all SMT machines and handlers.
Install buffer zones before/after SMT machines to decouple processes—e.g., 2-3m liftgates allow printer maintenance without halting placement. Dual-lane setups double throughput, with new SMT machines mirroring existing paths for balanced load sharing. Rigging pros handle SMT machines weighing 2-10 tons, leveling to <0.5mm across feet for vibration-free operation.
Align fiducials and board stops precisely; misalignment by 0.1mm cascades into placement errors on SMT machines. Test empty board runs first, gradually adding feeders to verify jam-free transfer to downstream reflow.
SMT machines demand robust utilities: 20-50kVA per machine, clean dry air at 5bar, and gigabit Ethernet for data-heavy vision systems. Upgrade panels to handle inrush currents during SMT machines startup, adding UPS for vision PCs and PLCs to prevent recipe losses.
Route pneumatics with 1/2" lines, filters, and regulators dedicated to SMT machines feeders/nozzles. Network segregation—VLAN for SMT machines control traffic—ensures low-latency MES polling without ERP interference. Grounding grids (<1 ohm) shield sensitive SMT machines electronics from EMI.
Commission utilities in phases: power-on tests, air leak checks, ping sweeps before full SMT machines activation. Highlywin supplies pre-wired panels and air dryers, slashing setup time for SMT machines.
Digital integration elevates SMT machines from islands to smart nodes. Implement IPC-CFX for bidirectional data: SMT machines report placement stats, defects, and yields to MES, which dispatches jobs and recipes.
Standardize file formats—CSV for feeders, Gerber for fiducials—across SMT machines and upstream CAD. Centralized servers host SMT machines libraries (nozzles, components), auto-pushing updates to cut programming errors by 70%. Traceability shines: lot codes from ERP flow to SMT machines, logging every placement for compliance.
Test loops: MES commands SMT machines changeover, verifies execution, alerts on drifts. Highlywin's integration kits bridge legacy PLCs to modern SMT machines protocols.
SPI post-printer and AOI post-placement/reflow catch 90% of SMT machines issues early. Calibrate shared libraries so SMT machines and AOI use identical component models, enabling auto-offset corrections.
Closed-loop: AOI flags tombstoning? SMT machines tweaks vacuum pressure. Program SPI volume checks to halt faulty paste before SMT machines waste cycles. Inline X-ray for BGAs complements optical AOI in high-reliability SMT machines apps.
Position AOI on cooled boards to avoid reflow mirages, buffering if needed. Highlywin bundles calibrated SPI/AOI with SMT machines for turnkey quality.
Optimization unlocks SMT machines potential: balance lines so no station idles >5%. Analyze SMT machines logs for feeder starvation, nozzle wear; Pareto top stops.
Tune reflow profiles per SMT machines paste volume data—preheat 150°C, peak 245°C for SAC305. Panelize PCBs to maximize SMT machines utilization, minimizing head travel. AI on SMT machines predicts maintenance, boosting uptime 15%.
Run DOE (Design of Experiments) varying SMT machines params, validating with SPC charts. Highlywin's process engineers iterate remotely via SMT machines VPN.
Empower teams with hands-on SMT machines training: daily ops, PM schedules, alarm trees. Simulator software mimics SMT machines faults pre-go-live.
Certify leads on programming, feeders; cross-train for flexibility. Digital twins visualize SMT machines tweaks' impacts. Culture shift: KPIs reward SMT machines OEE, not just output.
Highlywin's multilingual modules cover your global sites.
Shadow runs: parallel old/new paths until SMT machines hit 95% yield. Weekend installs, hot swaps via roll-in carts.
Stockpile SMT machines spares onsite; remote diagnostics cut MTTR. Phased volumes: 10% new SMT machines Week 1, ramp weekly.
Highlywin's playbook ensures <2% annual downtime post-integration.
Highlywin streamlines SMT machines integration with vetted gear, factory acceptance tests, and 24/7 global support. From spec'ing SMT machines to tuning lines, we minimize risks.
Stocked spares, AI upgrades, expansions—Highlywin scales your SMT machines as business grows.
Mastering SMT machines integration elevates your production from reactive to predictive, slashing costs and scaling output through smart layout, digital sync, and expert support. With Highlywin's one-stop ecosystem—SMT machines, services, spares—global manufacturers achieve rapid ROI, often 6-12 months. Embrace this upgrade; your next-gen line awaits.
Compact SMT machines fit 10-15m² per unit, but full lines need 50-100m including buffers. Highlywin optimizes layouts for tight footprints.
Versatile SMT machines use auto-setup, smart feeders, and AI scheduling for <15min changeovers across 100+ jobs daily.
Yes, via SMEMA adapters and protocol converters; 80% succeed with minimal mods.
Payback in 8-18 months via 30-50% throughput gains, 50% defect cuts.
24/7 remote monitoring, annual audits, spares in 48h worldwide.
