Highlywin is a premier provider of SMT, AI, and peripheral equipment, offering comprehensive SMT services and spare parts to global clients seeking reliable one-stop SMT solutions. SMT machines form the core of modern electronics manufacturing, enabling high-speed, precise assembly of surface-mount components onto printed circuit boards.

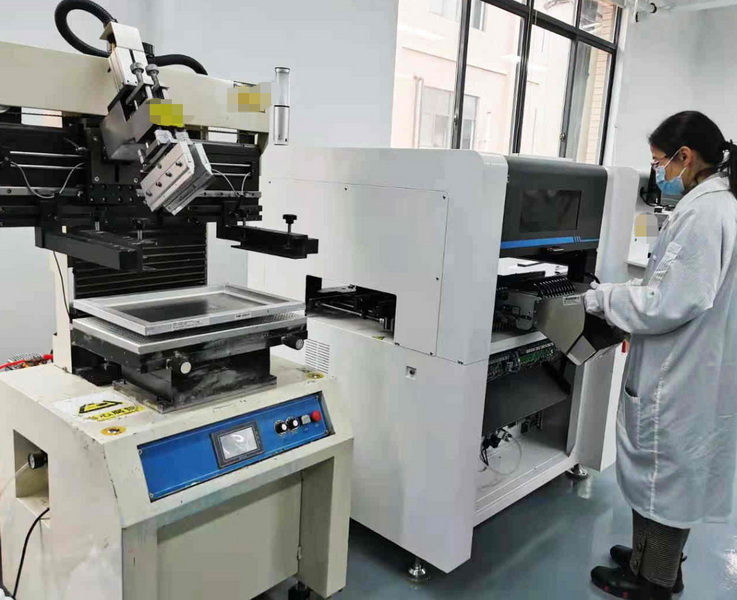

Surface Mount Technology (SMT) revolutionized electronics assembly by allowing components to be mounted directly onto the surface of PCBs, eliminating the need for holes and leads in many cases. SMT machines are specialized automated equipment designed to pick, inspect, and place these surface-mount devices (SMDs) with micron-level accuracy. At the heart of every SMT production line, SMT machines determine the overall throughput, flexibility, and quality of the final assembled boards.
SMT machines integrate advanced robotics, machine vision, and software control systems to handle everything from tiny 01005 resistors to large BGAs and connectors. These SMT machines operate continuously in high-volume environments, placing thousands of components per hour while minimizing defects through real-time corrections and verification. Highlywin supplies a wide range of SMT machines tailored to diverse production needs, from prototyping to mass manufacturing, ensuring seamless integration with printers, reflow ovens, and inspection tools.
The evolution of SMT machines has paralleled the miniaturization of electronics, with modern models supporting 5G modules, automotive ECUs, medical devices, and IoT hardware. By optimizing feeder setups and placement algorithms, SMT machines achieve optimal balance between speed and precision, making them indispensable for competitive global manufacturing.
Every SMT machine consists of several interdependent subsystems that work in harmony to deliver reliable performance. The frame and gantry system provides the rigid foundation for high-speed movements, often using linear motors and optical encoders for sub-micron positioning. Placement heads equipped with multiple intelligent nozzles allow SMT machines to pick diverse component sizes without manual intervention, switching seamlessly between tasks.
Vision systems in SMT machines are critical for fiducial recognition, component verification, and post-pick alignment, using high-resolution cameras and AI algorithms to detect defects or offsets instantly. Feeder stations supply components via tape, tray, or tube formats, with intelligent feeders that monitor stock levels and alert operators to prevent production interruptions. The central controller orchestrates all operations, storing vast libraries of component data and optimizing placement sequences for maximum efficiency.
Nozzle changers, conveyor interfaces, and auxiliary calibration tools further enhance SMT machines' uptime and adaptability. Highlywin provides genuine spare parts for all these components, along with maintenance kits that keep SMT machines running at peak performance year after year.
SMT machines come in various configurations to match specific production volumes and component complexities. High-speed chip shooters excel at placing small passives like resistors and capacitors at rates exceeding 100,000 CPH, making them ideal for high-volume consumer electronics lines. Flexible mounters, on the other hand, handle odd-form components, large ICs, and fine-pitch devices with superior accuracy, often combining with chip shooters in modular lines.
Modular SMT machines offer scalability, allowing manufacturers to add heads or stations as demand grows, while all-in-one desktop SMT machines suit low-volume prototyping and R&D labs. High-end turret SMT machines rotate multiple heads for ultra-fast placement in dedicated lines, whereas gantry-style SMT machines provide versatility for mixed production runs. Highlywin's portfolio includes all these SMT machine types, with customization options for regional power standards and software languages.
Each type of SMT machine features unique feeder capacities, PCB size handling, and integration capabilities, enabling precise matching to customer requirements. Whether for LED assembly, power supplies, or telecom boards, the right SMT machine boosts yield and reduces costs significantly.
The operation of SMT machines follows a precise, repeatable cycle optimized for speed and accuracy. First, the PCB enters via conveyor, where fiducials are scanned to establish exact coordinates, compensating for any warping or stretching. Simultaneously, feeders advance components into pickup positions, calibrated to the SMT machine's nozzle array.
The placement head descends with vacuum nozzles to gently lift components, then presents them to an upward-facing camera for inspection—verifying polarity, presence of defects, and calculating rotational offsets. Software algorithms in the SMT machine correct these in real-time by rotating the nozzle 360 degrees if needed. The head then accelerates to the target XY position over the PCB, descending with controlled Z-force to deposit the part precisely into the solder paste.
This cycle repeats at blistering speeds, with advanced SMT machines interleaving picks from multiple feeders to minimize head travel. Conveyor indexing advances the board incrementally, allowing continuous placement across zones. Error handling routines pause only for critical faults, logging data for traceability and process improvement.

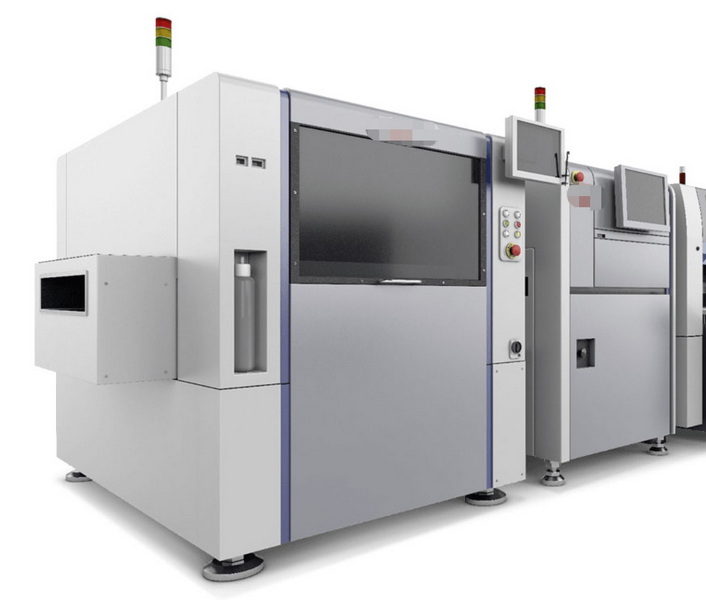

SMT machines thrive within a synchronized ecosystem of upstream and downstream equipment. Solder paste printers deposit uniform deposits on pads before the PCB reaches SMT machines, with SPI verifying volume and alignment. Post-placement, AOI scans for misses, bridges, or offsets, feeding data back to refine SMT machine programs.
Reflow ovens then melt the paste into robust joints via multi-zone heating profiles tailored to component tolerances. Selective soldering or wave stations handle any through-hole parts, while final testers validate functionality. Highlywin engineers design balanced SMT lines where no single machine becomes a bottleneck, incorporating buffers, inverters, and stackers for smooth flow.
Auxiliary equipment like nitrogen generators, stencil cleaners, and paste mixers supports uninterrupted SMT machine operation. Traceability software links every placement to serial numbers, enabling root-cause analysis across the entire SMT process.
SMT machines deliver transformative benefits over legacy assembly methods. Miniaturized SMDs enable double-sided population and higher densities, shrinking products while cutting material costs. Automation slashes labor by 80-90%, with 24/7 operation yielding consistent quality unaffected by fatigue.
Defect rates drop below 100 PPM thanks to inline verification and closed-loop corrections in SMT machines. Quick program changes support just-in-time manufacturing, reducing inventory and lead times. Environmental gains include lead-free compatibility and lower energy per board.
Scalability allows seamless growth from prototypes to millions of units annually. Highlywin's training ensures operators unlock these advantages from day one.
Consumer electronics rely on SMT machines for smartphones, wearables, and appliances demanding compact, reliable boards. Automotive SMT machines assemble ECUs, infotainment, and ADAS modules to AEC-Q100 standards. Medical devices use validated SMT machines for precision diagnostics and implants.
Telecom infrastructure, 5G base stations, and servers demand high-reliability SMT machines for dense backplanes. Industrial controls, power inverters, and renewables leverage rugged SMT machines for harsh environments. LED lighting and displays benefit from high-speed placement of thousands of emitters.
Highlywin tailors SMT machine solutions for each sector's unique validation, throughput, and compliance needs.
Proactive maintenance sustains SMT machine performance and longevity. Daily routines include nozzle cleaning, vacuum checks, and feeder audits to prevent pick failures. Weekly calibrations verify motion accuracy using laser interferometers, while monthly belt inspections avoid slippage.
Software updates incorporate placement optimizations and security patches. Highlywin's remote diagnostics predict failures via IoT telemetry, dispatching parts preemptively. Operator training on error codes minimizes downtime from improper handling.
A structured PM schedule yields 95%+ uptime, directly impacting profitability.
Industry 4.0 integration brings AI-driven optimization to SMT machines, predicting feeder jams and auto-adjusting for material variations. Larger PCBs for EVs and servers demand bigger gantries and hybrid heads. Flexible hybrid SMT machines blend THT and SMT for diverse assemblies.
Sustainability drives low-energy designs and recyclable feeders. Highlywin invests in these advancements, ensuring clients stay ahead.
SMT machines represent the pinnacle of automated PCB assembly, combining speed, precision, and flexibility to power global electronics production. From core components to full-line integration, SMT machines enable manufacturers to meet demanding volume, quality, and customization requirements. Highlywin's comprehensive ecosystem—SMT machines, peripherals, services, and spares—delivers turnkey solutions that maximize uptime and ROI for worldwide clients.
High-speed SMT machines prioritize chip placement volume for uniform passives, while flexible SMT machines excel at diverse, high-precision tasks like BGAs and odd-forms.
Vision systems enable component verification, rotation correction, and fiducial-based alignment, reducing defects by 50-70% in challenging placements.
Feeders supply precise component presentation from tapes/trays, directly impacting placement uptime and changeover efficiency.
Yes, multi-function SMT machines use specialized nozzles and vision for connectors, heatsinks, and large ICs up to 100x100mm.
Highlywin offers line design, programming, training, spares, and remote service for optimal SMT machine performance worldwide.
