Loader/Unloader Conveyor For Wave Soldering Machine
This high-quality wave soldering conveyor loader/unloader is used to handle a wide range sizes and shapes of PCB/PCB with jig, ensures smooth and efficient transfer of boards through the wave soldering process. Suitable for all kinds of wave soldering production lines.

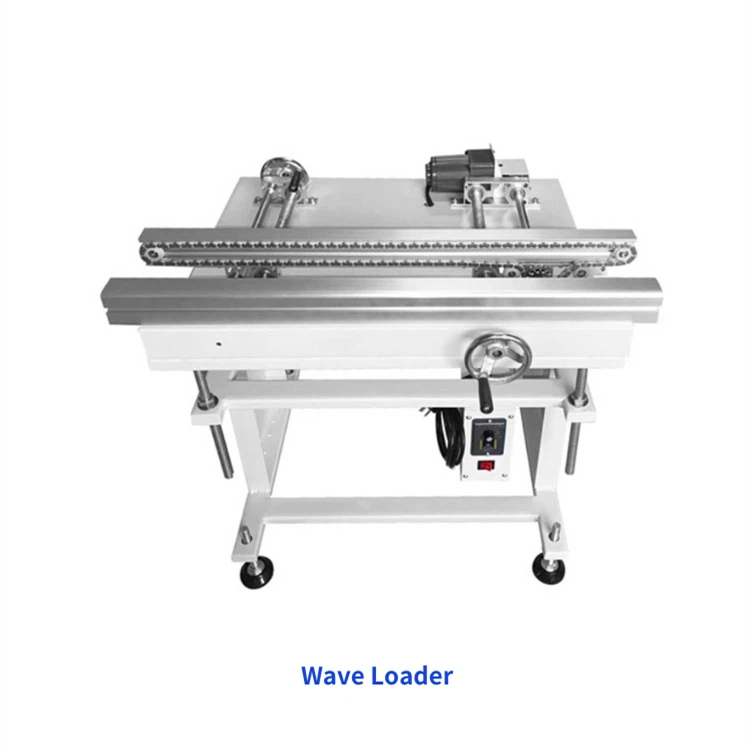

Wave soldering loader conveyor is used to automatedly load PCB’s or pallets into wave soldering machine.

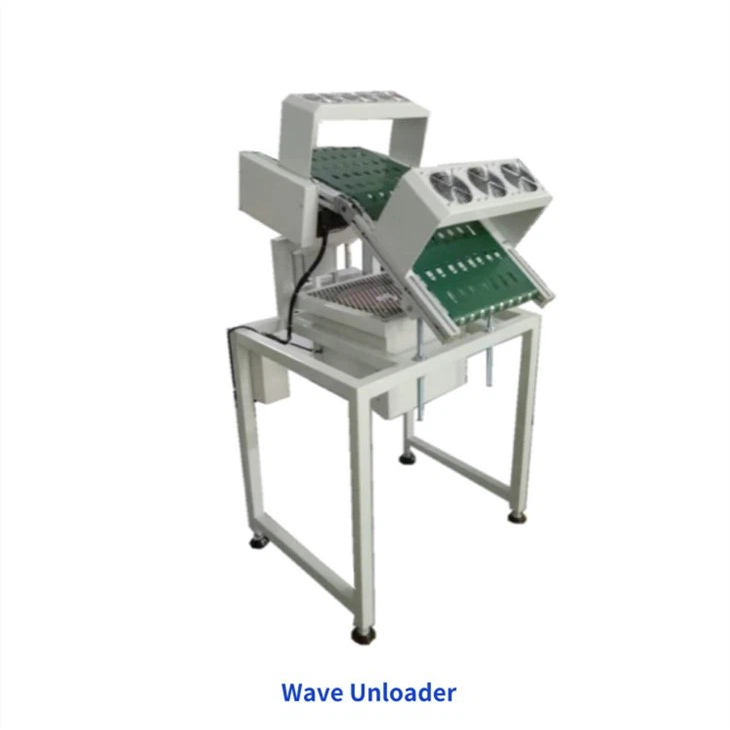

Wave soldering unloader conveyor is used to unload PCB’s or pallets from a wave soldering machine with angle adjustable. The decline section presents the PCB/pallet at standard height and flows to the downstream machine.
Customization base on your individual request is available.
Modular design, optional assembly as client’s request.
Continuous queue loading into and unloading from the wave soldering machine.
The conveyor width is adjusted by using a hand crank.
Solid aluminum structure design improves equipment stability, heavy bottom design to prevent shifting.
Conveyor speed and transfer height are adjustable.
Loader conveyor transfer by the chain (35B Nylon pin chain or specify). Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.
Unloading conveyor transfer by ESD flat belts.
The PCB transfer angle is adjustable.
SMEMA is compatible, and SMEMA cables included.
With cooling fans is an option.
Machine length can be customized.
Transport direction: L to R or specify R to L
Transport height: 900mm ±30mm or specify
Power supply: AC 220V or 110V, single phase
Power: Max 100VA
Conveying Speed: 0.5 – 20m/min adjustable
PCB thickness: 0.6-4mm
Load bearing: 1.5kg/pc
Model | Dimension | PCB size | Weight | Remark |
| (L*W*H mm) | (mm) | (KG) | ||
HWL-350 | 800*600*750 | 50*50-445*350 | 35 | Loader |
HWL-460 | 800*700*750 | 50*50-530*460 | 45 | |
HWUL-350 | 1200*520*1400 | 50*50-445*350 | 35 | Unloader |
| HWUL-460 | 1200*620*1400 | 50*50-530*460 | 45 |
