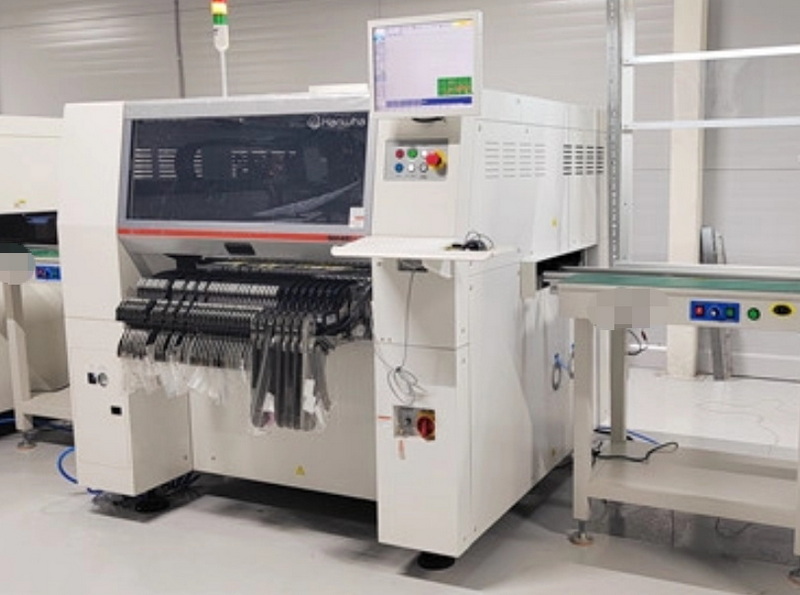

In modern electronics manufacturing, where every second counts, SMT Accessories play a pivotal role in ensuring efficient, stable, and high-quality production. When correctly configured, these accessories can dramatically increase output, minimize defects, and extend the life of your equipment. Poorly configured accessories, however, lead to inefficiency, higher operational costs, and machine downtime.
This guide explores the best practices for setting up your SMT Accessories to maximize line performance. It covers preparation, calibration, layout, software configuration, maintenance, and quality control—drawing from Highlywin's years of global experience providing SMT/AI equipment, peripheral systems, and complete one-stop SMT solutions.
SMT Accessories are the essential support components within an SMT line that allow each stage of the process to run smoothly and synchronize with the others. They include parts such as feeders, nozzles, conveyors, stencil printers, reflow ovens, PCB loaders, and inspection units.
Each accessory has a specific role:
- Feeders supply components accurately to the pick-and-place heads.
- Nozzles ensure components are lifted and placed securely.
- Stencil printers regulate solder paste deposition.
- Conveyors connect workstations, maintaining balanced flow.
- AOI systems inspect and verify the final results.
At Highlywin, every accessory is engineered for precision, durability, and compatibility with global SMT brands. The right accessories, configured properly, can bridge the gap between efficiency and inconsistency.
A well-configured SMT accessory network optimizes:
- Placement accuracy: Reduces misalignment or bridging during placement.
- Speed: Enhances throughput by minimizing stoppages and changeover time.
- Production consistency: Eliminates variation between batches.
- Operating cost savings: Fewer reworks, less waste, and lower downtime.
- Machine longevity: Accessories wear out slower when balanced and calibrated.
By contrast, poor setup can lead to slow component feeding, mispicks, solder bridging, or high defect rates. In electronics production, even a minor inconsistency in one accessory can affect the final quality of every PCB passing through the line.
Begin by creating a structured inventory of all SMT Accessories in use across the line. This includes:
- Feeders of different tape or tray sizes
- Nozzles for a variety of component shapes and pickups
- PCB loaders and unloaders
- Reflow oven accessories
- Conveyors, buffers, and accumulators
- Solder paste printers and stencil cleaners
- Inspection systems such as SPI and AOI
Classify each accessory by type, size, and calibration date. Maintain a digital record or use MES (Manufacturing Execution System) software to track serial numbers, maintenance cycles, and usage hours. Having clear visibility over your accessory setup allows smoother coordination and reduces the risk of production delays.
Store accessories in ESD-protected cabinets or sealed anti-dust environments. Every piece—down to screws and brackets—should be labeled, traceable, and easy to locate when changeovers occur.
Environmental control is essential for maintaining SMT production quality. Temperature, humidity, and cleanliness directly influence solder paste viscosity, adhesive strength, and equipment precision.
Key recommended conditions:
- Temperature: 22–26°C for consistent solder paste behavior.
- Humidity: 40%–60% RH to prevent component oxidation or moisture uptake.
- Static control: Use grounded flooring, ESD wrist straps, and ionizers.
- Air cleanliness: Install HEPA filters and maintain scheduled cleaning routines.
An optimized workshop layout also improves efficiency. Position peripheral systems logically—loaders at the beginning, collectors at the end, and conveyors connecting each stage in a straight line where possible. The smoother the material transition, the fewer opportunities for mechanical or human error.
Feeders and nozzles lie at the heart of SMT performance. Calibration ensures that each component is picked up at the correct position, with the correct pressure, and placed precisely on the PCB pad.
For Feeders:
- Inspect sprocket alignment, spring tension, and tape peeling force.
- Replace worn feeder gears promptly to prevent jamming.
- Monitor sensor accuracy—particularly the part-present and advance sensors.
- Apply light oil film on mechanical moving parts to minimize friction.
For Nozzles:
- Check for clogging or tip deformation.
- Verify vacuum levels and replace seals if suction weakens.
- Clean nozzles using ultrasonic machines and anti-static wipes.
Calibration should be part of a daily inspection checklist. At Highlywin, our service teams use precision calibration platforms to restore feeders and nozzles to OEM accuracy standards, ensuring every pickup is flawless.
Hardware efficiency depends on correct software configuration. Set up your SMT line software to recognize every SMT accessory accurately and in its designated position.
Focus on:
- Feeder Mapping: Identify feeder locations and assign them in the placement machine's software.
- Nozzle Library Management: Record nozzle IDs, compatible parts, and pickup heights.
- Printer Alignment: Define stencil offset and solder paste thickness tolerance.
- Conveyor Parameters: Adjust transfer speed and PCB width automatically when possible.

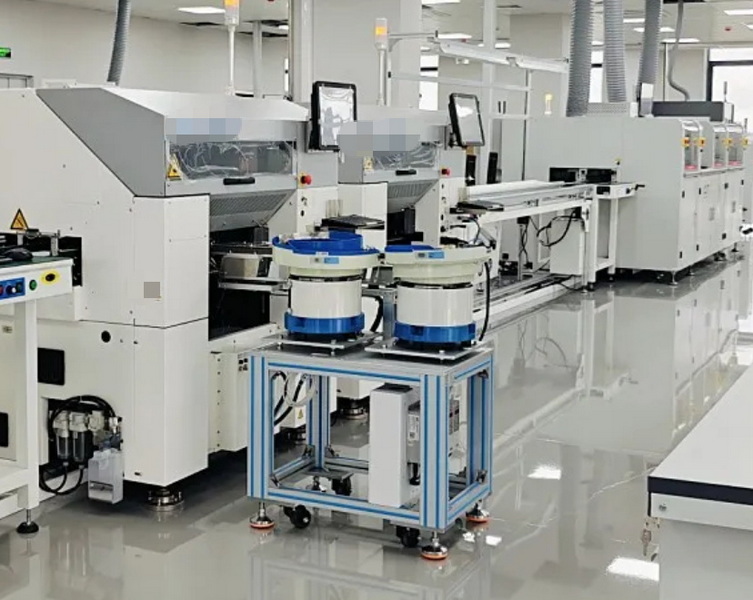

If your line includes both SMT and AI (Auto Insertion) processes, synchronize the equipment timing to prevent board backlog or idle waiting. Many Highlywin clients adopt IoT-connected control solutions for centralized parameter management, offering real-time monitoring of multiple machines within one platform.

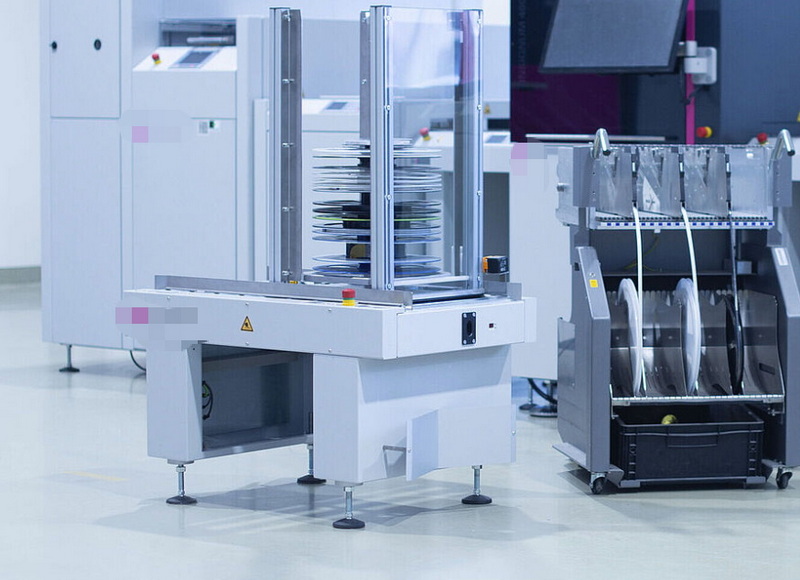

Efficient SMT lines depend not only on machines but also on how accessories are arranged and accessed during production.
To maximize material flow:
- Group feeders by component type and priority.
- Use dual-cart or quick-swap systems for high-mix, low-volume runs.
- Preload next-job feeders offline for faster changeovers.
- Place commonly used accessories within ergonomic reach of operators.
- Use barcode or RFID systems to identify feeders and components fast.
Proper SMT accessory setup shortens downtime between product models, minimizes manual handling errors, and keeps production output stable even during product transitions. At Highlywin, many of our customers have seen up to 20% higher daily throughput simply by improving feeder organization and refilling workflows.
Maintenance is the backbone of long-term SMT productivity. Establish a maintenance schedule for every SMT accessory—daily, weekly, and monthly—to maintain optimal precision.
Daily Tasks:
- Wipe and clean feeders and nozzles.
- Check tape feeding mechanisms for debris.
- Inspect stencil printer squeegees and replace worn ones.
Weekly Tasks:
- Lubricate conveyor chains and check belt tension.
- Clean reflow oven filters and air circulation nozzles.
- Inspect vacuum pumps and replace filters if clogged.
Monthly/Quarterly Tasks:
- Recalibrate vision cameras.
- Replace nozzle O-rings and feeder springs.
- Perform electrical checks on all sensors and actuators.
Predictive maintenance—using sensor data to anticipate part wear—can reduce unplanned downtime dramatically. Highlywin's solutions support integration of predictive analytics tools to monitor mechanical conditions in real time.
Every SMT accessory affects final product quality. Integrate automated inspections at key points to catch issues early.
Key inspection systems include:
- SPI (Solder Paste Inspection): Ensures consistent paste volume and shape before placement.
- AOI (Automatic Optical Inspection): Detects incorrectly placed or soldered components.
- Reflow Profiling and Oven Monitoring: Verifies temperature uniformity across zones.
Periodic verification using sample boards can also confirm accessory alignment accuracy. Recording and analyzing these inspection results provides data trends to improve accessory setup continuously.
Incorporating digital traceability—where every PCB can be linked to the exact feeder, nozzle, and operator—helps maintain accountability and regulatory compliance.
Even the most advanced SMT accessories will underperform without skilled operators. Training ensures that staff understand both the physical and digital aspects of accessory setup.
Training topics should include:
- Feeder preparation and alignment.
- Handling and replacing nozzles.
- Machine control software operation.
- Recognizing signs of equipment wear.
- Responding quickly to feeding errors or mispicks.
Highlywin provides comprehensive training programs to customers, combining on-site instruction with online simulation. Regular retraining sessions help teams adapt to new accessory technologies or production upgrades.
As a professional supplier of SMT/AI equipment, peripheral systems, spare parts, and all related SMT Accessories, Highlywin offers global manufacturers integrated services that extend beyond sales.
We provide:
- OEM and OEM-compatible feeder calibration systems.
- Nozzle and placement head maintenance tools.
- Custom peripheral design for unique production lines.
- Spare parts supply for all major SMT machine brands.
- Full after-sales and technical troubleshooting.
Customers worldwide benefit from our experience in line setup, accessory optimization, and smart automation. Our approach reduces production bottlenecks and empowers manufacturers to compete globally with faster turnaround and lower production costs.
Efficiency is not a one-time goal—it's a process of continuous optimization. Regular evaluation of your SMT Accessories can lead to long-term improvements in performance, environmental sustainability, and operational safety.
Some key steps for sustainable operation:
- Transition to energy-efficient reflow ovens and conveyors.
- Recycle packaging materials from component reels.
- Document process improvements for ISO and IPC compliance.
- Benchmark accessory utilization weekly to identify underused assets.
Output data analysis helps identify patterns that indicate where adjustments in accessory layout or feeding sequence can further enhance yield rates.
Setting up your SMT Accessories for maximum efficiency requires thoughtful planning, precision calibration, and disciplined maintenance. Every element—from the smallest nozzle to the entire feeder system—contributes to higher productivity, quality, and profitability.
By adopting best practices in environment control, software integration, and preventive care, electronics manufacturers can achieve seamless SMT operations. Partnering with Highlywin ensures access to comprehensive SMT accessory support, customized solutions, and expert service guidance—making your production line not only efficient but also future-ready.
SMT Accessories are essential tools and components that support the SMT process, including feeders, nozzles, conveyors, printers, inspection systems, and reflow accessories. They help machines operate accurately and efficiently during PCB assembly.
Feeders and nozzles should be inspected daily and fully calibrated weekly or monthly depending on usage. Regular calibration ensures consistent pickup accuracy and component alignment across all machine cycles.
Feeders should be cleaned after every production shift, checking sprockets, tension, and alignment. Use lint-free wipes and apply light lubrication to mechanical joints. Replace worn springs or rollers immediately to avoid feeding errors.
Prepare feeder carts and component reels for the next job offline. Use modular accessories and barcode tracking systems for faster identification. Organize nozzles and feeders by product type and placement sequence to enable rapid transitions.
Yes. Highlywin delivers worldwide technical support, on-site calibration, spare parts supply, and training services. Our specialists assist clients in fine-tuning SMT accessories to match production conditions and equipment models.
