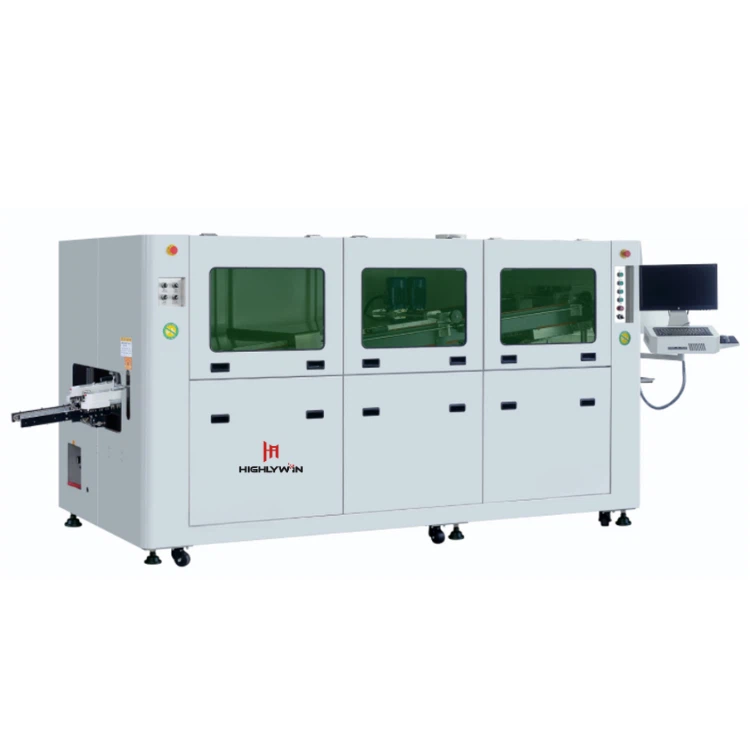

Lead-free Nitrogen Reflow Soldering Machine HW-800N/HW-800N-D(dual rail)
We have a full range of oven ranging from 8 to 12 zone, from nitrogen to hot air versions, please contact us to discuss your individual requirement.
95% of the material on the machine can be recycled.
Strengthen the main boom to ensure the guide rail lateral deformation, to eliminate the board jamming and dropping.
Multi-layer heat preservation furnace chamber design, effectively reducing the temperature by 10-20 degrees of the furnace surface temperature.
Option: dual rail. Dual-rail structure effectively improves production efficiency and saves energy and production cost.
15% improvement in heat transfer efficiency, to cope with more complex and large welding products lead-free process requirements.
New cooling structure design allows most of the exhaust gas to be filtered or recycled and returned to the furnace, which reduces heat loss and makes flux recovery more complete.
The nitrogen can be as low as 150PPM. Only 20-22m³/H in 300-800ppm oxygen concentration environment.
Inline operation with SMEMA communication.
Model | HW-800N | HW-800N-D |
| Machine parameter | ||
Dimension (L x W x H) mm | 5520x1430x1530mm | 5520x1680x1530mm |
Color | Grey | |
Weight | Approx. 2710kg | Approx.2760kg |
Number of heating zone | Top 8 / Bottom 8 | |
Length of heating zone | 3110mm | |
Number of cooling zone | Top 3 / Bottom 3 | |
Rectifying plate structure | Small circulation | |
Rectifying plate texture of material | Alcoa Gold Nano Hard Oxidation | |
Exhaust volume requirement | 12m3 / min x 2(Exhausts) | |
| Control system | ||
Power supply | 3 phase, 380V 50/60HZ (Option: 3 phase, 220V 50/60HZ) | |
Total power | 64KW | 67KW |
Startup power | 30KW | 32KW |
Normal power consumption | 9KW | 10KW |
Warming time | Approx. 20 min | |
Temperature control range | Room temperature – 300℃ | |
Temperature control method | PID close loop control + SSR driving | |
Temperature control precision | ±1℃ | |
Temperature deviation on PCB | ±1.5℃ (By RM board test standard) | |
Data storage | Process data and status storage | |
Abnormal alarm | Abnormal temperature (Extra-high/Extra-low temperature after constant temperature) | |
Board dropped alarm | Signal light: Yellow-warming, Green-normal, Red- abnormal | |
| Conveyor system | ||
Rails structure | Overall sectional type | |
Chain structure | Double buckle for preventing board jammed | |
Max width of PCB | 400mm(option:460mm) | 300mmx2 |
Range of rail width | 50-400mm(option:50-460mm) | 300mmx2 |
Components height | Top 30mm / Bottom 30mm | |
Conveyor direction | L to R (Option: R to L) | |
Conveyor rail fixed type | Front rail fixed (Option: Rear rail fixed) | |
PCB conveyor method | Chain, option: mesh | |
Conveyor height | 900±20mm | |
Conveyor speed | 300-2000 mm/min | |
Auto-lubrication | Yes | |
| Cooling system | ||
Cooling method | water chiller | |
Thermal management system and analysis | ||
KIC RPI Reflow process inspection system | Option | |
| Options | ||
Dual-rail conveyor | With “D” means dual-rail, front and rear rail fixed, 2 centrals adjustable | |
Central support | option (it will be no mesh if choose center support system) | |
