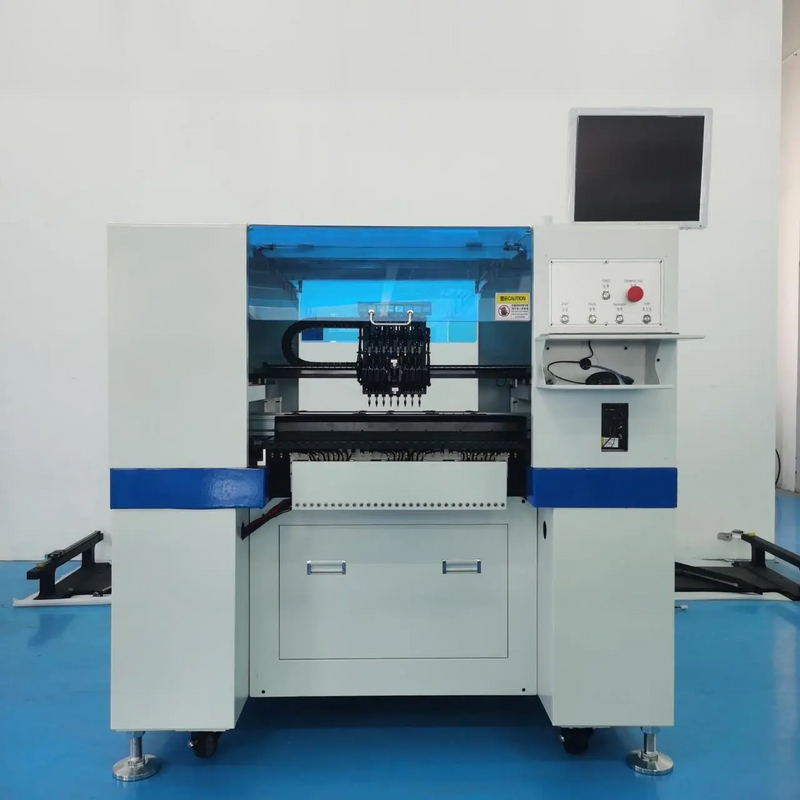

Fully automatic Pick and Place Machine HW-A8
HW-A8 Fully automatic pick-and-place machine Advantages

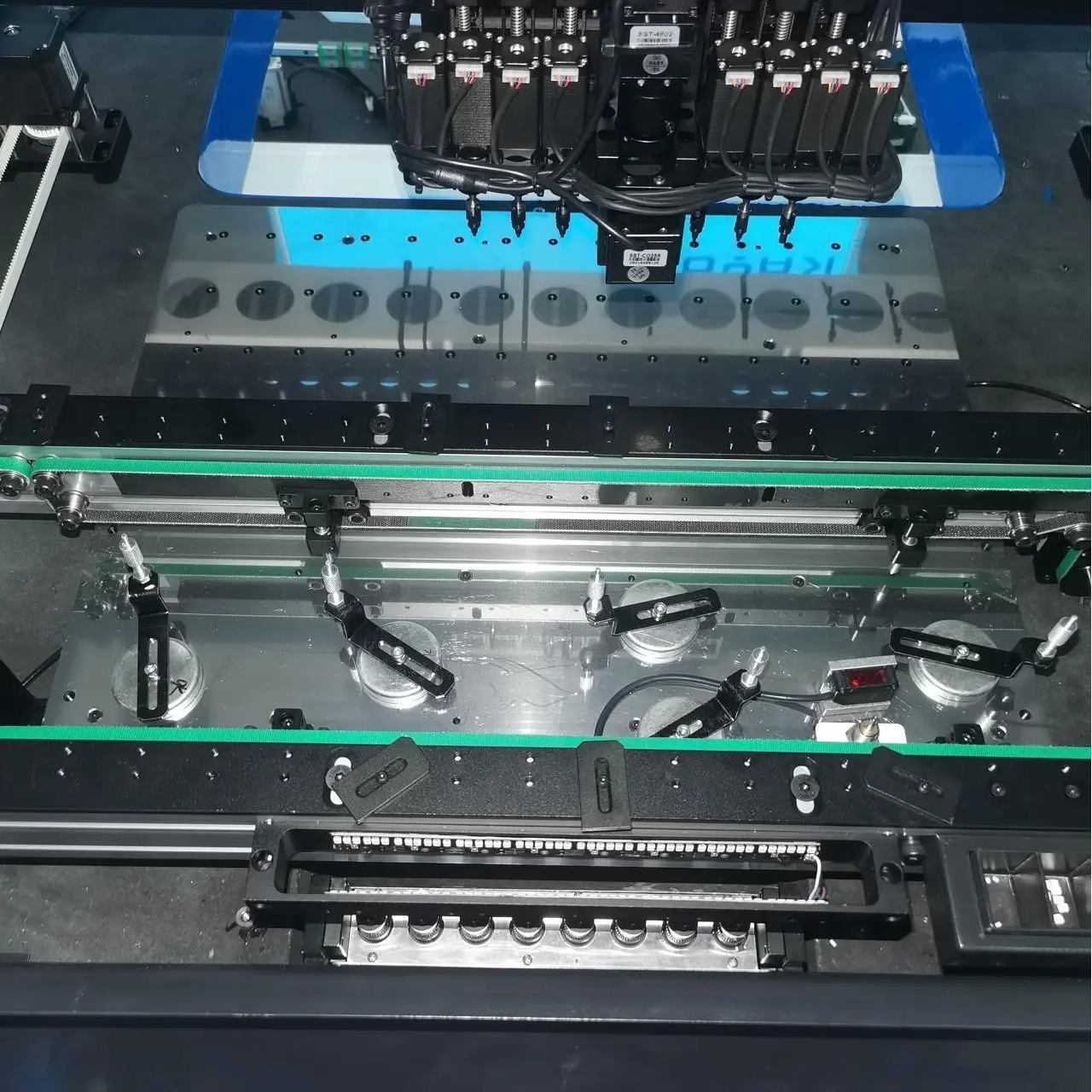

Equipped with 8 industrial-grade high-speed linear vision cameras for simultaneous 8-head recognition, significantly improving placement efficiency

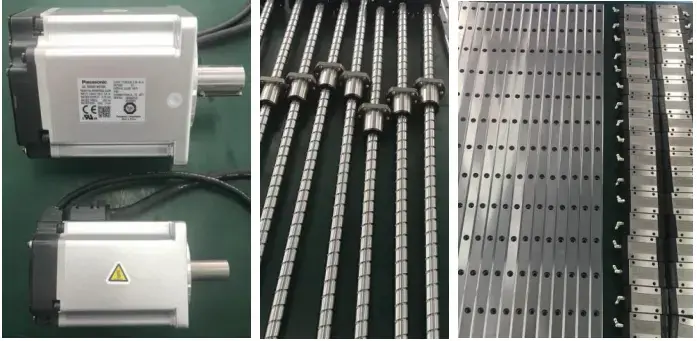

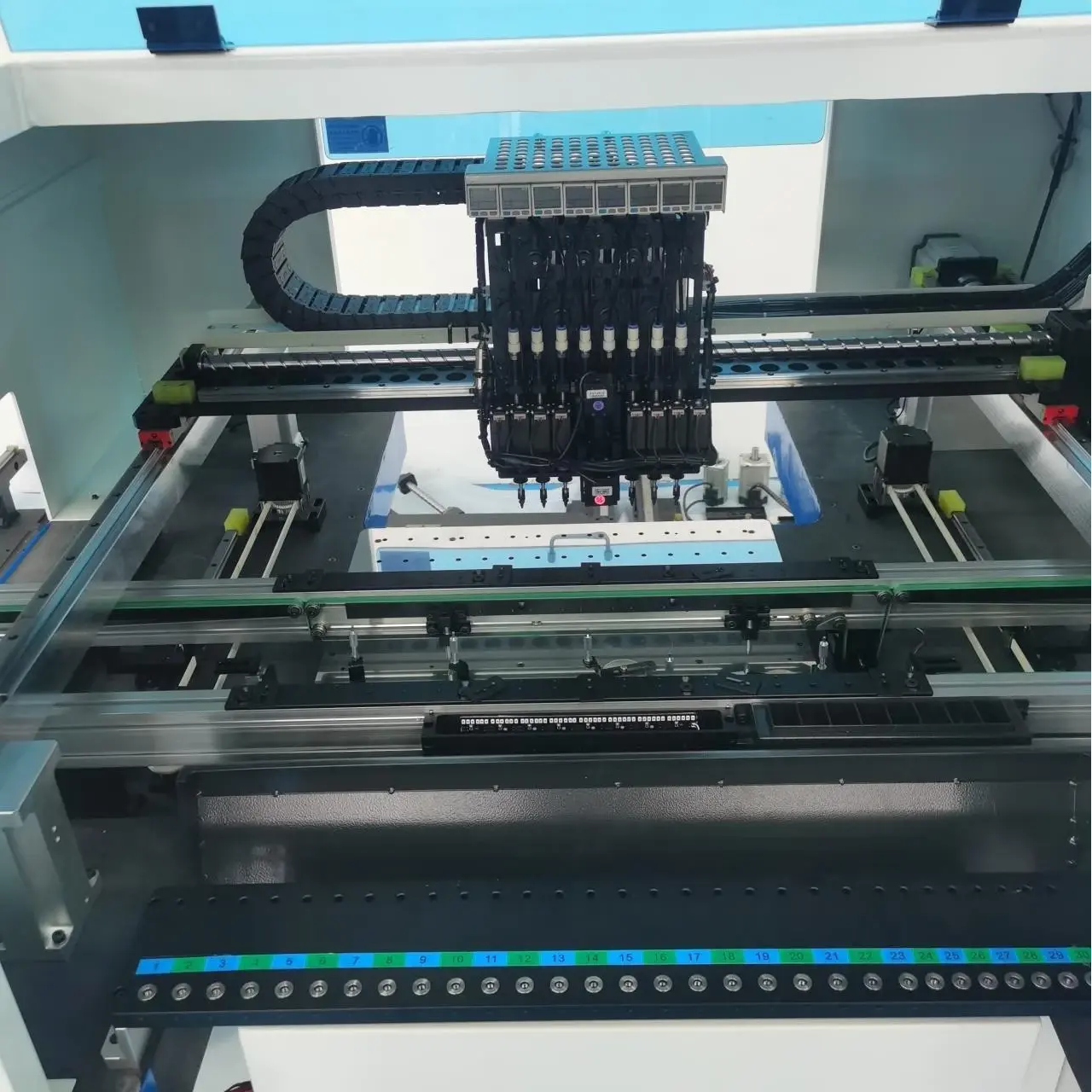

Powered by Panasonic servo motor drive systems (Japan imported) with TBI heavy-duty precision linear guides and ground ball screws to ensure both accuracy and speed
New granite base platform with additional 200kg weight significantly improves machine stability for long-term durability
Optimized design extends service life of ball screws and linear guides
HW-A8 Fully automatic pick-and-place machine Features
Fiducial mark alignment with substrate origin positioning (accuracy <0.05mm)
0-360° placement rotation with 0.1° precision
Independent nozzle rotation + 8 component recognition cameras
Wide application coverage:
Traditional LED strips
Bulbs/spotlights/downlights
Ceiling lights/guardrail tubes
LED drivers/control boards
Copper wire string lights
| Machine Specifications | System Specifications |
| Model: HW-A8 | Tape Feeder: Supports 8/12/16/24mm tape |
| Max PCB Size: 600×400mm (Extendable to 1200mm) | Feeder Capacity: 30×8mm standard feeders |
| Travel Range: X-axis 600mm / Y-axis 400mm | OS: Windows 7 |
| No. of Heads: 8-head configuration | Air Pressure: 0.55MPa |
| Z-axis Stroke: 12mm | Power Supply: 220V/50Hz/2.0kW |
| Max Speed: 40,000 CPH | Weight: 1200kg |
| Typical Speed: 15,000-30,000 CPH | Dimensions: 1350(L)×1300(W)×1450(H)mm |
| Placement Accuracy: ±0.05mm | Programming: Vision-guided auto programming |
| Conveyor System: Auto conveyor + 3-stage buffer | Vision System: Fiducial camera + 8 flying cameras (Optional high-precision) |
| Min Component: 0402 package (within 11mm) | Placeable Components: 0402 R/C, 3528/5050 LEDs, SOP/SOT ICs, Power drivers |
| Applications: LED tubes/strips/modules/displays | High-power Components: Supports large power devices |
High Efficiency: 8-head architecture achieves 40K CPH theoretical peak
Precision Control: ±50μm accuracy + optional high-precision vision
Power Compatibility: 220V standard voltage reduces retrofitting costs
Expandability: PCB length extendable to 1.2m (Specialized for LED strips)
