How To Optimize Your SMT Feeder Configuration for Different Components?

Views: 222     Author: Ann     Publish Time: 2025-12-25      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Content Menu

Understanding SMT Feeders

Types of SMT Feeders for Component Variety

Key Factors in SMT Feeder Optimization

Step-by-Step Optimization Process

>> Assess Component Mix

>> Configure Feeder Bank Layout

>> Calibrate for Precision

>> Test and Iterate

Optimizing for Specific Components

>> Small Passives (01005-0603)

>> Medium SMDs (0805-1210, SOICs)

>> Fine-Pitch ICs (QFN, BGA)

>> Odd-Form and Large Parts

Advanced Techniques with Intelligent SMT Feeders

Maintenance Best Practices for SMT Feeders

Common Pitfalls and Solutions

Integrating Highlywin SMT Solutions

Conclusion

FAQ

>> 1. What are the main types of SMT feeders?

>> 2. How do I choose SMT feeders for fine-pitch parts?

>> 3. What is the best layout for SMT feeder banks?

>> 4. How often should SMT feeders be calibrated?

>> 5. Where to source reliable SMT feeders?

Optimizing SMT feeders is crucial for high-efficiency PCB assembly in SMT production lines. Highlywin, a leading provider of SMT/AI/peripheral equipment and comprehensive SMT services, offers one-stop SMT solutions including top-quality SMT feeders for global customers. Proper SMT feeder configuration minimizes downtime, boosts throughput, and ensures precision across diverse components.

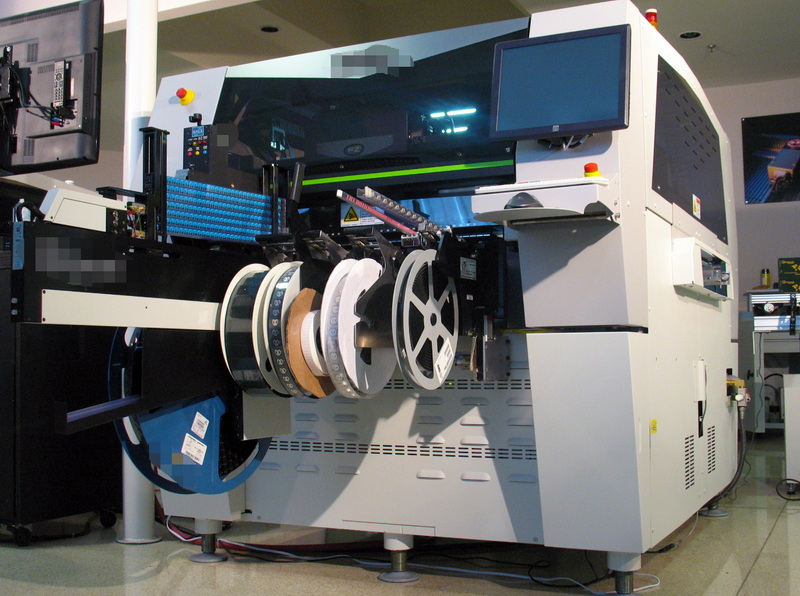

How To Optimize Your SMT Feeder Configuration for Different Components

Understanding SMT Feeders

SMT feeders supply components to pick-and-place machines reliably and at high speeds. These SMT feeders come in various types like tape, tray, tube, and bulk, each suited to specific component packages in SMT assembly. Tape SMT feeders handle reels of SMDs such as resistors and capacitors, while tray SMT feeders manage larger ICs or odd-form parts.

Optimizing SMT feeder setup starts with matching feeder type to component characteristics. For instance, narrow-pitch SMT feeders excel with 0402 chips, preventing jams in high-density boards. Highlywin's automatic SMT feeders support multiple tape widths from 8mm to 56mm, ensuring versatility across all SMT feeders in your production environment. Understanding the core mechanics of SMT feeders is essential; they must peel back the cover tape precisely, advance components via sprockets or motors, and present them at the optimal pickup height without misalignment. In high-volume SMT lines, even minor inefficiencies in SMT feeders can cascade into significant bottlenecks.

Types of SMT Feeders for Component Variety

Different components demand tailored SMT feeders to maintain production flow. Mechanical SMT feeders use sprockets for cost-effective tape feeding, ideal for standard resistors in mid-volume runs. Electric SMT feeders provide intelligent pitch control, perfect for delicate QFNs or BGAs requiring sub-millimeter accuracy.

Tray SMT feeders accommodate JEDEC trays for large components like connectors, reducing setup time via multi-tray magazines. Vibratory bowl SMT feeders handle loose radial leads, vibrating parts into orientation for automated placement. Stick or tube SMT feeders are indispensable for axial components, feeding them sequentially to avoid tangling. Highlywin stocks compatible SMT feeders for Yamaha, JUKI, Samsung, and Panasonic machines, enabling seamless integration into any SMT ecosystem. Bulk SMT feeders, often with centrifugal or linear vibration, excel for custom odd-form parts where tape packaging isn't feasible. Each type of SMT feeder must be selected based on component shape, size, and fragility to optimize overall line performance.

Key Factors in SMT Feeder Optimization

Component size, pitch, and packaging dictate SMT feeder choices. For fine-pitch QFNs (0.4mm), select high-precision SMT feeders with active peel-back to avoid cover tape residue. Polarity-sensitive parts like LEDs benefit from vision-verified SMT feeders that reject misoriented components pre-pickup.

Machine compatibility is vital—SMT feeders must match your pick-and-place model's base plate and communication protocol. Highlywin's universal SMT feeders adapt to multiple brands, reducing inventory needs. Factor in feeder bank capacity: position high-volume SMT feeders centrally to cut head travel distance. Environmental factors like humidity affect hygroscopic tapes in SMT feeders; use sealed covers for 0603 chips in humid factories. Speed ratings matter—intelligent SMT feeders hit 0.5ms/pitch for hyperloop lines over 200k CPH. Additionally, consider tape tension control in SMT feeders to prevent stretching or breakage, especially with embossed carrier tapes for larger MLCCs. Power consumption and noise levels also play roles in factory layouts, with low-vibration SMT feeders preferred for cleanroom environments.

Step-by-Step Optimization Process

Assess Component Mix

Inventory your BOM: group by type (e.g., 50% 0805 passives, 20% SOICs). Assign dedicated SMT feeders for top-usage parts to minimize changeovers. Highlywin's SMT feeder calibration tools analyze usage data for predictive stocking. Categorize components by feeder compatibility—small passives on 8mm tape SMT feeders, mid-size on 12-32mm, and trays for QFPs—to streamline procurement.

Configure Feeder Bank Layout

Place frequent SMT feeders near the machine center. For turret machines, cluster identical SMT feeders for parallel pickup. Use software like production optimizers to simulate paths, slashing cycle time by 20-30%. Optimize zoning: high-speed SMT feeders in outer banks for quick access, slower tray SMT feeders inward. Balance load across multiple heads by mirroring SMT feeder arrangements on dual lanes.

Calibrate for Precision

Zero SMT feeders daily: align sprockets to tape holes within 0.02mm. Test-feed 100 components per SMT feeder type, monitoring jam rates. Electric SMT feeders auto-calibrate via encoders, ideal for mixed 01005-1206 reels. Verify pickup height using no-pick sensors on advanced SMT feeders, adjusting for component thickness variations.

Test and Iterate

Run pilot boards: measure CPH, defect PPM, and uptime. Adjust SMT feeder pitch for tall components like inductors. Integrate with MES for real-time SMT feeder monitoring, alerting on low stock. Iterate based on data logs from smart SMT feeders, refining configurations for 99.9% uptime.

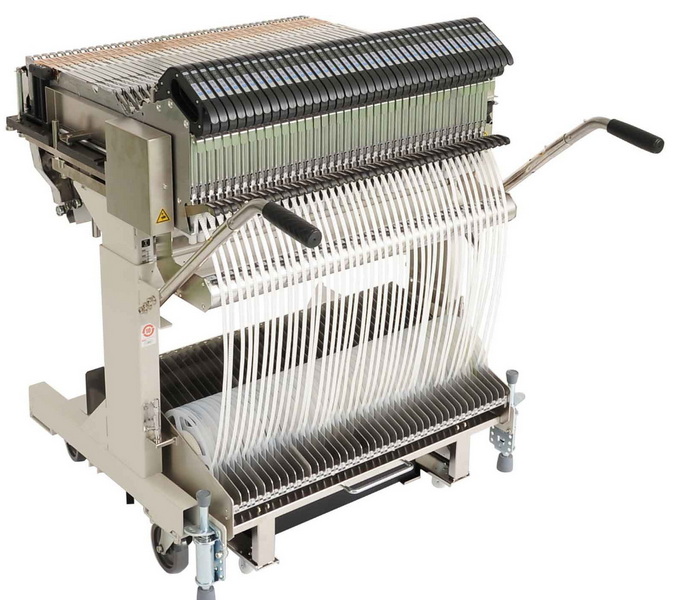

SMT Feeder Configuration Best Practices

Optimizing for Specific Components

Small Passives (01005-0603)

Ultra-narrow 8mm SMT feeders with low-vibration motors prevent tombstoning. Dual-lane SMT feeders double throughput for capacitors. Peel height optimization avoids flipping tiny chips. For 0201 parts, high-precision SMT feeders with vacuum assist ensure stable presentation.

Medium SMDs (0805-1210, SOICs)

16-24mm SMT feeders with reinforced sprockets handle higher tensions. Position these SMT feeders in primary banks for frequent access, cutting turret rotations. Anti-static features in SMT feeders protect sensitive passives from ESD damage.

Fine-Pitch ICs (QFN, BGA)

Intelligent SMT feeders with servo-driven peelers ensure flat delivery. Tray SMT feeders for prototypes allow quick swaps. Highlywin's high-temp SMT feeders suit lead-free processes, maintaining tape integrity at 260°C peaks.

Odd-Form and Large Parts

Bulk SMT feeders with custom escapements orient connectors. Tube SMT feeders for axials minimize bending. Multi-tray SMT feeders stack 10+ JEDEC trays for volume runs. Custom escapement SMT feeders handle unique shapes like fuses or relays.

For hybrid assemblies mixing SMDs and through-hole, versatile SMT feeders with quick-change modules reduce downtime. In high-mix environments, modular SMT feeders calibrated for multiple pitches per unit maximize flexibility.

Advanced Techniques with Intelligent SMT Feeders

Smart SMT feeders integrate IoT for predictive maintenance, tracking peel blade wear via sensors. AI-driven SMT feeders auto-adjust for tape slack, boosting uptime 15%. Highlywin's lineup features plug-and-play smart SMT feeders compatible with Industry 4.0 lines.

Family setups group shared SMT feeders across product variants, eliminating changeovers. Software balances lines by assigning SMT feeders based on speed/capacity. For high-mix, modular banks swap SMT feeders in <1min. Firmware updates enhance SMT feeder error codes for faster diagnostics. Dual-rail SMT feeders enable continuous feed during reel changes, critical for 24/7 operations. Edge computing in next-gen SMT feeders processes vision data onboard, reducing latency.

Maintenance Best Practices for SMT Feeders

Daily: Clean sprockets, check tape paths on all SMT feeders. Weekly: Lubricate gears, inspect peel blades. Monthly: Full calibration of electric SMT feeders. Stock spares like knives for tape SMT feeders to cut downtime. Preventive swaps: Rotate SMT feeders to even wear. Environment: 40-60% RH prevents static in SMT feeders. Highlywin provides OEM-grade spare SMT feeders with 24h global shipping. Implement TPM schedules tailored to SMT feeder usage hours, logging maintenance via apps for traceability.

Common Pitfalls and Solutions

Overloading SMT feeders causes jams—limit to 80% capacity. Mismatched pitches warps tapes; verify specs per SMT feeder. Poor layout spikes head travel—use optimizers. Solution: Highlywin's consulting optimizes your SMT feeder ecosystem end-to-end. Ignoring firmware leaves SMT feeders outdated. Vibrations loosen mechanical SMT feeders—secure mounts. Dust accumulation clogs peel mechanisms in SMT feeders; use air blowers routinely.

Integrating Highlywin SMT Solutions

Highlywin delivers calibrated SMT feeders, peripherals, and services for turnkey lines. Our automatic SMT feeders support 0.2mm pitch, with stocking for urgent needs. Partner with us for optimized SMT feeder configs tailored to your components—contact info@winmachine.com. From feeder banks to full AOI integration, Highlywin ensures your SMT feeders perform at peak efficiency.

Conclusion

Mastering SMT feeder configuration elevates your SMT line from good to world-class, slashing costs and soaring yields. By selecting, positioning, calibrating, and maintaining the right SMT feeders for each component, you unlock peak performance across small passives, fine-pitch ICs, and odd-forms. Highlywin empowers your success with reliable SMT feeders, expert services, and one-stop solutions—optimize today for tomorrow's demands in competitive SMT manufacturing.

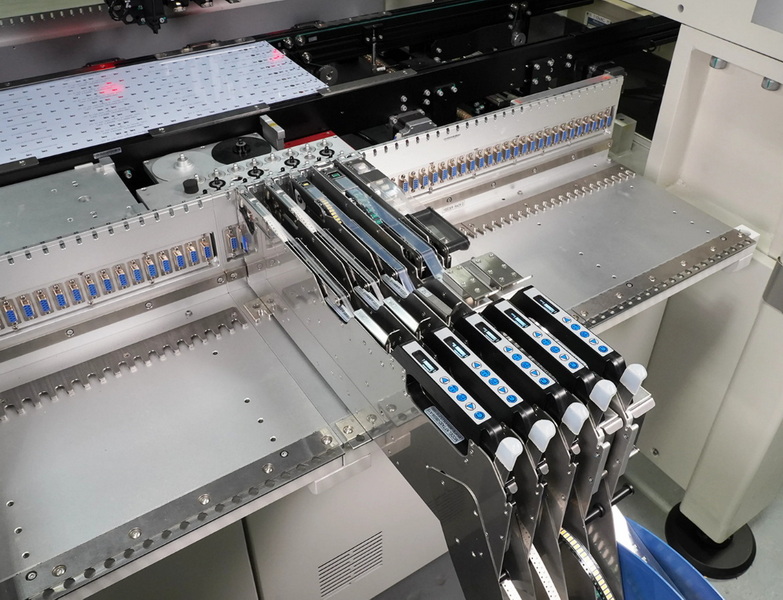

SMT Feeder For Different Components

FAQ

1. What are the main types of SMT feeders?

SMT feeders include tape, tray, tube, and bulk types. Tape SMT feeders suit reels, tray SMT feeders handle ICs, ensuring compatibility with diverse components.

2. How do I choose SMT feeders for fine-pitch parts?

Opt for electric SMT feeders with precise peelers for QFNs/BGAs. Check tape width and machine match to avoid errors.

3. What is the best layout for SMT feeder banks?

Cluster high-use SMT feeders centrally to minimize head travel. Use software for simulation.

4. How often should SMT feeders be calibrated?

Daily for production SMT feeders, focusing on pitch and alignment. Auto-features in smart SMT feeders reduce frequency.

5. Where to source reliable SMT feeders?

Highlywin offers wholesale SMT feeders for global brands, with fast delivery and services.
