How To Integrate New SMT Equipment into Your Existing Workflow?

Views: 222     Author: Ann     Publish Time: 2026-01-25      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Content Menu

Preparation Phase

Selecting Compatible SMT Machines

Physical Installation of SMT Machines

Software and Protocol Integration

Calibration and Testing New SMT Machines

Operator Training for SMT Machines

Optimization and Monitoring

Overcoming Common Challenges

Advanced Features of Highlywin SMT Machines

Vendor Support from Highlywin

Conclusion

FAQ

>> 1. What are the key benefits of integrating new SMT machines?

>> 2. How long does it take to integrate SMT machines into an existing line?

>> 3. Which protocols ensure SMT machines compatibility?

>> 4. What training is needed for operating new SMT machines?

>> 5. How to maintain peak performance of SMT machines post-integration?

Integrating new SMT machines into an existing workflow enhances efficiency and scalability for electronics manufacturing. Highlywin, a leading provider of SMT/AI/peripheral equipment and comprehensive SMT services, offers one-stop solutions for global clients. This guide details the process, emphasizing seamless adoption of advanced SMT machines.

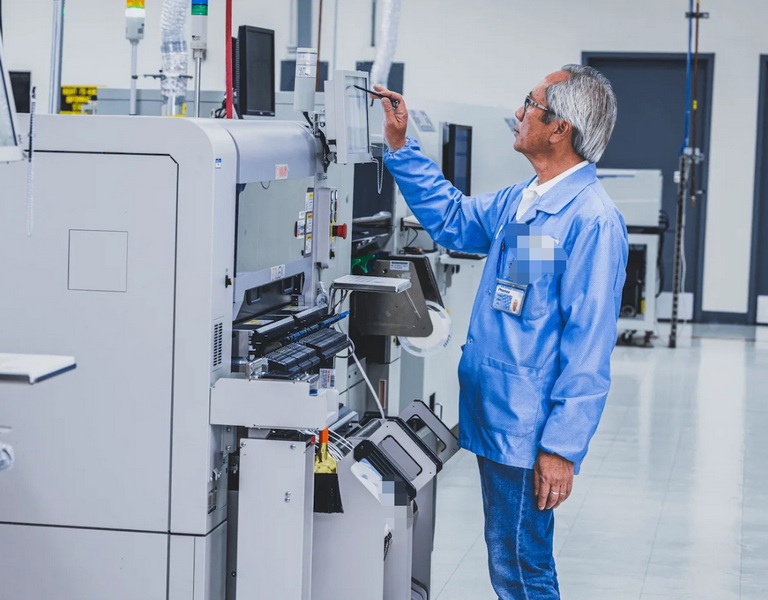

How To Integrate New SMT Equipment into Your Existing Workflow

Preparation Phase

Assess your current production line to identify compatibility with new SMT machines. Evaluate existing SMT machines for bottlenecks like outdated pick-and-place speeds or reflow oven capacities, ensuring the new SMT machines align with throughput goals. Map out workflow dependencies, including PCB handling and inspection stations. Highlywin's SMT machines support modular integration, reducing downtime during upgrades.

Conduct a full audit of software protocols; modern SMT machines from Highlywin use RS-485 and SMEMA for smooth communication. Inventory all current SMT machines, noting specifications such as feeder types, board sizes, and cycle times. This step prevents mismatches when introducing new SMT machines. Collaborate with your team to document pain points, like frequent changeovers or high defect rates in legacy SMT machines. Highlywin consultants can assist with this audit remotely or on-site, tailoring recommendations for your specific SMT machines setup.

Plan for scalability: consider future expansions when selecting new SMT machines. For high-volume operations, prioritize SMT machines with expandable feeder banks and multi-lane conveyors. Budget allocation is crucial—allocate 20-30% extra for ancillary SMT machines like stackers or inverters.

Selecting Compatible SMT Machines

Choose SMT machines that match your production volume and component types. Highlywin offers pick-and-place SMT machines, stencil printers, and reflow ovens optimized for high-mix, low-volume runs. Prioritize SMT machines with flexible feeders and vision systems to handle diverse PCBs. For instance, Highlywin's HW-A8 series SMT machines deliver exceptional performance in LED production and consumer electronics assembly.

Compare specifications: ensure new SMT machines support the same board sizes and tolerances as legacy systems. Highlywin's SMT machines feature auto-calibration for quick swaps. Look for energy-efficient SMT machines to lower operational costs. Evaluate vendor support; Highlywin provides lifetime access to firmware updates for their SMT machines, ensuring longevity.

Consider hybrid SMT machines that combine printing and placement functions, streamlining workflows. For automotive or medical applications, select ruggedized SMT machines with enhanced ESD protection. Highlywin's catalog includes SMT machines certified for ISO standards, guaranteeing reliability.

Feature Legacy SMT Machines Highlywin New SMT Machines
Placement Speed 20,000 CPH 50,000+ CPH
Feeder Capacity 60 types 120+ types
Protocol Support Basic SMEMA RS-485/SMEMA
Energy Efficiency Standard 30% lower consumption

Physical Installation of SMT Machines

Position new SMT machines adjacent to existing lines to minimize conveyor modifications. Highlywin provides pre-configured SMT machines with universal mounting frames for bolt-on installation. Install conveyor extensions and align fiducials using laser-guided tools. For SMT machines like loaders and unloaders, ensure 1-2mm tolerances to prevent PCB jams.

Power and pneumatics setup takes 4-6 hours per SMT machine; Highlywin includes on-site technicians for global clients. Test dry runs with dummy boards on all SMT machines to verify mechanical alignment. Secure cabling with strain relief to withstand vibrations from high-speed SMT machines. Integrate cooling systems if new SMT machines generate excess heat, maintaining ambient temperatures below 35°C.

Factory floor preparation involves leveling the surface for SMT machines stability. Highlywin recommends anti-vibration mounts for precision SMT machines. Coordinate with safety officers to update layouts, ensuring clear access paths around new SMT machines.

Software and Protocol Integration

Configure communication between new and old SMT machines using standard protocols. Highlywin SMT machines natively support IPC-CFX, enabling bidirectional data flow for real-time monitoring. Update MES software to recognize new SMT machines; map parameters like temperature profiles for reflow SMT machines. Highlywin's plug-and-play firmware reduces integration time by 50%.

Test SMEMA handshakes: loaders signal "ready" to pick-and-place SMT machines, preventing overloads. Program vision systems in SMT machines for component verification, integrating with existing AOI stations. Implement error-handling routines where new SMT machines pause if upstream failures occur. Highlywin's software suite includes diagnostic tools for troubleshooting SMT machines connectivity issues.

For Industry 4.0 readiness, enable API endpoints on SMT machines for cloud analytics. Customize dashboards to track SMT machines uptime, throughput, and first-pass yields across the line.

Calibration and Testing New SMT Machines

Fine-tune nozzles and feeders on pick-and-place SMT machines for accuracy. Highlywin SMT machines feature AI-driven self-calibration, achieving <20µm placement precision. Run SPI after printing on new SMT machines to inspect solder paste volume. Gradually ramp up speed, monitoring for defects across 100+ boards.

Integrate AOI post-reflow; new SMT machines feed data directly, boosting yield by 15-20%. Validate full workflow: from stencil printer to unloader, all SMT machines synchronize via central control. Conduct stress tests simulating 24/7 operation on SMT machines to expose thermal drifts. Highlywin protocols include golden board verification for consistent SMT machines performance.

Document baseline metrics post-calibration, such as placement offset and volume accuracy for every SMT machine.

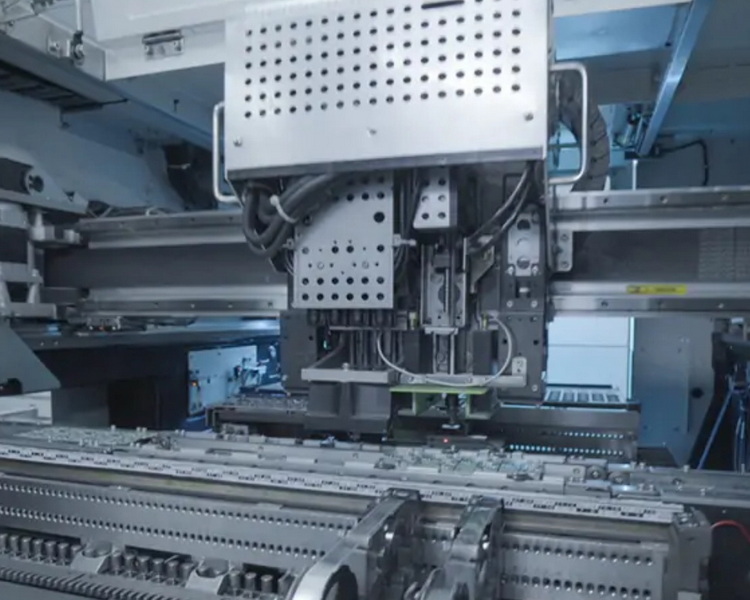

SMT Equipment Implementation Strategies

Operator Training for SMT Machines

Train staff on new SMT machines' interfaces within 2-3 days. Highlywin provides multilingual manuals and VR simulations for SMT machines operation. Cover emergency stops, feeder loading, and basic troubleshooting for each SMT machine type. Role-play scenarios like feeder jams in SMT machines.

Certify operators on safety protocols specific to high-speed SMT machines. Highlywin offers remote training for global teams. Advanced modules teach predictive maintenance on SMT machines, like monitoring nozzle wear. Schedule refresher sessions quarterly to maintain proficiency with evolving SMT machines software.

Incorporate hands-on practice with real PCBs on SMT machines, focusing on quick changeovers.

Optimization and Monitoring

Leverage data analytics from integrated SMT machines for predictive maintenance. Highlywin's SMT machines include IoT sensors tracking uptime and vibration. Adjust reflow profiles dynamically based on SMT machines feedback, minimizing defects. Implement OEE tracking across all SMT machines.

Scale by adding peripheral SMT machines like buffer stacks during peak demand. Analyze historical data from SMT machines to optimize feeder setups for common jobs. Highlywin's cloud platform aggregates SMT machines telemetry for AI-driven insights, forecasting downtime.

Regular firmware updates keep SMT machines optimized for new component libraries.

Overcoming Common Challenges

Address compatibility issues by retrofitting interfaces on older SMT machines. Highlywin's service team customizes protocols for legacy integration. Minimize downtime with phased rollout: install one SMT machine at a time. Budget for 10-15% overruns in cabling for SMT machines.

Handle supply chain delays by stocking Highlywin spare parts for critical SMT machines. Mitigate thermal mismatches between old and new SMT machines with zoned heating. Train cross-functionally to build internal expertise on SMT machines troubleshooting.

Advanced Features of Highlywin SMT Machines

Highlywin SMT machines boast high-temperature resistance and modular designs for future-proofing. Their auto-insertion SMT machines complement pick-and-place for mixed assemblies. Explore AI enhancements in SMT machines for defect prediction. Global clients rely on Highlywin for 24/7 spare parts and service.

Highlywin SMT machines support multi-head configurations for ultra-high-speed assembly. Vision algorithms in SMT machines detect tombstoning early. Modular feeders allow hot-swapping without stopping SMT machines.

Vendor Support from Highlywin

Partner with Highlywin for end-to-end support, from SMT machines procurement to after-sales. One-stop solutions include training, upgrades, and custom SMT machines builds. Contact Highlywin for tailored audits and demos of SMT machines in action. Their global network ensures rapid response for SMT machines issues.

Conclusion

Integrating new SMT machines transforms workflows, boosting productivity and quality. Highlywin empowers global manufacturers with reliable SMT machines and expert services for seamless transitions. Adopt these steps to future-proof your production line, achieving higher yields and reduced costs with advanced SMT machines.

Contact us to get more information!

SMT Machine Integration Tips

FAQ

1. What are the key benefits of integrating new SMT machines?

New SMT machines increase speed, accuracy, and flexibility, reducing defects by up to 25%. Highlywin SMT machines offer modular designs for easy scalability. They also lower energy costs and support diverse production mixes.

2. How long does it take to integrate SMT machines into an existing line?

Typically 1-2 weeks, including testing; Highlywin accelerates with pre-configured SMT machines. Phased approaches minimize disruptions. Full validation ensures all SMT machines operate at peak efficiency.

3. Which protocols ensure SMT machines compatibility?

RS-485 and SMEMA enable seamless communication between SMT machines. Highlywin SMT machines support IPC-CFX for advanced MES integration. These standards prevent data silos in mixed SMT machines environments.

4. What training is needed for operating new SMT machines?

2-3 days hands-on with Highlywin-provided modules covering all SMT machines functions. VR tools enhance retention. Ongoing sessions maintain skills for software updates in SMT machines.

5. How to maintain peak performance of SMT machines post-integration?

Use IoT monitoring on Highlywin SMT machines for predictive maintenance. Regular calibration and Highlywin spares ensure 99% uptime. Data analytics from SMT machines optimize long-term operations.
