SMT Pick And Place Machines are pivotal in surface mount technology (SMT) production lines, automating the precise placement of electronic components onto printed circuit boards (PCBs). Highlywin, as a premier supplier of SMT/AI/peripheral equipment and comprehensive service support including spare parts sales, offers global customers one-stop SMT solutions powered by advanced SMT Pick And Place Machines.

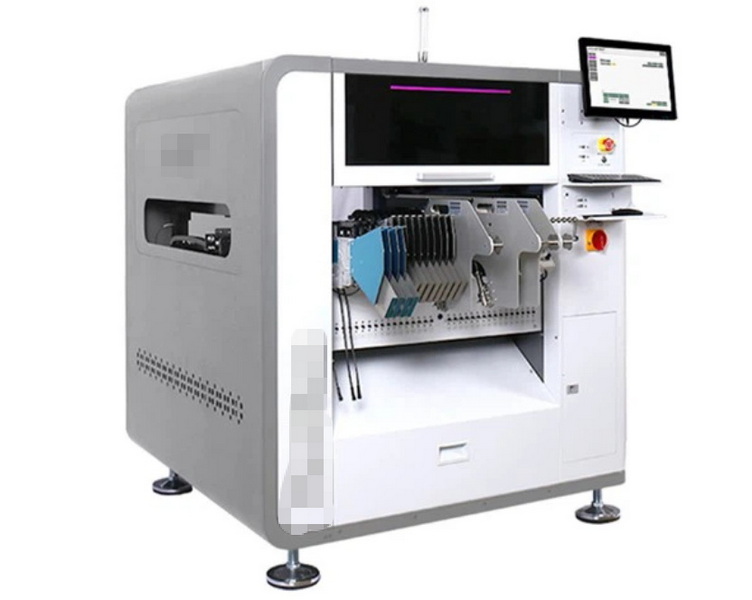

The Essential Components of SMT Pick And Place Machines What You Should Know

Main Frame and Structural Foundation

The main frame serves as the sturdy backbone of every SMT Pick And Place Machine, ensuring stability during high-speed operations. Constructed from high-grade aluminum or steel alloys, this framework supports the weight of moving parts and withstands vibrations inherent in rapid component placement cycles within the SMT Pick And Place Machine. Key elements include the power switch for safe startup, visual displays for real-time image analysis, and operation screens that interface with the SMT Pick And Place Machine's software for monitoring production metrics.

Warning lights on the SMT Pick And Place Machine panel—green for normal operation, yellow for alerts, and red for emergencies—provide instant visual feedback to operators. Emergency stop buttons, strategically placed around the SMT Pick And Place Machine, allow immediate halts to prevent accidents. Conveyor rails integrated into the frame transport PCBs smoothly through the SMT Pick And Place Machine, featuring main stoppers, positioning pins, edge clamps, and push-up plates that secure boards firmly during the placement process in the SMT Pick And Place Machine.

These structural components in SMT Pick And Place Machines are designed for modularity, allowing easy upgrades and maintenance. In high-volume manufacturing environments, the robustness of the main frame directly impacts the uptime and reliability of the SMT Pick And Place Machine, making it a critical investment for electronics assemblers worldwide.

Working Head Assembly and Nozzle Systems

At the heart of the SMT Pick And Place Machine lies the working head assembly, responsible for picking components from feeders and placing them accurately on PCBs. This assembly moves along XY axes with servo-controlled precision, featuring multiple nozzles—typically seven standard ones, expandable to 16 or more—for handling diverse component sizes in the SMT Pick And Place Machine. Each nozzle in the SMT Pick And Place Machine is equipped with vacuum suction, enabling reliable pickup of tiny 0201 resistors to larger QFNs and BGAs.

Manual handles on the working head allow fine adjustments during initial setup of the SMT Pick And Place Machine, while automated nozzle changers ensure seamless transitions between component types. High-end SMT Pick And Place Machines employ multi-head configurations, where several working heads operate in tandem to boost throughput to tens of thousands of placements per hour. The rotation (R-axis) capability of nozzles in the SMT Pick And Place Machine corrects component orientation post-pickup, minimizing errors.

Advanced materials like ceramic or hardened steel in nozzles enhance durability in demanding SMT Pick And Place Machine applications. Video demonstrations of working heads in action reveal the ballet-like precision of these systems, picking, rotating, and placing components at blistering speeds within the SMT Pick And Place Machine.

Sophisticated Vision Systems

Vision systems elevate the accuracy of SMT Pick And Place Machines by providing optical inspection at multiple stages. Moving lenses scan PCB fiducials for alignment, while stationary or independent lenses identify component leads, such as those on QFPs or SOPs, before placement in the SMT Pick And Place Machine. Backlit modules illuminate translucent parts, and laser scanners measure heights for 3D profiling in modern SMT Pick And Place Machines.

Multi-camera setups in SMT Pick And Place Machines enable parallel processing, drastically reducing cycle times. Algorithms process images in real-time to detect defects, rotate components, and verify post-placement positions, ensuring defect rates below 10 ppm in high-reliability SMT Pick And Place Machine operations. Top-mounted and side-view cameras work synergistically, with AI enhancements in newer SMT Pick And Place Machines predicting and compensating for feeder vibrations or thermal expansions.

Calibration routines for vision systems are routine in SMT Pick And Place Machines, using reference fiducials to maintain sub-micron precision. These systems not only boost yield but also support high-mix production where SMT Pick And Place Machines handle thousands of unique part numbers daily.

Feeding Platforms and Component Supply

Efficient component delivery is managed by the feeding platform in SMT Pick And Place Machines, supporting tape, tray, tube, stick, and bulk feeders. Front and rear platforms accommodate up to 100+ feeders, with tape reels holding SMDs like capacitors and ICs for continuous supply to the SMT Pick And Place Machine. Intelligent feeders auto-adjust pitch and detect empty reels, preventing downtime in the SMT Pick And Place Machine.

Tray feeders handle odd-form components, such as connectors or large passives, via matrix positioning in SMT Pick And Place Machines. Vibratory bowl feeders for bulk parts vibrate components into alignment for robotic pickup in prototyping SMT Pick And Place Machines. Peel mechanisms on tape feeders strip cover tape precisely, exposing parts for vacuum pickup by the SMT Pick And Place Machine heads.

High-capacity setups in industrial SMT Pick And Place Machines integrate with automated storage, enabling lights-out manufacturing. Feeder calibration ensures consistent presentation, critical for the flawless performance of every SMT Pick And Place Machine.

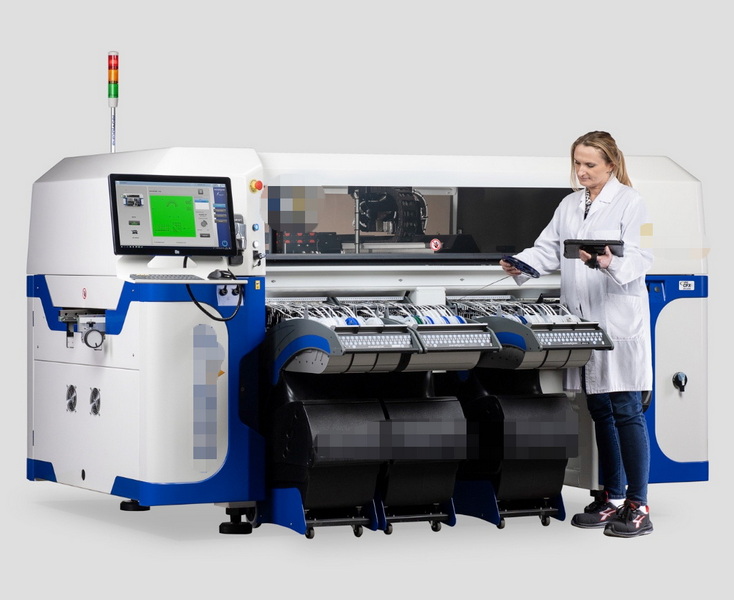

SMT Pick And Place Guide

Precision Axis Mechanisms

SMT Pick And Place Machines coordinate multiple axes for fluid motion: X-axis parallel to PCB flow, Y-axis perpendicular, Z-axis for vertical travel, R-axis for rotation, and W-axis for rail width adjustment. Linear motors and ball screws drive these axes with micron-level accuracy in SMT Pick And Place Machines, guided by optical encoders for feedback.

Gantry-style SMT Pick And Place Machines feature dual-beam structures for ultra-high speeds, placing over 90,000 components per hour (CPH). Turret heads rotate fixed stations in radial SMT Pick And Place Machines, ideal for high-volume single-type production. Servo amplifiers ensure synchronized movements, preventing collisions in complex SMT Pick And Place Machine paths.

Theta (fine rotation) axes refine alignment post-vision correction in advanced SMT Pick And Place Machines. These mechanisms form the dynamic core, enabling the versatility that defines modern SMT Pick And Place Machines.

Transport Rails and PCB Handling

Transport rails in SMT Pick And Place Machines facilitate seamless PCB flow, with input pushers, entrance plates, and upthrust pins for entry and exit. Edge clamps grip boards securely, while push-up plates lift them for optimal placement height in the SMT Pick And Place Machine. Modular segments support SMEMA standards for inline integration with printers, ovens, and AOI machines.

Width-adjustable rails in flexible SMT Pick And Place Machines handle panels from 50mm to 510mm. Tensioners maintain belt tautness, ensuring jerk-free transport through the SMT Pick And Place Machine. Flip stations and dual-rails enable double-sided assembly in sophisticated SMT Pick And Place Machines.

Nozzle Stations and Tooling Management

Dedicated nozzle stations in SMT Pick And Place Machines store and exchange up to 20+ nozzles automatically, covering sizes from 0.4mm to 20mm for all component reels. Vacuum verification prevents failed pickups, extending uptime in the SMT Pick And Place Machine. Custom tooling for odd-shapes enhances SMT Pick And Place Machine adaptability.

Air Supply and Pneumatic Systems

Clean, regulated air powers vacuum and pneumatic actuators in SMT Pick And Place Machines. Filters remove contaminants, pressure regulators maintain 0.4-0.6 MPa, and gauges monitor stability for consistent SMT Pick And Place Machine performance. Redundant pumps ensure failover in mission-critical setups.

Control Systems and Software Integration

Touchscreen HMIs on SMT Pick And Place Machines display CAD imports, optimization algorithms, and diagnostics. Offline programming software simulates runs to minimize setup time for SMT Pick And Place Machines. Industry 4.0 connectivity enables MES integration, tracking every placement in SMT Pick And Place Machines.

Robotic Arms, Gantries, and Feeders

Robotic arms with hybrid flying/rotary heads combine speed and flexibility in SMT Pick And Place Machines. Tape feeders advance precisely, while stick and bulk systems support NPI in SMT Pick And Place Machines.

SMT Line Integration and Maintenance

SMT Pick And Place Machines anchor lines with printers, ovens, and testers. Highlywin's services optimize these for peak efficiency. Maintenance includes daily nozzle cleans, weekly calibrations, and predictive analytics in smart SMT Pick And Place Machines.

Advancements and Selection Criteria

Next-gen SMT Pick And Place Machines boast 3D AOI, AI optimization, and 200,000+ CPH. Select by CPH, feeder slots, component range, and ROI for your SMT Pick And Place Machine needs—Highlywin customizes perfectly.

Conclusion

Mastering the components of SMT Pick And Place Machines unlocks superior manufacturing efficiency. From frames to AI-driven vision, each element synergizes for precision. Highlywin equips you with elite SMT Pick And Place Machines, spares, and support for global success.

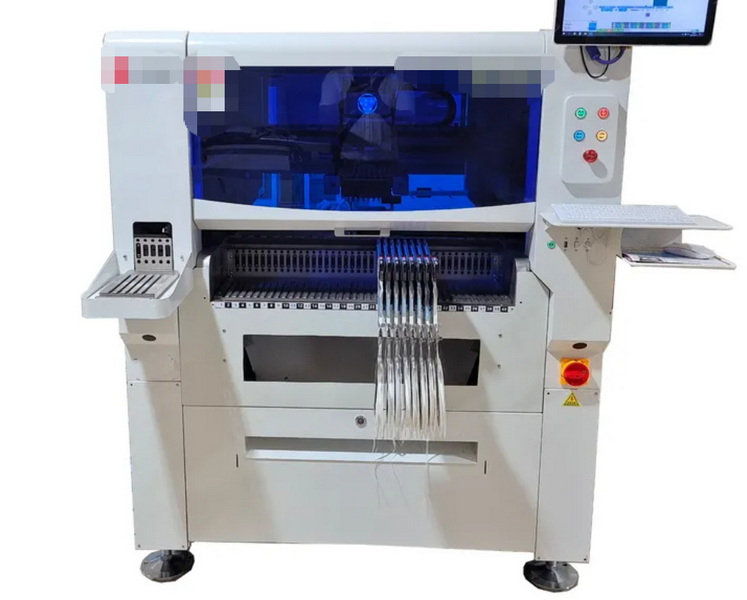

SMT Pick And Place Head

FAQ

1. What is an SMT Pick And Place Machine?

An SMT Pick And Place Machine automates precise component placement on PCBs using robotics, vision, and feeders for high-volume electronics assembly.

2. What are the key components of SMT Pick And Place Machines?

Essential parts include main frames, working heads, vision systems, feeders, axes, nozzles, and control software, all vital for SMT Pick And Place Machine operation.

3. How do vision systems enhance SMT Pick And Place Machines?

Vision systems in SMT Pick And Place Machines identify, align, and verify components via cameras and AI, ensuring micron accuracy and low defects.

4. What placement speeds do modern SMT Pick And Place Machines achieve?

Premium SMT Pick And Place Machines reach 50,000-200,000+ CPH, scaling with model complexity and configuration.

5. What maintenance is required for SMT Pick And Place Machines?

Routine tasks for SMT Pick And Place Machines involve nozzle cleaning, vision calibration, feeder checks, and software updates to sustain peak performance.
