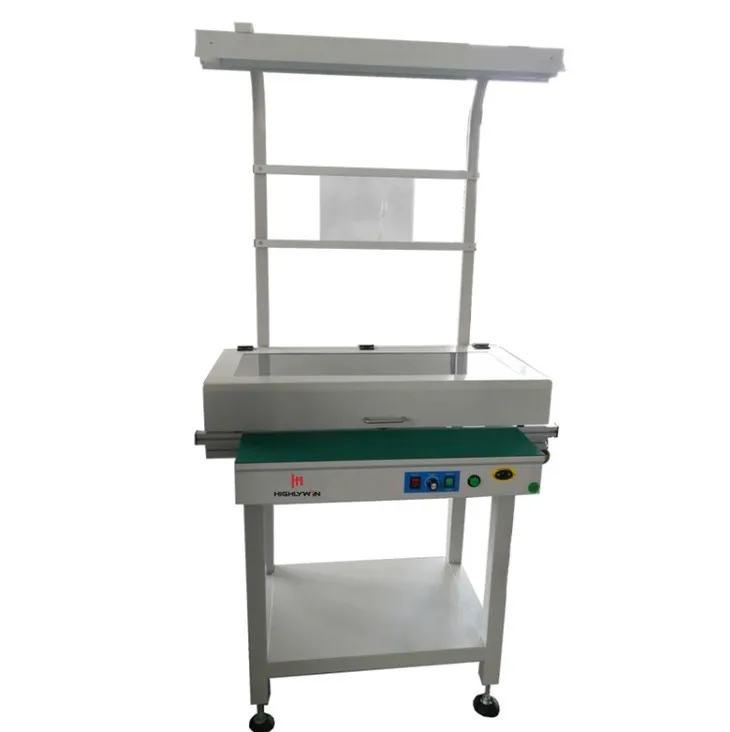

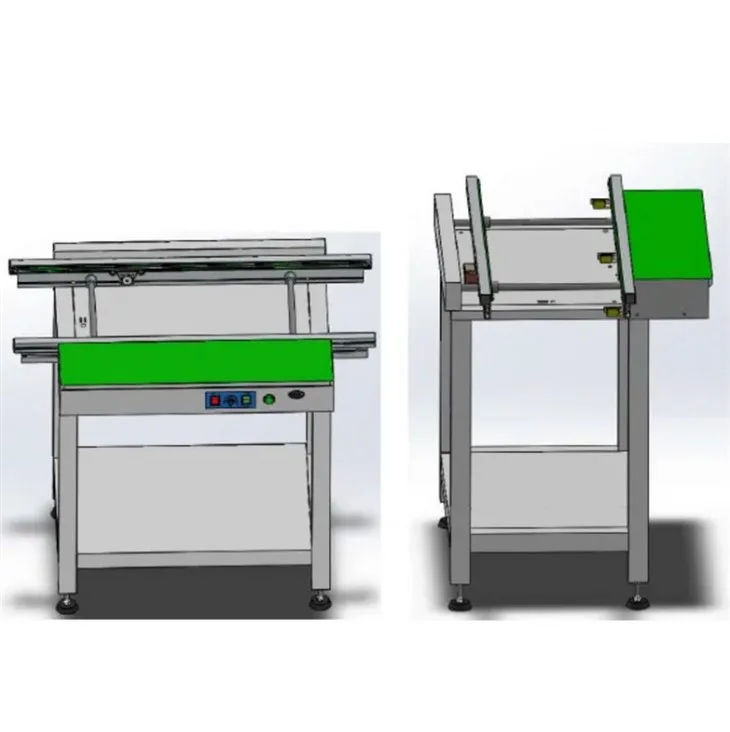

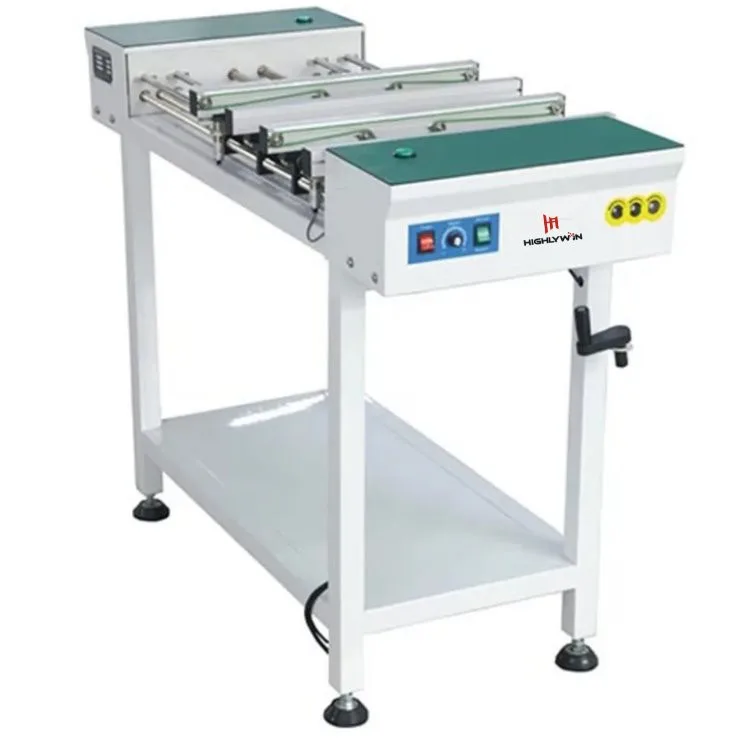

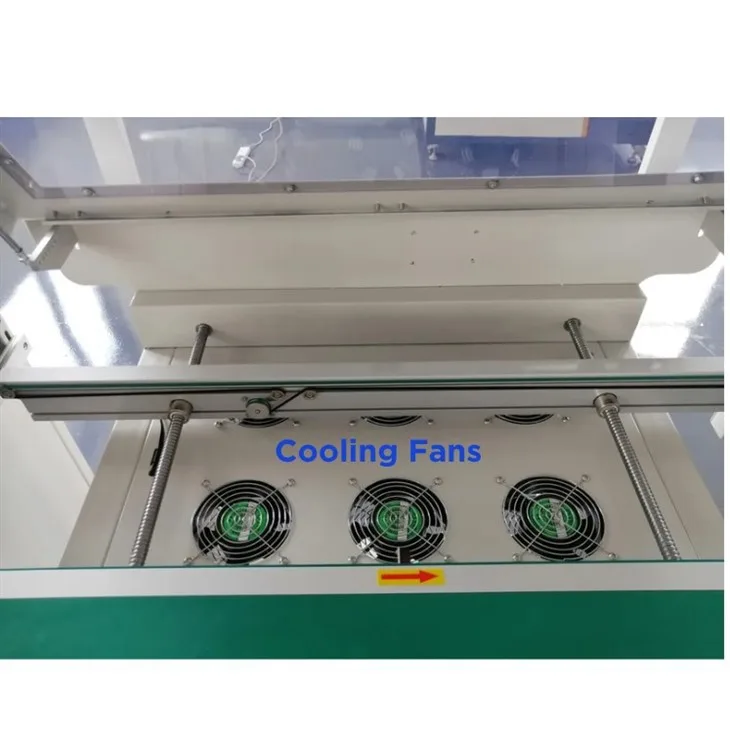

SMT PCB Automatic Unloader Advantages
This series device is using at the terminal of the SMT PCB production line for automatic unloading of PCBs.
After receiving the board signal from the host, while receiving the PCB piece by piece, then push the PCB into the material rack for storage or transfer.
Our innovative design ensures that PCBs are unloaded from magazines quickly and efficiently, reducing wait times and increasing throughput. Its advanced technology ensures that sensitive components are handled with care, reducing the risk of damage, and ensuring high-quality output.
Stable structure design, easy operation.
Standard SMEMA is compatible, SMEMA cables are included.
PLC program control.
Selectable pitch setting.
User-friendly “soft touch” LED membrane control panel.
Flexible platform to suit standard magazines.
Top and bottom pneumatic clamps to secure the magazine rack.
The pusher position is adjustable to the center of the magazine rack.
Transport Information
Transport Height: 900 ± 20 mm (or customized)
Transfer Direction: L to R or R to L
Power Supply: AC1P 110V or 220V
Power: Max 300 VA
Air Supply: 4-6 bar, 10 ltr/min max
PCB Loading Time: Approx. 6s (or specify)
Magazine Change Over Time: Approx. 30s (or specify)
Magazine Quantity: 2 pcs (upper 1, lower 1)
Models Overview
Model: HUL250
Dimension: 1730 x 765 x 1250 mm
PCB Size: 50 x 80 – 330 x 250 mm
Rack Size: 355 x 320 x 563 mm
Weight: 160 kg
Model: HUL330
Dimension: 2065 x 845 x 1250 mm
PCB Size: 50 x 80 – 445 x 250 mm
Rack Size: 460 x 400 x 563 mm
Weight: 220 kg
Model: HUL390
Dimension: 2260 x 909 x 1250 mm
PCB Size: 50 x 80 – 530 x 390 mm
Rack Size: 535 x 460 x 563 mm
Weight: 280 kg
Model: HUL460
Dimension: 2260 x 1230 x 1250 mm
PCB Size: 50 x 80 – 610 x 460 mm
Rack Size: 630 x 530 x 563 mm
Weight: 450 kg
Yellow light: Indicates that it is in manual status.
Red light: This means the machine in a stop status, and the emergency button is pressed.
The red light flashed: Abnormal operation and buzzer sounds.
