SMT machines can range from thousands to millions of dollars, depending on whether you’re looking at entry-level machines for small-scale production or high-end, fully automated lines designed for mass production. For instance, a basic pick-and-place machine could start around $10,000, while a top-of-the-line, fully automated SMT line with advanced features like those from Mycronic could easily exceed $1 million, considering the advanced software and precision engineering they offer.
The cost of Surface Mount Technology (SMT) machines can vary significantly depending on the type, features, and capabilities of the equipment. Highlywin provides some of the most cost-effective and high-quality SMT equipment solutions in the market. Understanding Surface mount technology machine cost is essential for making informed purchasing decisions. Here are some detailed aspects to consider:

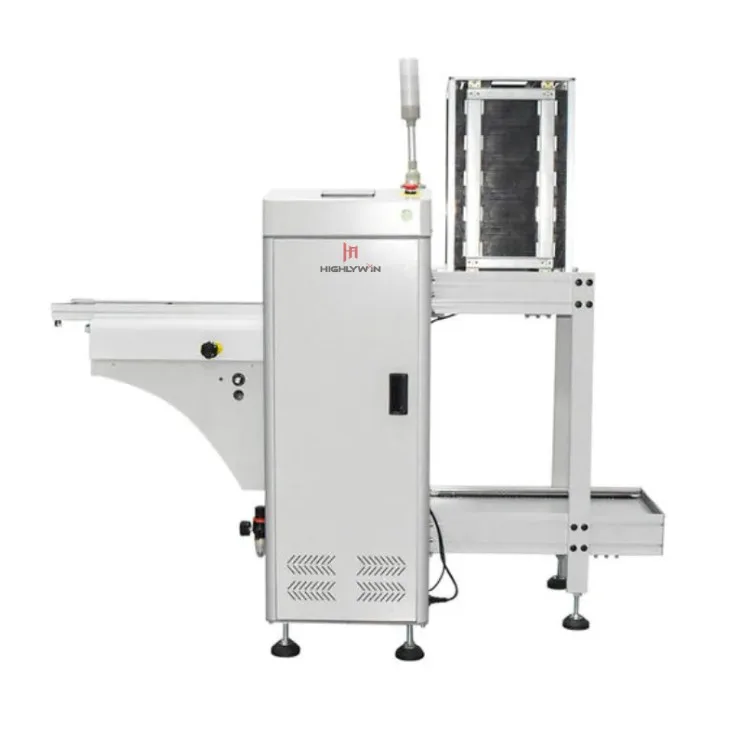

Function: Loads PCB boards into the production line.
Cost Range: Approximately $5,000 to $20,000
Features: Suitable for various scales of production, with optional automation levels.
Function: Applies solder paste onto PCB boards.
Cost Range: Approximately $10,000 to $100,000
Features:
Manual/Semi-Automatic: $10,000 to $20,000, suitable for small batch production.
Fully Automatic: $20,000 to $100,000, suitable for medium to large batch production, offering high precision and automation.
Function: Mixes solder paste to ensure consistency and appropriate volume.
Cost Range: Approximately $5,000 to $20,000
Features: Ensures uniformity and stability of solder paste, improving printing quality.
Function: Ensures high quality standards by measuring the thickness and position of solder paste.
Cost Range: Approximately $20,000 to $50,000
Features: Uses advanced optical technology for detection, reducing defect rates.
Function: Precisely places surface-mount components onto the correct positions on PCB boards and adjusts orientation.
Cost Range: Approximately $50,000 to $1,000,000
Features:
Low-Speed Single-Head: $50,000 to $100,000, suitable for small-scale production.
Medium-Speed Multi-Head: $100,000 to $300,000, suitable for medium-scale production.
High-Speed Multi-Head: $300,000 to $1,000,000, suitable for large-scale production, offering high precision and speed.

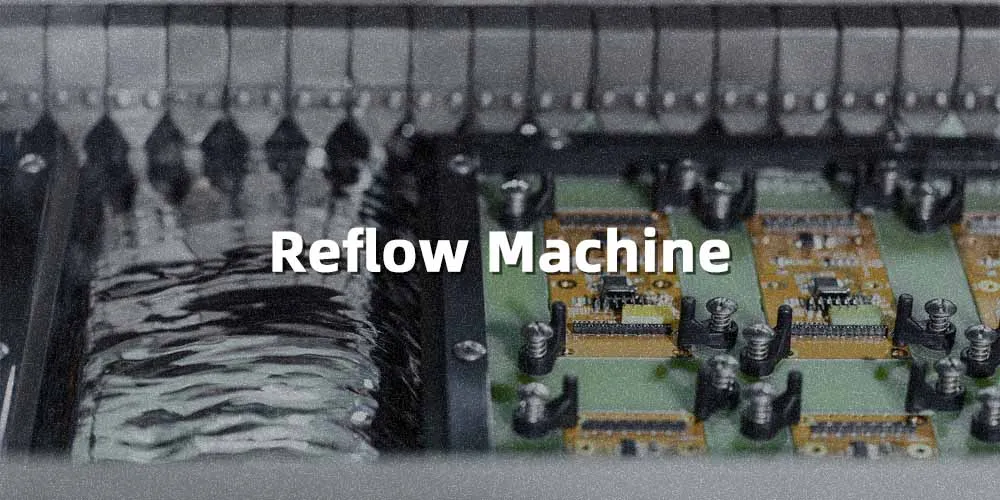

Function: Melts solder paste through heating to fix components onto PCB boards.
Cost Range: Approximately $10,000 to $100,000
Features:
Small Convection Oven: $10,000 to $20,000, suitable for small batch production.
Medium Convection Oven: $20,000 to $50,000, suitable for medium-scale production.
Large Convection Oven: $50,000 to $100,000, suitable for large-scale production, offering multi-zone heating and precise temperature control.
Function: Tests the completeness of solder joint coverage after necessary cleaning procedures.
Cost Range: Approximately $10,000 to $30,000
Features: Ensures the quality of each solder joint, improving product reliability.

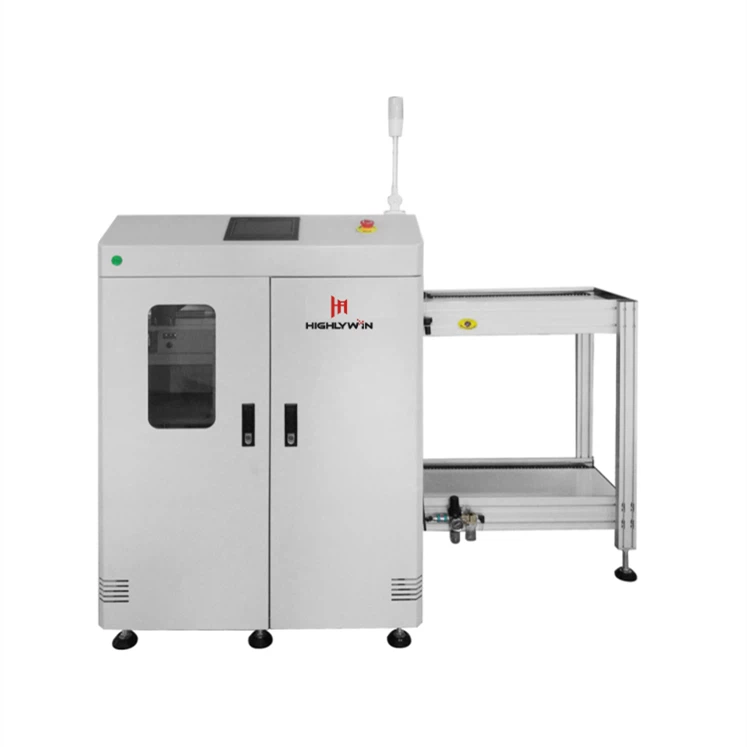

Function: Removes completed products from the production line.
Cost Range: Approximately $5,000 to $20,000
Features: Optional automation, suitable for various scales of production.

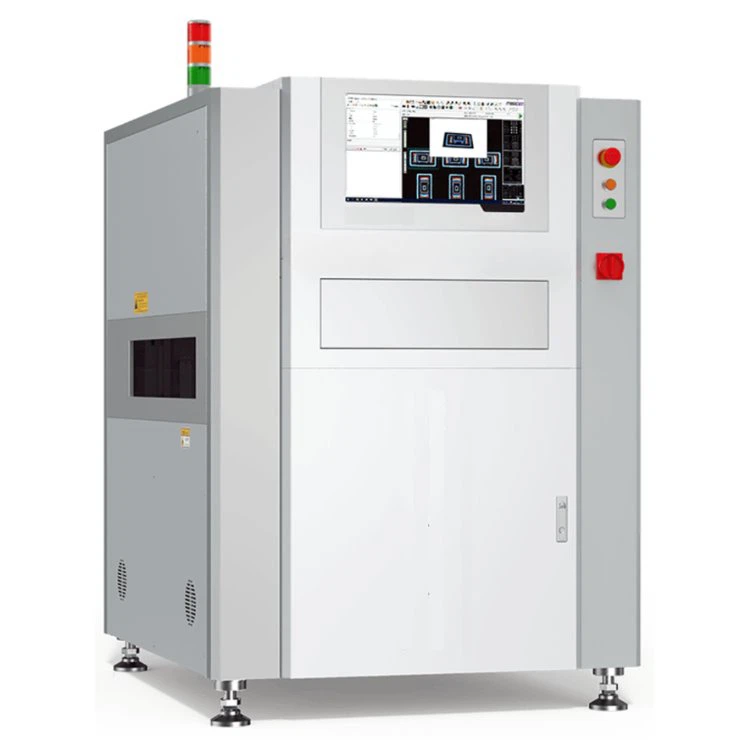

Function: Detects common defects in soldering production based on optical principles, such as missing components, misplacements, component misalignment, polarity errors, insufficient solder, excess solder, pin lift, etc.
Cost Range: Approximately $20,000 to $200,000
Features:
2D AOI: $20,000 to $50,000, suitable for basic defect detection, such as missing components, misplacements, alignment issues, etc.
2.5D AOI: $50,000 to $100,000, provides some 3D information, capable of detecting solder errors.
3D AOI: $100,000 to $200,000, offers rich 3D information, capable of detecting more complex defects like solder height and pin lift.
Software and Control Systems: $5,000 to $50,000
High-end equipment typically comes with more complex software and control systems for higher automation and precision.
Maintenance and Training: Approximately $5,000 to $50,000 per year
Regular maintenance and operator training are key to ensuring efficient long-term operation of the equipment.
Consumables: Approximately $500 to $5,000 per month
Includes solder paste, cleaning agents, etc., constituting a continuous operational cost.
Integration and Installation: $5,000 to $50,000
Integrating new equipment into existing production lines may involve costs for installation, calibration, and testing.
Total Cost: Approximately $100,000 to $200,000
Features: Suitable for small batch production, lower cost, simple operation, but limited precision and speed.
Equipment Configuration:
SMT Loader: $5,000 to $20,000
Solder Paste Printing Machine: $10,000 to $20,000
Solder Paste Mixer: $5,000 to $10,000
SPI Machine: $20,000 to $30,000
Pick and Place Machine: $50,000 to $100,000
Reflow Machine: $10,000 to $20,000
Docking Station: $10,000 to $20,000
SMT Unloader: $5,000 to $10,000
AOI Machine: $20,000 to $50,000
Total Cost: Approximately $200,000 to $500,000
Features: Suitable for medium-scale production, offers good precision and speed, higher automation level, moderate cost.
Equipment Configuration:
SMT Loader: $10,000 to $20,000
Solder Paste Printing Machine: $20,000 to $50,000
Solder Paste Mixer: $10,000 to $20,000
SPI Machine: $30,000 to $50,000
Pick and Place Machine: $100,000 to $300,000
Reflow Machine: $20,000 to $50,000
Docking Station: $20,000 to $30,000
SMT Unloader: $10,000 to $20,000
AOI Machine: $50,000 to $100,000
Total Cost: Approximately $500,000 to $1,500,000 and above
Features: Suitable for large-scale production, offers the highest precision and speed, supports complex and high-density boards, higher cost but also higher efficiency and reliability.
Equipment Configuration:
SMT Loader: $20,000 to $30,000
Solder Paste Printing Machine: $50,000 to $100,000
Solder Paste Mixer: $20,000 to $30,000
SPI Machine: $50,000 to $100,000
Pick and Place Machine: $300,000 to $1,000,000
Reflow Machine: $50,000 to $100,000
Docking Station: $30,000 to $50,000
SMT Unloader: $20,000 to $30,000
AOI Machine: $100,000 to $200,000
Small Batch Production: Choose low-end equipment, which is lower in cost, simple to operate, suitable for startups and small operations.
Medium Scale Production: Choose mid-range equipment, offering good precision and speed, higher automation level, moderate cost, suitable for growing enterprises.
Large Scale Production: Choose high-end equipment, providing the highest precision and speed, supporting complex and high-density boards, higher cost but also higher efficiency and reliability, suitable for mature large-scale production environments.
By properly configuring these key pieces of equipment, consistency from parts to batches can be achieved, improving production quality and efficiency. When selecting equipment, consider your specific production needs, budget, and future expansion plans.
In the fiercely competitive market environment today, Highlywin stands out for its exceptional cost-effectiveness and top-notch quality standards. Our SMT production line equipment solutions are meticulously designed to meet the needs of various industries, ensuring that customers get the maximum value from their equipment investment.
By integrating industry-leading technologies and efficient production processes, Highlywin offers equipment that includes high-precision pick and place machines, solder paste printing machines, and advanced Automatic Optical Inspection (AOI) equipment, ensuring that each production stage achieves high-quality output. Our SMT loaders and unloaders feature simple and intuitive designs that effectively enhance production efficiency and reduce human errors.
Moreover, our solutions come with high scalability, allowing customers to upgrade their equipment according to future production demands. Whether you are a newly emerging small business or a large manufacturer seeking mass production, Highlywin can tailor the best solutions for you, ensuring you find the optimal balance between cost and quality. By choosing Highlywin, you can not only shorten production cycles and enhance product consistency but also respond swiftly to each customer’s needs, thereby increasing your market competitiveness. Let’s work together to create a better manufacturing future!
