In modern electronics manufacturing, Surface Mount Technology (SMT) has become the foundation for efficient, high-yield production. As components shrink, and devices become more complex, the demand for precision, reliability, and throughput continues to rise. However, even the most advanced SMT machines cannot perform optimally without proper SMT accessories.
These accessories — ranging from feeders and nozzles to conveyors, cleaning tools, and ESD protection — form the backbone of every high-quality SMT line. At Highlywin, we specialize in providing both equipment and full sets of SMT accessories for global customers, ensuring a one-stop SMT solution that supports production stability and long-term performance.

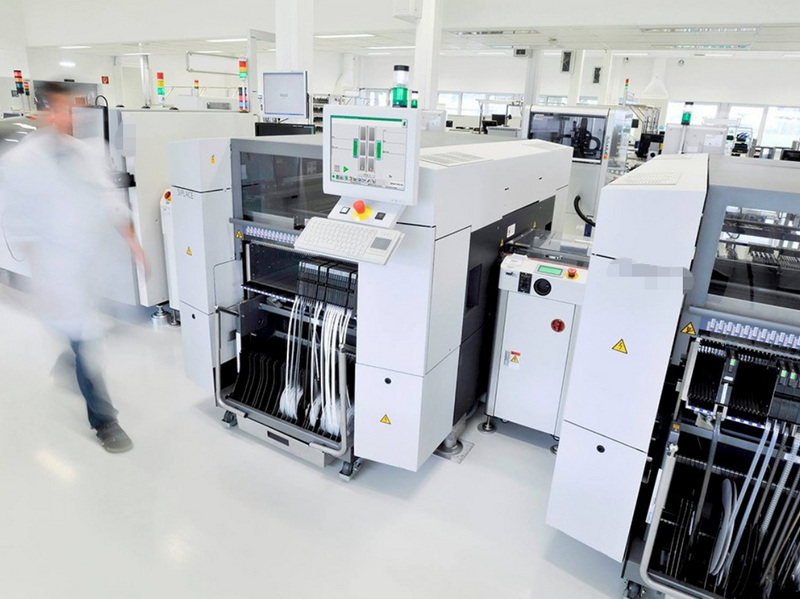

A smooth and efficient SMT line is more than just a combination of pick-and-place machines, printers, and reflow ovens. It's a carefully integrated system where each component, including the SMT accessories, contributes to consistent product quality and line uptime.
SMT accessories help prevent common manufacturing issues such as misfeeds, component loss, uneven solder joints, and static damage. They support smoother workflow transitions between stages and reduce reliance on manual inputs that can lead to costly errors.
Key reasons why quality accessories matter:
- Ensure placement precision and reduce rework.
- Maintain constant feeding, soldering, and transport flow.
- Prevent ESD damage and contamination.
- Improve overall equipment effectiveness (OEE).
- Lower operational and maintenance costs.
By selecting the right mix of accessories, manufacturers create a balanced production environment fit for high-volume, high-accuracy assembly.

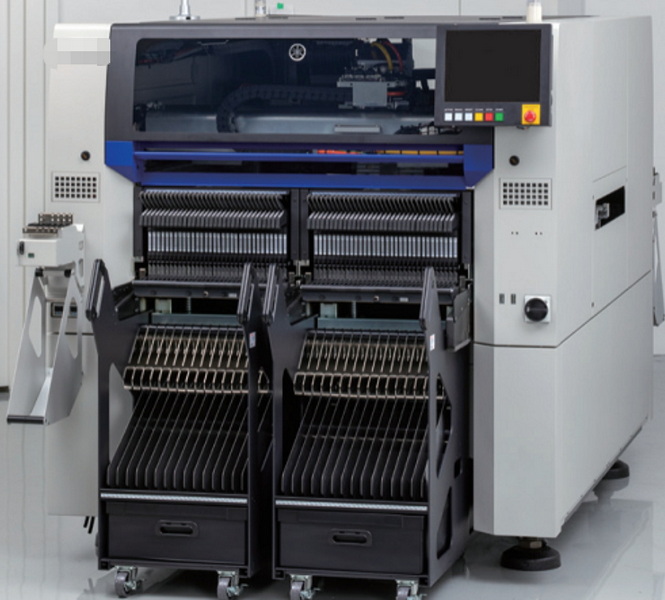

Feeders are among the most vital SMT accessories in automated assembly. They supply components from reels or trays to pick-and-place machines. If a feeder malfunctions or misaligns, the entire line slows down or stops — which is why selecting reliable and precise feeders matters.
Common types of SMT feeders include:
- Tape feeders for chips and passive components (the most widely used).
- Stick feeders designed for specialized components and ICs.
- Tray feeders for handling large or irregular component shapes.
- Smart feeders equipped with data interfaces and barcode systems for intelligent production tracking.

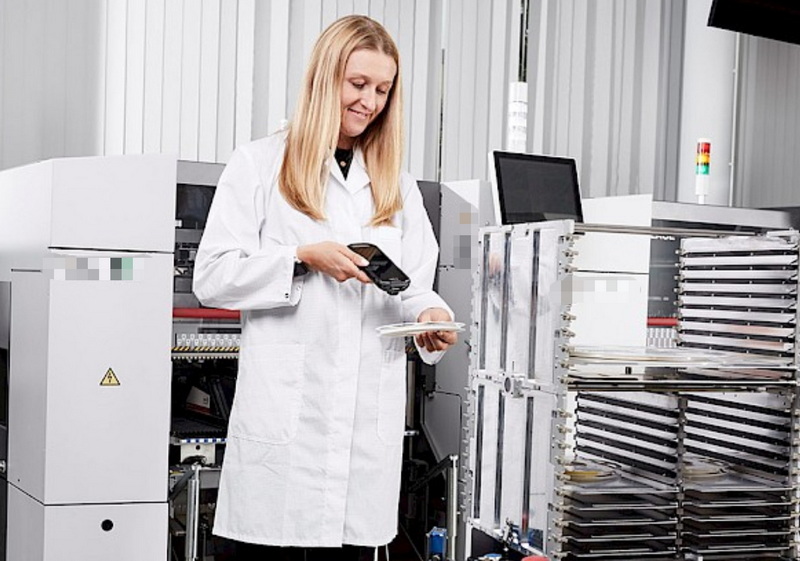

To manage these efficiently, manufacturers use feeder storage carts, racks, and offline setup stations. These help organize, maintain, and prepare feeders for quick changeovers. This minimizes line downtime and speeds up product transitions — an important advantage for contract manufacturers managing multiple projects.
While nozzles may appear small, they are critical in ensuring precise component pickup and placement. Each nozzle must match the size, shape, and weight of specific components. The correct design and suction force prevent issues like component shifting or tombstoning.
Types of SMT nozzle accessories:
- Standard nozzles for common chip components such as 0402 or 0603.
- Custom nozzles for handling BGAs, QFNs, and irregular shapes.
- Ceramic and stainless-steel nozzles for durability.
- Automatic nozzle changers that switch tools dynamically.
- Nozzle cleaning systems (manual or automatic) to remove debris and maintain vacuum performance.
High-quality nozzles made from advanced materials ensure repeatable accuracy and protect delicate parts from mechanical stress. Over time, regular cleaning and inspection of nozzles can greatly influence placement yield.
The movement of printed circuit boards (PCBs) between process stages is a continuous cycle that must remain consistent. SMT conveyors and board handling accessories keep this cycle stable and synchronized.
Common SMT handling components include:
- PCB loaders and unloaders: Move boards in and out of machines automatically.
- Buffer stations: Manage line imbalances when machines operate at different speeds.
- Shuttle and turn conveyors: Redirect boards between parallel or divergent production lines.
- Lifters and pushers: Mechanically align PCBs for precise transitions.
These accessories support modular factory layouts, allowing seamless scaling or reconfiguration when expanding production. Reliable conveyor systems also decrease human handling, reducing contamination risk.
The soldering process defines the long-term reliability of an assembled product. Uniform heating, consistent solder paste application, and clean process conditions all rely on the right SMT accessories to achieve stability.
Core accessories within reflow and soldering processes include:
- Reflow oven fixtures and carriers to secure PCBs without warping.
- Stainless steel mesh belts and rails for smooth board movement.
- Thermocouple probes for real-time temperature profiling.
- Solder paste mixers and dispensers to maintain paste uniformity.
- Flux recovery units to collect excess residues.
Well-calibrated thermal monitoring tools help engineers verify each temperature zone's accuracy, ensuring quality joints and minimal voids. Manufacturers often integrate temperature logs with MES systems for traceability and process validation.
Quality control in SMT production is non-negotiable. After placement, inspection phases verify solder paste volume, alignment, bridging, and polarity before reflow. Inspection and cleaning accessories serve as the guardians of assembly quality.
Typical SMT inspection accessories:
- SPI (Solder Paste Inspection) ensures the right paste height and area coverage.
- AOI (Automated Optical Inspection) detects placement or solder joint errors.
- X-ray inspection reveals hidden defects in BGAs or CSPs.
- Magnifying lamps and microscopes assist in manual re-inspection.
Cleaning equipment, such as ultrasonic stencil cleaners and nozzle washers, eliminates solder and flux buildup. Routine cleaning improves print definition, nozzle lifespan, and overall process stability. Over time, this translates into higher production yield and reduced scrap.
Electrostatic discharge (ESD) remains one of the most invisible but destructive forces in electronics manufacturing. A single discharge event can damage sensitive ICs or cause latent defects that escape immediate detection.
To prevent this, ESD safety must be built into both the workstations and factory environment.
Examples of essential ESD accessories:
- ESD-safe tables, mats, and floor coverings.
- Grounded wrist straps, footwear, and connectors.
- Ionizers and neutralizers to discharge static from air and surfaces.
- Antistatic storage bins, carts, and packaging materials.
These accessories help comply with IEC 61340-5-1 and ANSI S20.20 standards. They create safe working environments and maintain the long-term reliability of electrostatic-sensitive devices.
As smart manufacturing evolves, software integration and automation-friendly SMT accessories have become equally vital. They transform data into actionable intelligence while reducing manual dependencies.
Key software-related accessories include:
- Barcode feeder setup systems for quick, traceable changeovers.
- Offline programming tools that minimize line downtime.
- MES integration platforms for live machine status and defect tracking.
- Traceability labels and laser marking systems for part identification.
- Automated calibration kits using digital adjustment tools.
Automation software and accessories streamline communication between machines, allowing real-time optimization of feeder setup, placement accuracy, and production scheduling. This leads to shorter cycles, predictable yield, and simplified maintenance planning.
Beyond regular accessories, SMT spare parts ensure production continuity and performance reliability. The best production planning always includes preventive maintenance and spare inventory to minimize downtime.
Crucial spare parts and maintenance-related accessories:
- Belts, sensors, and vacuum valves for feeding devices.
- Filters, compressors, and regulators for pneumatic systems.
- Lubricants, cleaning fluids, and grease for mechanical motion parts.
- Camera modules and lighting components for inspection systems.
- Replacement PCB clamps, rails, and guide pins.
With dependable spare parts, technicians can perform scheduled maintenance without halting production. Highlywin's global spare part logistics system ensures customers receive the right components quickly, enhancing operational reliability and ROI.
Modern SMT lines are not only about throughput but also about sustainability and worker safety. The use of environmental protection accessories plays a bigger role than ever.
Examples include:
- Fume extraction systems that remove harmful solder vapors.
- Dust filters to keep cleanroom conditions intact.
- Low-noise air systems that meet workplace comfort standards.
- Energy meters and power regulators to monitor and optimize energy consumption.
These accessories align with global trends toward green manufacturing, helping plants comply with environmental regulations while promoting a safer workspace.
Today's high-volume SMT production demands flexible configurations capable of handling thousands of components per hour with near-zero defects. The most competitive manufacturers now view SMT accessories not as optional tools but as core system enablers.
By integrating robust accessories into their operations, manufacturers can:
- Quickly adapt to product changeovers.
- Gather actionable operational data.
- Maintain consistency across parallel production lines.
- Extend the lifetime of capital equipment.
Highlywin continuously innovates in SMT automation, combining advanced accessories with turnkey SMT lines that meet global production requirements.
In the pursuit of manufacturing excellence, success lies not only in machines but also in the quality of the supporting ecosystem. The right SMT accessories — feeders, nozzles, conveyors, inspection tools, ESD protection, and spare parts — ensure seamless collaboration between every stage of the process.
At Highlywin, we understand that each accessory contributes to better productivity, reduced downtime, and superior quality control. As a trusted global SMT supplier, Highlywin provides SMT, AI, and peripheral equipment, along with complete after-sales support, spare parts, and professional consultation.
By optimizing every detail, from feeding precision to static safety, we help manufacturers achieve greater efficiency, consistency, and long-term reliability in their production lines.
SMT accessories are auxiliary tools, components, and systems designed to support the operation of surface mount technology equipment. They help improve precision, throughput, and process stability across assembly stages.
Feeders ensure that each component is accurately delivered to the pick-and-place head. Intelligent feeders also support quick product changeovers and real-time error detection, minimizing waste and misplacements.
ESD accessories prevent static discharge that can damage sensitive components. Proper ESD control ensures functional reliability and compliance with international electronics safety standards.
Critical spare parts include feeder components, sensors, nozzles, filters, belts, and pneumatic fittings. Regular maintenance using OEM-quality parts is vital to prevent unplanned downtime.
Highlywin offers one-stop SMT solutions including equipment sales, accessory sourcing, spare parts, and worldwide technical support. Our tailored services ensure optimized, high-yield production for every client.
