As electronic products continue to evolve toward miniaturization and higher functionality, the need for precision and high-efficiency assembly has grown exponentially. In this transformation, the SMT Pick And Place Machine has emerged as a technological keystone, dramatically redefining how printed circuit boards (PCBs) are produced in modern manufacturing facilities. It is no exaggeration to say that without SMT Pick And Place Machines, current electronics manufacturing would not be able to meet today's demands for speed, precision, and cost-effectiveness.
Before delving into the machinery itself, it's important to understand what SMT (Surface Mount Technology) is. SMT is an assembly method where electronic components are mounted directly onto the surface of PCBs rather than through-hole soldering. This approach allows a far higher component density, giving rise to compact, lightweight, and reliable electronics.
The SMT Pick And Place Machine is the mechanical executioner of this process. By using robotic arms, vacuum nozzles, and vision systems, it automates the placement of thousands of components every hour. Each chip, resistor, or microprocessor is positioned with precision on solder paste patterns that define the exact spot where connection will occur during reflow.
A modern SMT Pick And Place Machine integrates multiple advanced systems that work simultaneously to achieve accuracy at remarkable speeds. The workflow can be divided into several interconnected stages:

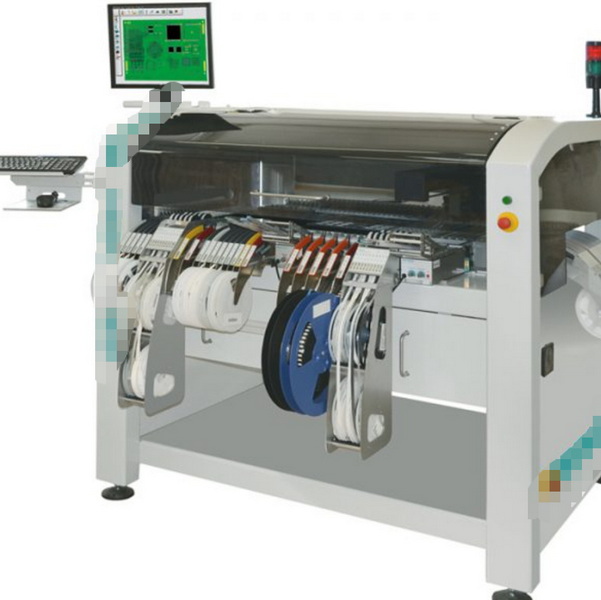

1. Feeder System: Components are supplied to the pick and place head from feeders that unwind component reels, trays, or tubes. Each feeder aligns with specific component types.
2. Vision and Alignment: Cameras inspect both components and PCB fiducials to ensure perfect positioning and avoid misalignment.
3. Pick and Place Head: A robotic head with multiple vacuum nozzles picks parts from the feeders, detects orientation via vision feedback, and then rotates or flips them before placement.
4. Placement Process: The head accurately places the component onto the PCB according to X-Y coordinates dictated by the software program.
5. Control Software: Intelligent algorithms determine the optimum movement path, minimizing pick and place travel distance while maximizing placement speed.
When integrated with reflow ovens, solder paste printers, and AOI (automatic optical inspection) systems, the SMT Pick And Place Machine becomes part of a seamless production ecosystem capable of continuous, unmanned operation.
Every SMT Pick And Place Machine consists of several critical subsystems engineered for precision:
- X-Y Gantry or Belt System: Provides high-speed, stable linear motion.
- Vacuum Pump and Nozzle Heads: Enable accurate component pickup with adjustable suction pressure.
- Feeder Modules: Allow flexible configuration for various reel widths and component types.
- Vision Cameras: Capture images for real-time correction and defect detection.
- Control Board and Software Interface: Manage data flow, coordinate servo motors, and monitor placements.
- Conveyor System: Transports PCBs in and out of the working area automatically.
This intricate combination ensures both accuracy and repeatability—key parameters in electronics manufacturing.
Based on speed, complexity, and level of automation, SMT Pick And Place Machines are classified as:
- High-Speed Chip Shooters: Focused on rapid placement of small SMD components, achieving up to 100,000 components per hour (CPH).
- Flexible Placement Machines: Optimized for larger or irregular devices such as ICs, connectors, or QFPs.
- Hybrid or Multi-Function Systems: Combine high speed and component flexibility, suitable for diverse assembly lines.

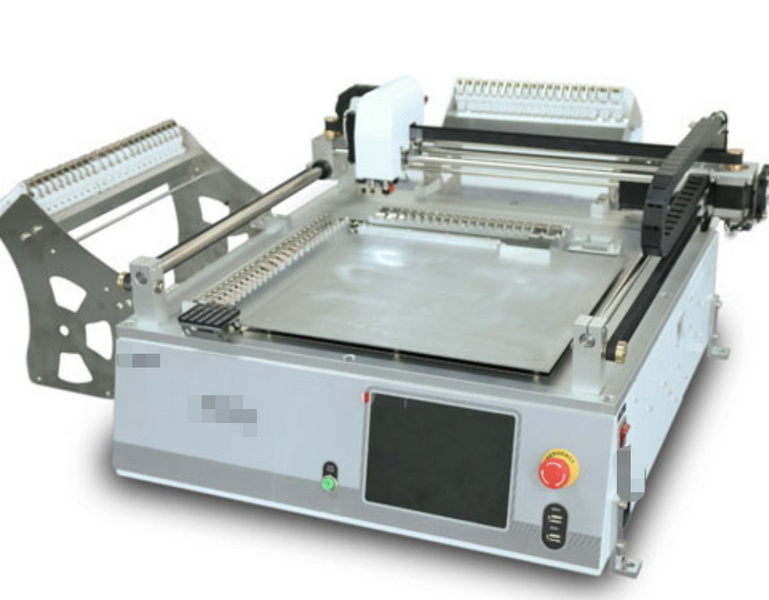

- Compact Benchtop Models: Target low- to mid-volume manufacturers or prototyping environments.
By integrating these machine types strategically, factories can create production lines capable of both mass manufacturing and product diversification.
Investing in a quality SMT Pick And Place Machine can bring several tangible benefits:
1. Consistent Accuracy: Placement precision can reach ±0.02 mm, ensuring minimal soldering defects.
2. Increased Production Throughput: Machines work seamlessly 24/7 under automated control, drastically improving productivity.
3. Reduced Human Error: Automation eliminates inconsistencies of manual labor.
4. Lower Long-Term Costs: While initial investment may be significant, operational efficiency results in reduced rework and wastage.
5. Scalability and Flexibility: Easy to expand capacity or modify product configurations with minimal downtime.
6. Real-Time Quality Feedback: Vision systems and built-in quality control mechanisms detect and correct errors on the fly.
These advantages make pick and place systems an essential part of high-tech manufacturing—from consumer electronics to mission-critical avionics.
At Highlywin, we take pride in delivering robust SMT solutions designed to meet the challenges of modern electronics manufacturing. Our expertise is not limited to delivering SMT Pick And Place Machines — we deliver complete, integrated systems.
- SMT/AI Equipment Supply: From SMT Pick And Place Machines to AOI systems, conveyors, and solder paste printers.
- Peripheral Equipment: PCB loaders, unloaders, conveyors, and inspection platforms.
- Full SMT Line Design: Tailored one-stop engineering for startups and established mass-production facilities.
- Maintenance and Spare Parts: Ensuring minimal downtime through fast technical support and locally available service tools.
- Automation Integration: Customized robotic solutions to elevate efficiency and data visibility in factories.
With professionalism, reliability, and continuous innovation, Highlywin has grown into a trusted partner for customers worldwide.
One of the most powerful features of today's machines is their software interface, which controls everything from component mapping to placement optimization. The software integrates with CAD files from PCB design tools, automatically converting them into executable placement programs. Operators can visualize positions, adjust feeder assignments, run simulation models, and even monitor error logs remotely.
Advanced systems also provide cloud connectivity, enabling remote diagnostics and real-time machine performance monitoring. Integration with MES (Manufacturing Execution System) platforms ensures traceability, allowing each component's placement history to be stored in production databases.
The introduction of the SMT Pick And Place Machine has redefined how industries handle electronics assembly. Applications include:
- Consumer Electronics: High-density PCB assembly for smartphones, tablets, laptops, and gaming consoles.
- Automotive Electronics: Engine control units, sensors, ADAS modules, and infotainment systems depend heavily on SMT precision.
- Industrial Equipment: Controllers, power converters, and programmable logic systems built on complex boards.
- Communication Industry: Routers, optical transceivers, 5G base stations, and network switches.
- Healthcare Technology: Compact diagnostic and wearable devices with high reliability and safety standards.
- Aerospace and Defense: Electronic systems requiring extreme accuracy and quality validation.
Each of these fields depends on consistent and dependable component placement, highlighting why SMT Pick And Place Machines are indispensable to advanced manufacturing.
Choosing the right model involves evaluating multiple criteria. Here are the key considerations manufacturers should weigh:
1. Production Scale and Speed Requirements.
2. Component Range: Machine should support extreme component size variations, from 0201 resistors to large BGA packages.
3. Feeder Compatibility: The quantity and type of feeders required for flexible production.
4. Precision Demand: High-end machines are necessary when working with microelectronics or fine-pitch ICs.
5. Line Integration and Automation Level: Check how well the unit connects to paste printers and AOI systems.
6. Service and Support Availability: Factory downtime can be reduced drastically with responsive technical service providers.
7. Budget and ROI: Evaluate long-term cost savings versus upfront investment.
Highlywin offers comprehensive consultation and evaluation services to help customers identify the exact specifications that will maximize their production efficiency.
A high-speed production environment demands reliability. To maintain peak performance of an SMT Pick And Place Machine, manufacturers should:
- Clean the nozzles regularly to prevent pick-up failures.
- Calibrate vision systems periodically.
- Inspect and oil linear guide rails according to maintenance schedules.
- Keep software updated for compatibility and optimization.
- Replace worn feeder springs, belts, or suction tips promptly.
- Maintain temperature and humidity stability in the factory to prevent static discharge.
Adhering to preventive maintenance schedules minimizes unplanned downtime and reduces the risk of costly production interruptions.
The future of SMT Pick And Place Machines lies in smarter automation and greater data connectivity. Current development trends include:
- AI-driven Placement Algorithms: Realtime optimization using machine learning to detect defective components before placement.
- Predictive Maintenance: Systems that analyze wear patterns and recommend service intervals before failures occur.
- Cobotics Integration: Human-machine collaboration with co-robots improving flexibility in mixed model assembly lines.
- Smart Factories: Interconnected SMT lines sharing production data through IoT and cloud networks.
- Miniaturization Capability: New heads and vision systems designed for micro-LED, SiP (System-in-Package), and wafer-level components.
Through these innovations, SMT Pick And Place Machines are positioned to remain at the forefront of Industry 4.0, shaping how the electronics of the future are built.
Modern manufacturing also requires sustainability. SMT Pick And Place Machines have evolved toward greener operation:
- Energy-efficient motion systems using servo motors with regenerative braking.
- Reduced air consumption through smart pneumatic controls.
- Lead-free solder compatibility to comply with RoHS and environmental directives.
- Smart Power Management enabling sleep modes during idle times.
Such developments help electronics producers reduce their carbon footprint while maintaining top quality outcomes.
The SMT Pick And Place Machine stands as the cornerstone of modern electronics manufacturing, representing a perfect blend of mechanical precision, digital intelligence, and production efficiency. It enables companies to assemble thousands of intricate components with near-perfect accuracy, pushing the boundaries of what is possible in electronic design and mass production.
By partnering with Highlywin, manufacturers can achieve a competitive edge through advanced SMT solutions, robust technical support, and fully integrated production line services. Whether you are a startup aiming to expand assembly capacity or a global brand pursuing maximum output efficiency, Highlywin's experience ensures your manufacturing goals are realized with confidence and precision.
It automates the precise placement of electronic components onto PCBs during the SMT assembly process, improving speed and consistency while minimizing human errors.
Primary types include high-speed chip shooters, flexible placement machines for large or irregular parts, and hybrid machines offering a balance between speed and flexibility.
High-performance models can achieve placement accuracy within ±0.02 mm, suitable for ultra-fine-pitch and micro-scale components.
Daily cleaning and visual inspection are recommended, while calibration and deeper maintenance should occur every 1,000 operating hours or as advised by the equipment manufacturer.
Highlywin provides one-stop SMT solutions—from Pick And Place Machines and AOI systems to spare parts, training, and line design—ensuring efficiency, reliability, and long-term technical support for global clients.
