SMT Pick And Place Machines form the backbone of modern electronics manufacturing, enabling precise component placement on PCBs while adhering to rigorous industry standards. Highlywin, a leading provider of SMT/AI/peripheral equipment and comprehensive SMT services, empowers global clients with one-stop solutions to achieve compliance effortlessly.

How To Ensure Compliance with Industry Standards Using SMT Pick And Place Machines

Understanding Industry Standards for SMT Pick And Place Machines

Industry standards such as IPC-A-610 for acceptability of electronic assemblies, ISO 13485 for medical devices, and IEC 60950 for information technology equipment set strict guidelines for all SMT processes. These standards demand that SMT Pick And Place Machines deliver exceptional placement accuracy, often within 0.025 mm tolerances, to prevent defects like misalignment that could violate critical electrical spacing rules. Compliance with these benchmarks not only ensures product safety and reliability but also facilitates seamless market access across global regions, including automotive, aerospace, and consumer electronics sectors.

SMT Pick And Place Machines play a pivotal role by integrating advanced features that align directly with IPC-7351 land pattern standards, significantly reducing risks such as short circuits or insufficient solder joints. For instance, in high-reliability applications under IPC-A-610 Class 3, every placement must withstand environmental stresses like vibration and thermal cycling. Manufacturers using state-of-the-art SMT Pick And Place Machines can log placement data for traceability, which is essential during regulatory audits by bodies like UL or CE marking authorities.

Furthermore, standards like RoHS and REACH impose restrictions on hazardous substances, requiring SMT Pick And Place Machines to handle lead-free components without compromising precision. Highlywin's SMT Pick And Place Machines are designed with modular feeders and vision systems that adapt to these evolving requirements, ensuring that production lines remain compliant even as material compositions change.

The Critical Role of SMT Pick And Place Machines in Compliance

SMT Pick And Place Machines automate the intricate process of picking and placing surface-mount components, from tiny 0201 resistors to complex BGA packages, with vision-guided accuracy exceeding 95% defect detection rates. These machines integrate feeders, nozzles, spindles, and sophisticated software to meet IATF 16949 quality management benchmarks prevalent in the automotive industry. Highlywin's range of SMT Pick And Place Machines supports diverse applications by maintaining detailed traceability logs, which auditors scrutinize for process validation.

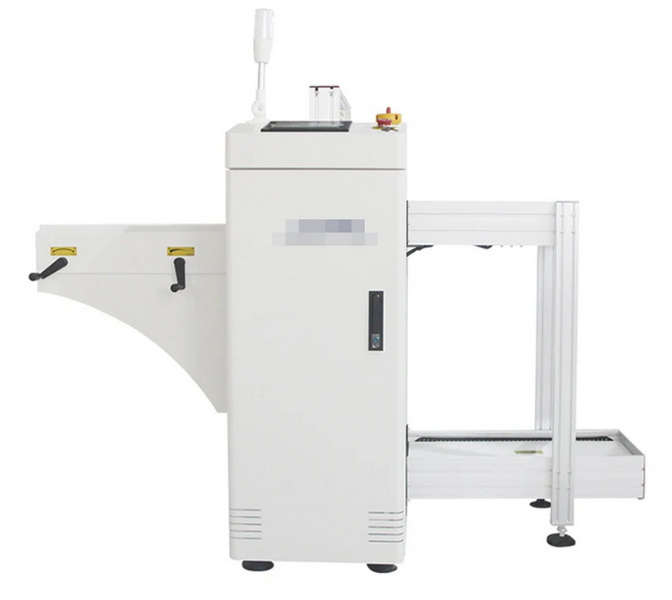

Key attributes of compliant SMT Pick And Place Machines include real-time monitoring, self-calibration routines, and high-speed capabilities up to 100,000 components per hour (CPH), all while preserving placement fidelity. In aerospace manufacturing, where IPC-A-610 Class 3 is mandatory, SMT Pick And Place Machines must achieve zero tolerance for tombstoning or bridging. Highlywin enhances this with peripheral equipment like conveyors and stackers, creating a synchronized ecosystem that upholds standards from pick to final assembly.

Moreover, modern SMT Pick And Place Machines incorporate AI-driven algorithms to predict and correct deviations, aligning with ISO 9001 process control mandates. This proactive approach minimizes human error, which accounts for up to 20% of non-conformances in manual processes, ensuring that every board meets dimensional and electrical performance criteria.

Calibration and Maintenance Protocols for SMT Pick And Place Machines

Regular calibration of SMT Pick And Place Machines is non-negotiable, focusing on nozzle alignment, feeder synchronization, and gantry precision to adhere to manufacturer-specified environmental parameters like 22-26°C operating temperatures. Design Rule Checks (DRC) in CAD software, combined with machine validation tests, enforce creepage and clearance distances as per IEC 61000 EMC standards. Highlywin provides on-site calibration services and genuine spare parts to minimize downtime, guaranteeing sustained compliance across production runs.

Essential protocols include daily visual inspections of SMT Pick And Place Machine heads for wear, weekly accuracy tests using fiducial markers on test PCBs, and monthly comprehensive audits with statistical process control (SPC) data analysis. Neglecting these can lead to placement offsets exceeding 50 microns, breaching IPC-A-610 acceptability limits. Highlywin's maintenance kits for SMT Pick And Place Machines include specialized tools for feeder calibration, extending machine life while optimizing yield rates to over 99%.

In practice, implementing a preventive maintenance schedule for SMT Pick And Place Machines reduces unplanned stops by 40%, directly impacting compliance metrics. Operators should document all interventions in digital logs, which integrate with enterprise systems for real-time compliance reporting.

Software and Vision Systems in SMT Pick And Place Machines

Advanced software suites in SMT Pick And Place Machines facilitate predictive maintenance, error logging, and recipe optimization, forming the cornerstone of ISO 9001 certification efforts. High-resolution vision systems scan components and boards pre-placement, achieving tolerances as fine as 0.1 mm for fine-pitch QFNs and LGAs, fully compliant with IPC standards. Highlywin's SMT Pick And Place Machines network seamlessly with solder paste printers, reflow ovens, and AOI stations for holistic traceability throughout the SMT line.

These systems offer real-time defect alerts, advanced data analytics for yield improvement, and over-the-air firmware updates to address emerging standards like IPC-6012 for rigid PCBs. For example, machine learning models within SMT Pick And Place Machines analyze placement patterns to auto-adjust for board warpage, preventing voids that violate J-STD-020 moisture sensitivity classifications. Highlywin customizes software interfaces for clients, enabling seamless integration with ERP and MES platforms.

Vision integration also supports multi-angle imaging for 3D profiling, critical for detecting coplanarity issues in high-density interconnects (HDI) boards under IPC-2221 design guidelines.

Environmental Controls Optimizing SMT Pick And Place Machines

SMT Pick And Place Machines perform optimally in precisely controlled environments: 22-26°C temperature, 45-65% relative humidity, and ISO 14644 Class 7 cleanroom conditions with HEPA filtration to avert dust contamination. ESD-safe flooring, wrist straps, and ionizers maintain potentials below 100V, aligning with IPC-610 electrostatic discharge protections. Highlywin supplies environmental peripherals like dehumidifiers and cooling units tailored for global installations of SMT Pick And Place Machines.

Proper controls prevent issues like static-induced component shifts or condensation on feeders, which could result in non-compliant placements. Monitoring systems with sensors feed data back to SMT Pick And Place Machine controllers, enabling automatic pauses if parameters drift. This closed-loop approach ensures adherence to ISO 13485 cleanroom protocols for medical electronics.

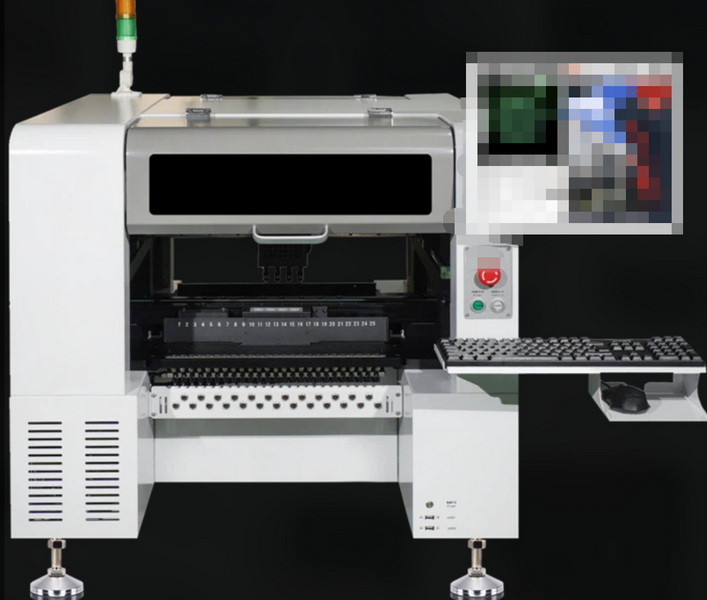

SMT Process Quality Assurance

Precision in Solder Paste Application and SMT Pick And Place Machine Placement

Achieving uniform solder paste deposition through laser-cut stencils (typically 0.005 inches thick) is foundational, as SMT Pick And Place Machines rely on this for void-free joints per IPC-7095 BGA guidelines. Machines dynamically compensate for PCB warpage, optimizing peak reflow temperatures around 245°C for lead-free SAC alloys in full RoHS compliance. Highlywin's integrated SMT lines synchronize stencil printers with SMT Pick And Place Machines for high-volume, high-precision production.

The workflow involves SPI verification post-printing, precise component placement via SMT Pick And Place Machines, and profiled reflow soldering, with each step validated against thermal profiles from IPC-7530. This methodology yields joints with 75-85% paste coverage, minimizing head-in-pillow defects common in high-speed SMT Pick And Place Machine operations.

Inspection and Quality Assurance Post SMT Pick And Place Machine Operations

Post-placement automated optical inspection (AOI) and X-ray systems scrutinize SMT Pick And Place Machine outputs against IPC-A-610 criteria, identifying bridges, opens, or misalignments with 99% accuracy. Traceability software records every pick-and-place event, serial number, and timestamp, supporting RoHS/REACH audits and PPAP submissions. Highlywin bundles inline AOI with its SMT Pick And Place Machines for turnkey quality assurance.

Techniques like 3D solder paste inspection (SPI), 3D AOI, and post-reflow X-ray ensure comprehensive coverage, while functional testers verify electrical integrity. Statistical analysis of inspection data trends process capability indices (Cpk > 1.67) for Six Sigma compliance in SMT Pick And Place Machine lines.

Overcoming Challenges in SMT Pick And Place Machine Compliance

Miniaturization trends challenge SMT Pick And Place Machines with sub-0.3 mm pitch requirements; solutions include high-resolution feeders and AI-enhanced vision correcting for tolerances under 30 microns. Component variability is mitigated through standardized IPC-7351 libraries and incoming quality control. Highlywin's engineering team troubleshoots these for clients, achieving first-pass yields above 98%.

Other hurdles like thermal management demand validated reflow profiles, while balancing speed and accuracy requires hybrid heads on SMT Pick And Place Machines—high-speed for passives, precision for ICs. Firmware upgrades and modular designs future-proof against standards evolution.

Training Operators for Peak SMT Pick And Place Machine Performance

Well-trained operators maximize SMT Pick And Place Machines by adhering to standardized operating procedures (SOPs) for setup, changeovers, and troubleshooting, per ISO 14001 environmental management. Highlywin's certification programs cover feeder loading, program simulation, and error recovery, elevating yields to 99.5%. Simulations reduce setup times by 50%, ensuring compliance during high-mix production.

Best practices encompass verifying component reels pre-loading, running dry cycles on SMT Pick And Place Machines, and logging all deviations for continuous improvement cycles (PDCA).

Smart Factory Integration with SMT Pick And Place Machines

SMT Pick And Place Machines connect to Industry 4.0 frameworks via Manufacturing Execution Systems (MES) for live compliance dashboards and predictive analytics. Highlywin's AI upgrades enable anomaly detection, reducing defects proactively. This integration supports CFX (IPC-2591) standards for plug-and-produce interoperability across SMT ecosystems.

Real-World Case Studies Using Highlywin SMT Pick And Place Machines

A medical device manufacturer leveraged Highlywin SMT Pick And Place Machines to attain ISO 13485 certification, slashing defects by 40% through vision-enhanced placement. An automotive supplier met IATF 16949 with 0.02 mm accuracy, accelerating time-to-market. These cases highlight 30% cycle time reductions and audit-zero non-conformances.

Selecting Compliant SMT Pick And Place Machines

Vendor selection prioritizes board size capacity (up to 46 inches), feeder capacity (200+ types), and certifications like CE/UL. Highlywin excels in flexible, mid-to-high volume SMT Pick And Place Machines with speeds from 20,000 to 120,000 CPH.

Conclusion

Mastering compliance with industry standards through meticulously managed SMT Pick And Place Machines unlocks reliable, high-quality electronics production on a global scale. Highlywin's end-to-end SMT solutions—from advanced equipment and spares to training and integration—empower manufacturers to navigate complexities effortlessly, minimizing risks, maximizing efficiency, and ensuring every placement cycle meets or exceeds expectations.

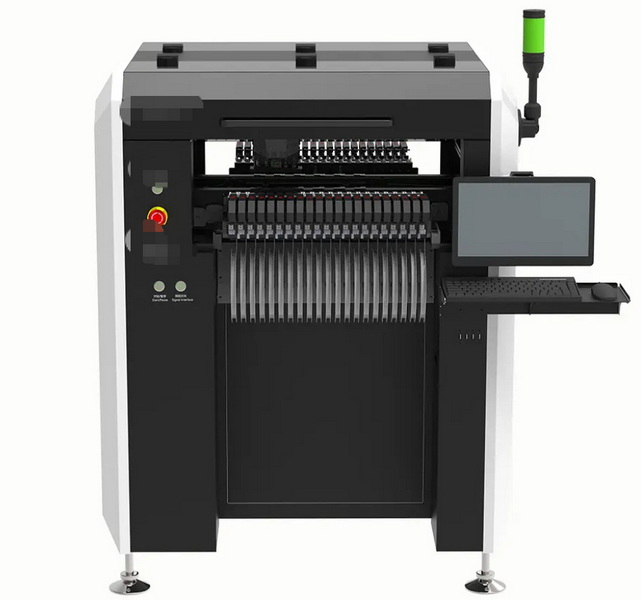

PCB Assembly Industry Standards

FAQ

1. What accuracy levels must SMT Pick And Place Machines achieve under IPC-A-610?

SMT Pick And Place Machines require 0.025 mm placement precision for Class 2/3 assemblies, confirmed via vision systems and AOI to avoid misalignment violations.

2. How does temperature control impact SMT Pick And Place Machine compliance?

Maintaining 22-26°C prevents thermal expansion errors in SMT Pick And Place Machines, ensuring consistent joints per IEC standards.

3. What is the function of vision systems in SMT Pick And Place Machines?

Vision systems in SMT Pick And Place Machines handle fiducial recognition and pre-placement defect detection, vital for ISO 13485 traceability.

4. Are SMT Pick And Place Machines suitable for fine-pitch compliant assembly?

Yes, SMT Pick And Place Machines support 0.1 mm tolerances using IPC-7351 footprints, ideal for RoHS-compliant lead-free processes.

5. How to uphold ESD compliance around SMT Pick And Place Machines?

Implement grounded workstations and <100V differentials, as integrated in Highlywin's comprehensive SMT setups.
