SMT Feeders serve as the precise delivery mechanism in surface mount technology assembly lines, ensuring components reach pick-and-place machines exactly when needed. Highlywin, your trusted partner in SMT/AI/peripheral equipment and comprehensive service support, supplies top-quality SMT Feeders as part of one-stop SMT solutions for global customers.

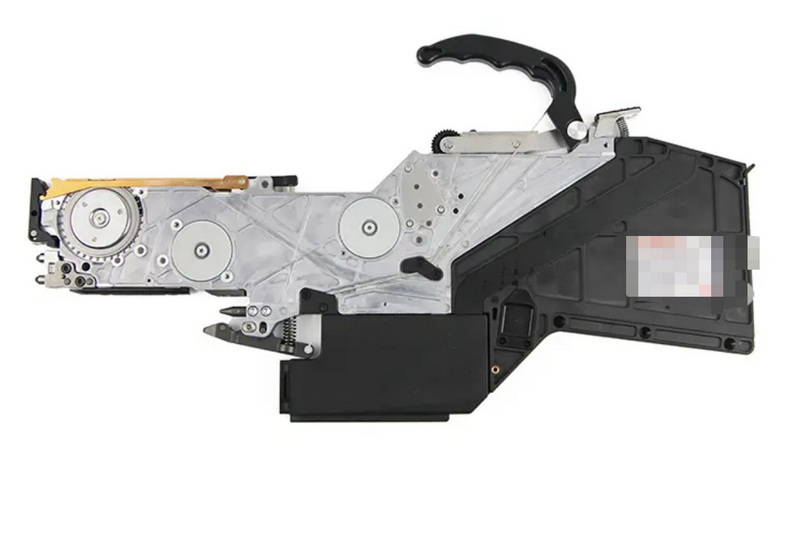

An SMT Feeder systematically advances electronic components from carrier tapes, trays, tubes, or bulk supplies to a designated pickup position on the SMT machine. This core function of the SMT Feeder prevents production interruptions by maintaining a steady, accurate supply flow tailored to high-speed operations. Every SMT Feeder indexes components with micron-level precision, aligning them perfectly for vacuum nozzle pickup and subsequent PCB placement.
SMT Feeders represent a critical investment in manufacturing efficiency, as their reliability directly impacts first-pass yield and overall equipment effectiveness. In high-volume electronics assembly, a single faulty SMT Feeder can halt an entire line, underscoring the need for robust SMT Feeder selection and maintenance. Highlywin offers a full range of compatible SMT Feeders, backed by spare parts inventory and expert technical support worldwide.
Modern SMT Feeders incorporate advanced materials like high-durability polymers and precision-ground steel components to withstand millions of indexing cycles. These engineering features in SMT Feeders ensure consistent performance even under dusty factory conditions or with sticky flux residues. Operators appreciate how user-friendly SMT Feeder designs simplify loading, reducing training time and human error rates.
SMT Feeders dictate the pace and quality of component placement, serving as the rhythmic heartbeat of any SMT line. Without optimized SMT Feeders, even the fastest pick-and-place heads face starvation or misalignment issues, leading to scrap rates exceeding 5%. Highlywin's SMT Feeders integrate seamlessly with leading machine brands, enabling clients to scale from prototype runs to mass production without feeder-related bottlenecks.
The economic case for superior SMT Feeders becomes clear when calculating total cost of ownership. Reliable SMT Feeders minimize unplanned downtime, which can cost thousands per hour in lost output. By choosing durable SMT Feeders from Highlywin, manufacturers avoid frequent replacements and benefit from extended service intervals, enhancing return on investment over years of operation.
Furthermore, SMT Feeders contribute to process control by enabling real-time monitoring of feed rates and error detection. Advanced SMT Feeder sensors flag issues like empty tapes or jams instantly, allowing proactive intervention. This intelligence in SMT Feeders supports Industry 4.0 goals, connecting seamlessly to manufacturing execution systems for comprehensive line analytics.
SMT Feeders come in specialized variants, each optimized for particular component packaging and handling requirements.

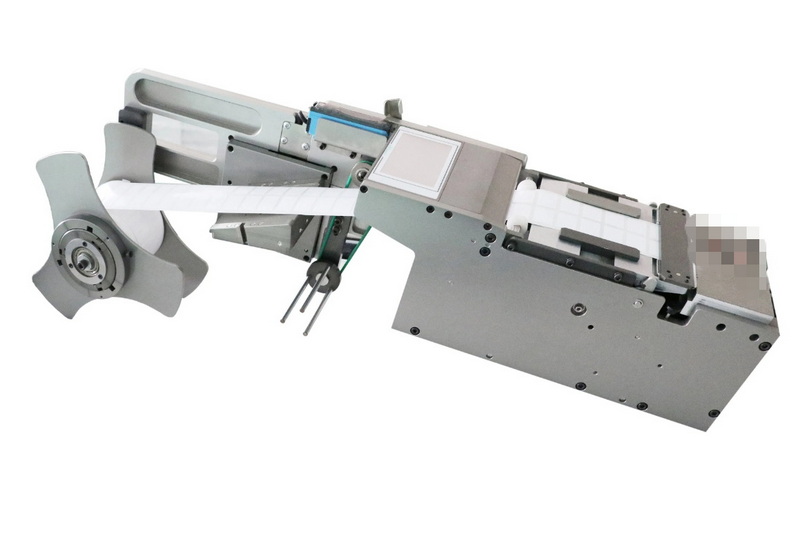

Tape SMT Feeders dominate modern lines, accommodating 8mm to 88mm carrier tapes with pitches from 2mm to 12mm. Motorized tape SMT Feeders peel cover tape smoothly while advancing the carrier precisely, exposing components at the optimal height for pickup. Highlywin stocks electric tape SMT Feeders compatible with Fuji, Yamaha, and Panasonic machines, featuring quick-swap cassettes for minimal changeover time.
These tape SMT Feeders excel with resistors, capacitors, and small ICs, delivering up to 50,000 components per hour without fatigue. Intelligent tape SMT Feeders add RFID chips storing tape data, automating verification and reducing setup errors by 90%. Maintenance on tape SMT Feeders focuses on peel-head cleaning and motor calibration to sustain peak performance.
Tray SMT Feeders handle JEDEC matrix trays for BGAs, QFNs, and large connectors unsuitable for tape packaging. Single-tray SMT Feeders suit low-volume runs, while multi-tray stackers process hundreds of parts unattended. Highlywin's tray SMT Feeders feature vacuum-assisted positioning for delicate components, preventing damage during indexing.
Gantry-style tray SMT Feeders expand capacity by stacking 10+ trays per unit, conserving valuable machine slots. These SMT Feeders integrate XY mapping to track exact cavity positions, essential for high-value assemblies. Operators load trays into SMT Feeders offline, enabling rapid swaps during production shifts.
Stick SMT Feeders manage radial or axial components in plastic tubes, ideal for LEDs, transistors, and odd-form parts. Gravity-fed tube SMT Feeders require minimal power, though vibratory models ensure smooth advancement for sticky components. Highlywin supplies adjustable stick SMT Feeders supporting tube diameters from 8mm to 25mm, with escapement mechanisms preventing double feeds.
These SMT Feeders shine in high-mix environments where tape conversion proves uneconomical. Modular stick SMT Feeders allow quick reconfiguration for varying component lengths, boosting flexibility across product families.
Bulk SMT Feeders process loose parts via vibration bowls or centrifugal wheels, singulating diodes, MELFs, and beads efficiently. Bowl-style bulk SMT Feeders orient components consistently before funneling them to the pickup zone. Highlywin's vibratory bulk SMT Feeders handle 10,000+ parts per refill, slashing packaging costs for commodity components.
Centrifugal bulk SMT Feeders spin parts outward onto tracks, achieving higher speeds for spherical or cylindrical shapes. Vision-assisted bulk SMT Feeders reject misoriented parts, maintaining 99.9% placement accuracy.
SMT Feeders synchronize with the host machine via pneumatic, electrical, or network signals, indexing immediately after each pickup confirmation. In a typical cycle, the SMT Feeder receives a feed command, advances material by one pitch, peels or positions the component, and signals readiness. This closed-loop operation in SMT Feeders ensures zero tolerance for timing drifts.
Peel mechanisms in tape SMT Feeders use angled rollers or blades to lift cover tape progressively, avoiding component disturbance. Tray SMT Feeders employ servo-driven slides or belts to shuttle trays precisely under nozzles. Tube SMT Feeders leverage escapements or vibrators to release exactly one part per cycle.
Error-proofing features distinguish premium SMT Feeders: empty detection halts the line before starvation, while cover tape break sensors trigger alarms. Intelligent SMT Feeders log cycle counts and performance metrics, facilitating predictive maintenance schedules.
Top SMT Feeders boast feed accuracy of ±0.05mm, repeatability under ±0.02mm, and MTBF exceeding 10 million cycles. Tape width compatibility spans 8-72mm, with pitch ranges covering 01005 chips to 50x50mm QFNs. Highlywin's SMT Feeders meet IPC-9850 standards for placement rates, supporting CPH from 10,000 to 100,000+.
Vibration resistance, dust sealing (IP54+), and ESD-safe materials define rugged SMT Feeders for harsh environments. Changeover metrics matter too: smart SMT Feeders achieve under 5-minute swaps via kitting carts.
Effective SMT Feeder setup begins with barcode verification of components against the bill of materials. Thread tape through guides, align the first cavity, and execute test feeds to confirm peel and pickup. For trays, calibrate Z-height and XY offsets using machine vision.
Pre-kitting entire SMT Feeder banks offline accelerates changeovers from hours to minutes. Highlywin provides feeder management software that generates optimized slotting plans, grouping high-use SMT Feeders centrally for balanced head travel.
Daily SMT Feeder care involves compressed air blows and isopropyl wipes on tape paths. Weekly inspections check peel rollers for wear, motor currents for spikes, and sensors for dirt buildup. Highlywin's preventive maintenance kits include replacement peel blades, O-rings, and lubricants tailored to specific SMT Feeder models.
Troubleshooting follows systematic diagnostics: verify power/signal integrity, test empty detection, then isolate mechanical binds. Spare parts availability from Highlywin ensures same-day repairs, minimizing MTTR.
Highlywin bundles SMT Feeders with printers, SPI, placement, reflow, and AOI for turnkey lines. Custom SMT Feeder calibration services match feeder performance to client PCBs and alloys. Global logistics and 24/7 remote support extend SMT Feeder uptime beyond 98%.
SMT Feeders anchor efficient, high-yield PCB assembly, transforming raw components into precision circuits through reliable delivery. Mastering SMT Feeder selection, operation, and care unlocks production potential while slashing costs. Highlywin delivers complete SMT Feeder ecosystems—equipment, spares, and expertise—for sustained global success.
An SMT Feeder advances components from packaging to a precise pickup position synchronized with machine cycles. This ensures uninterrupted supply for optimal throughput and accuracy.
Tape SMT Feeders excel for 01005 to 1210 resistors/capacitors, offering high-speed indexing and minimal waste. Electric models provide superior precision for fine-pitch applications.
Intelligent SMT Feeders auto-configure via stored data, integrate with MES for traceability, and predict failures, reducing setup time by 80% and errors significantly.
Regular cleaning, wear part replacement per cycle counts, and calibration keep SMT Feeders reliable. Highlywin kits support 10+ million cycle MTBF.
Yes, retrofit electric/intelligent SMT Feeders boost speed and smarts on legacy machines. Highlywin ensures compatibility and seamless integration.
