Efficient PCB assembly depends not only on high-end SMT machines but also on the right SMT Accessories that support stable, fast, and repeatable production. Choosing optimized SMT Accessories helps reduce downtime, improve yield, and lower total manufacturing cost for every PCB you build.
Highlywin Electric Co., Limited is a global one‑stop SMT solution provider offering SMT/AI/peripheral equipment, SMT Accessories, full technical support, and spare parts for electronics manufacturers. As an integrated SMT Accessories supplier, Highlywin helps customers configure feeders, nozzles, stencils, storage, inspection add‑ons, and handling modules around existing lines from multiple brands.
To support flexible, high‑mix, or high‑volume production, Highlywin focuses on SMT Accessories such as SMT feeders, placement nozzles, conveyor modules, magazine loaders/unloaders, and SMT stencil systems to keep every process step stable and controllable. These SMT Accessories can be tailored to different pick‑and‑place platforms, making Highlywin suitable for EMS companies, OEMs, and in‑house factories seeking long‑term SMT partnerships.
SMT Accessories form the backbone of each production step, from solder paste deposition and component feeding to inspection and final handling. Even when the main machines are advanced, poor‑quality SMT Accessories can create bottlenecks, misplacements, and unnecessary rework that destroy overall line efficiency.
Well‑matched SMT Accessories allow you to:
- Maintain accurate component positioning and solder paste volume.
- Speed up changeovers and reduce operator intervention.
- Improve inspection coverage and early defect detection.
SMT feeders are among the most critical SMT Accessories, responsible for advancing components in tape, tube, tray, or bulk form to the pick‑and‑place head. Feeder reliability directly affects placement speed, component pick rate, and the frequency of line stoppages due to misfeeds or jams.
Key points for SMT feeders as essential SMT Accessories:
- Types include tape feeders, stick feeders, tray feeders, and bulk feeders, each suited to specific component packaging.
- Intelligent SMT feeders can store ID and component data, improving traceability and making changeovers faster and more error‑resistant.
Placement nozzles are precision SMT Accessories that pick, hold, and place SMD components using vacuum while maintaining accurate alignment. Different nozzle shapes and diameters are used for chip resistors, ICs, BGAs, LEDs, and odd‑form components.
High‑quality SMT Accessories in nozzles provide:
- Stable vacuum holding without damaging component bodies or terminations.- Consistent placement accuracy that supports fine‑pitch and high‑density PCB layouts.

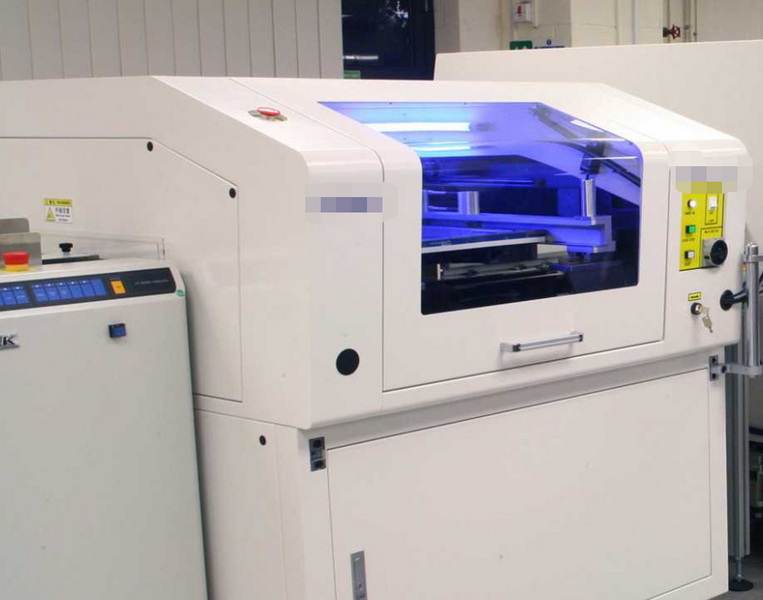

Solder paste stencils and their mounting frames are foundational SMT Accessories for screen printing accurate paste volumes onto pads. Proper stencil design and tension help minimize issues such as insufficient solder, bridging, and tombstoning.
As key SMT Accessories, stencils and frames:
- Provide consistent paste aperture geometry and thickness, essential for repeatable solder joint quality.
- Work together with the solder paste printer's squeegee system to control paste deposition across the entire panel.
Accessories for SMT stencil storage, such as stencil racks, backstops, and carts, are important SMT Accessories for protecting stencils and organizing changeovers. Poor storage can cause stencil damage, warping, or contamination that leads to recurring print defects.
These SMT Accessories help manufacturers:
- Keep stencils vertical, separated, and labeled for fast retrieval during product changeovers.
- Avoid mechanical scratches and contamination that can affect fine‑pitch apertures.

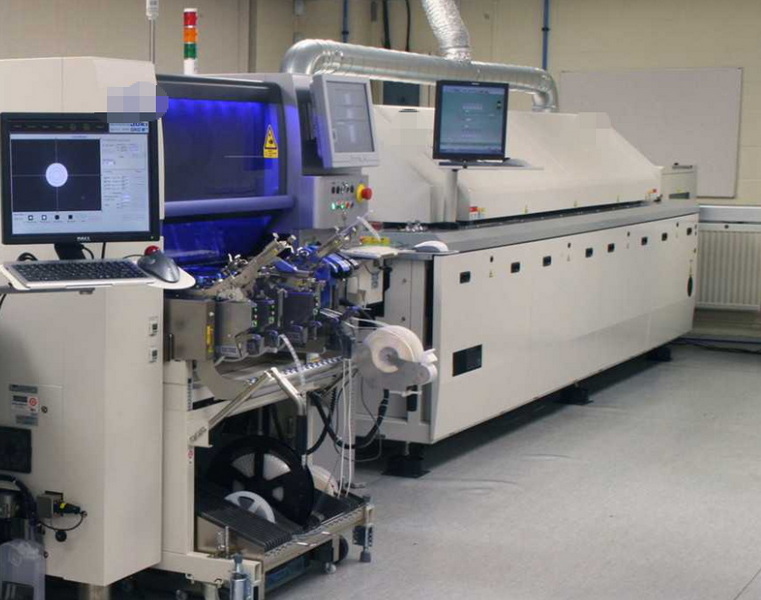

Conveyors, buffers, and turn modules are essential SMT Accessories that connect printers, placement machines, ovens, and inspection systems into one continuous line. Proper board handling with these SMT Accessories stabilizes panels during transfer and supports flexible throughput balancing between stations.
Common conveyor‑type SMT Accessories include:
- Link conveyors, inspection conveyors, and shuttle conveyors for multi‑line routing.
- Buffers and accumulators to absorb short interruptions and keep upstream or downstream processes running longer.
Magazine loaders and unloaders are SMT Accessories used to automatically feed and collect PCBs housed in magazines, supporting continuous and unmanned operation. These SMT Accessories are often installed at the beginning and end of the line or at intermediate inspection points.
Benefits of these SMT Accessories include:
- Reduced manual handling and risk of PCB damage.
- Easier integration with inline AOI, ICT, or functional testers in advanced lines.
Solder paste management tools are specialized SMT Accessories such as paste mixers, paste warmers, and storage containers that keep solder paste within recommended temperature and viscosity ranges. Correct handling of these SMT Accessories helps control print quality and reduce paste‑related defects.
These SMT Accessories are used to:
- Bring refrigerated solder paste to working temperature uniformly before printing.
- Track paste life on the line to avoid using expired material.
AOI (Automated Optical Inspection) and SPI (Solder Paste Inspection) fixtures rank among the most important SMT Accessories for process control. These SMT Accessories hold PCBs in a fixed and repeatable position under cameras or measurement heads to capture accurate inspection data.
Using proper AOI/SPI SMT Accessories enables:
- Stable clamping and accurate image capture for both paste and component inspection.
- Faster setup for new products by using adjustable or modular fixtures.
ESD‑safe trays, racks, gloves, tools, and PCB carts are SMT Accessories that protect sensitive components and assemblies from electrostatic discharge. Without ESD‑safe SMT Accessories, damage from invisible static events can reduce field reliability and increase returns.
Key ESD SMT Accessories used around SMT lines include:
- Conductive or dissipative PCB racks, feeders carts, and component bins.
- Wrist straps, mats, and ESD garments for operators working near open assemblies.
Spare parts and upgrade kits are strategic SMT Accessories that keep existing equipment running longer and performing at higher levels. Typical SMT Accessories in this category include sensors, belts, motors, vision cameras, lighting units, and software license options that extend machine capability.
As life‑cycle SMT Accessories, these items:
- Reduce unplanned downtime by providing fast replacement of worn mechanical parts.
- Allow incremental improvements in speed, accuracy, or functionality without buying a completely new machine.
Selecting SMT Accessories starts with understanding your product mix, volumes, component types, and quality requirements. For example, fine‑pitch BGAs and 0201 chips demand precise nozzles, stencils, and SPI fixtures, while large, heavy parts need dedicated feeders and support tooling.
Working with a one‑stop partner such as Highlywin can simplify sourcing of compatible SMT Accessories across multiple machine brands and generations. Centralized SMT Accessories planning also makes it easier to standardize spare parts, control inventory, and roll out upgrades across multiple production sites.
Optimized SMT Accessories are just as crucial as the core machines in building a reliable and efficient PCB assembly process. From SMT feeders and nozzles to conveyors, stencil systems, ESD tools, and smart inspection fixtures, the right SMT Accessories help stabilize each stage, reduce defects, and boost throughput for modern electronics manufacturing.
Highlywin Electric Co., Limited combines supply of SMT, AI, and peripheral equipment with a deep portfolio of SMT Accessories and spare parts, making it a trusted one‑stop SMT partner for global factories. By aligning the top 10 SMT Accessories with your product roadmap and process requirements, you can unlock higher yields, lower costs, and a more competitive SMT production line.
SMT Accessories are supporting tools and components used around SMT lines, including feeders, nozzles, stencils, conveyors, loaders, inspection fixtures, and ESD storage systems. These SMT Accessories ensure that core machines can operate at their designed speed and accuracy, reducing defects and unplanned stoppages in PCB assembly.
In high‑mix environments, SMT Accessories should focus on quick changeovers, flexible component handling, and easy setup. Intelligent SMT feeders, modular AOI/SPI fixtures, and well‑organized stencil and feeder storage systems are key SMT Accessories that help keep changeover times low while supporting many product variants.
Nozzles and SMT feeders should be cleaned and inspected regularly based on operating hours, component types, and paste characteristics. Preventive maintenance of these SMT Accessories—such as vacuum hole cleaning, tape path inspection, and sensor checks—reduces mispicks, improves placement quality, and extends service life.
Yes, dedicated AOI and SPI fixtures, support pins, and stable handling modules are SMT Accessories that directly enhance inspection consistency and coverage. By holding boards flat and repeatable under cameras, these SMT Accessories provide better defect detection and help you correct process issues earlier in the line.
One‑stop suppliers such as Highlywin can provide matched SMT Accessories, spare parts, and equipment across multiple SMT brands, simplifying procurement and technical support. This approach centralizes SMT Accessories planning, reduces compatibility risk, speeds up problem resolution, and often lowers total cost of ownership over the life of your SMT lines.
