In today's competitive electronics manufacturing environment, SMT Pick And Place Machines have become indispensable to achieving high efficiency, throughput, and product consistency. For small to medium enterprises (SMEs), selecting the right machine can be the difference between struggling with production limitations and scaling profitably to meet global market demand.
At Highlywin, we specialize in providing comprehensive SMT solutions, from top-quality machines and automation systems to spare parts, service support, and full production line integration. This guide walks you through everything you need to know to select the best SMT Pick And Place Machine for your business—covering features, models, pricing considerations, and performance tips.

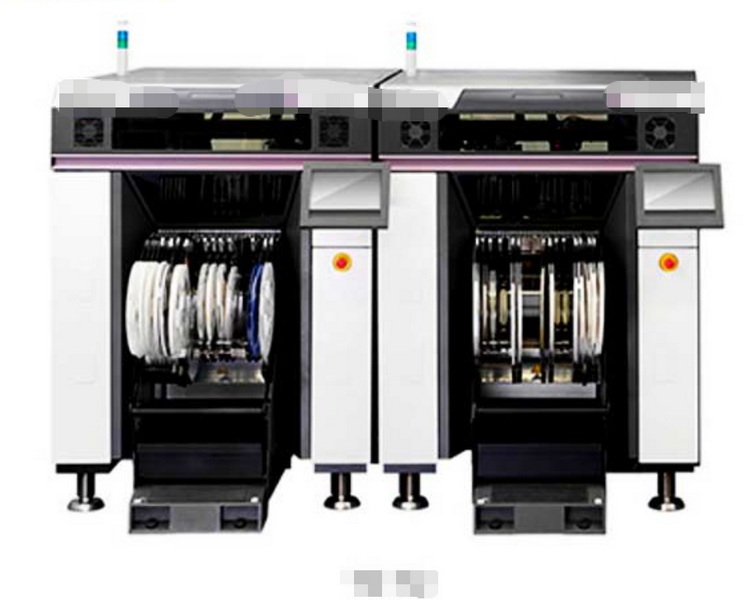

A Surface Mount Technology (SMT) Pick And Place Machine is the central piece of equipment in an electronics assembly line. It automatically picks surface-mounted components (SMDs) using vacuum nozzles and places them precisely on a printed circuit board (PCB) pre-coated with solder paste. It replaces the slow, error-prone manual placement process and enables mass production of electronic boards with unmatched precision.
Modern pick-and-place systems combine precision mechanics, optical alignment technology, and software automation. The combination ensures reliability whether placing minuscule 0201 resistors or large BGA packages. The result is consistent, high-speed assembly with minimal human intervention.

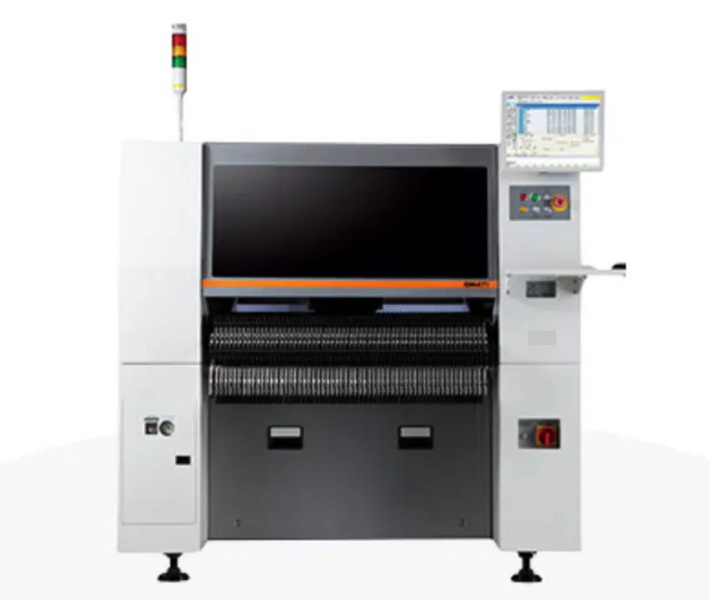

While multinational corporations have used automated assembly lines for decades, SMEs have traditionally hesitated due to cost. However, recent technological advancements have made SMT Pick And Place Machines more affordable, modular, and user-friendly than ever. Today, even small production houses can benefit from automation.
Key advantages include:
- Higher efficiency: Machines can place components up to tens of thousands per hour, enabling lean production cycles.
- Accuracy assurance: Advanced vision systems achieve sub-millimeter precision and automatic polarity correction.
- Labor savings: Fewer operators are needed, freeing human resources for quality control and R&D tasks.
- Scalability: Modular design allows easy expansion as order quantities grow.
- Consistency and quality: Automated systems guarantee uniform results on every board, reducing rework rates.
For small manufacturers targeting export markets, adopting a reliable SMT Pick And Place Machine is an essential step toward global competitiveness.
A full understanding of the machine's structure helps in choosing and maintaining it effectively. An SMT placement system typically contains:
- Nozzle heads: Suction-based tools that grab and place components.
- Feeders: Hold tapes, tubes, or trays that supply components to the pick head.
- Vision system: Cameras align and identify parts using fiducial marks.
- X-Y gantry system: Controls high-speed, precision movement across the PCB.
- Controller software: Handles placement programs, alignment data, and diagnostics.
The interplay of these elements determines how smoothly the production process runs. A weakness in any part compromises accuracy or throughput.
Selecting the right model depends on production size, component diversity, and future scaling plans. Below are several SMT Pick And Place Machines trusted by engineers and manufacturers worldwide.
Highlywin's HW-P6 Series is designed for small and mid-volume manufacturers looking for a balance between affordability and industrial precision. It's versatile, capable of handling 0201 microchips to 50 mm integrated circuits.
Highlights:
- Placement speed up to 10,000 CPH.
- Feeder capacity of 60 positions.
- Dual-camera vision for accuracy.
- Intelligent job scheduling for different product batches.
- Compact frame ideal for limited floor space.
This model suits production environments that require frequent product switching, quick setup, and reliable accuracy without industrial-scale investment. As part of Highlywin's ecosystem, it integrates seamlessly with conveyors, solder paste printers, and reflow ovens.
The Yamaha YS24 has earned a reputation for speed and flexibility. Its twin-beam placement head design allows it to reach productivity levels exceeding 70,000 CPH, which is impressive for a mid-range platform.
Advantages:
- Modular construction supports line expansion.
- Smart feeder system minimizes loading time.
- Advanced vision algorithms prevent misplacements.
- Excellent stability for continuous operation.
It's a strong candidate for SMEs moving toward medium or large-scale production while maintaining operational flexibility.
The Juki RS-1R combines intelligence and performance, offering adaptive recognition technology that automatically detects component size and height. This reduces manual setup and ensures optimal pick height in real-time.
Key features:
- Self-optimized placement algorithm.
- Vision alignment adaptable to various shapes and angles.
- Up to 47,000 CPH throughput.
- Easy feeder change system for multi-product lines.
Its balance between high performance and intuitive use makes it one of the top choices for growing factories.
The Neoden K1830 is often a favorite among start-ups and small enterprises due to its compact size and remarkable value. Despite its smaller footprint, it delivers professional-grade performance.
Features:
- Speed up to 16,000 CPH.
- Effective dual-camera vision system.
- Simple GUI for programming and debugging.
- Integrated feeders suitable for prototype and short-run jobs.
This model is an excellent entry point for automation, enabling smaller firms to meet rising customer expectations in speed and accuracy.
Not every SMT Pick And Place Machine fits every business model. Consider these essential factors before making a final purchase decision.
Estimate your monthly board output and required components per board. Low-volume prototyping can be efficient with a 5,000–10,000 CPH machine, but full-scale production lines may need 30,000–60,000 CPH capacity.
Look at component diversity. If your designs include microchips, BGA, QFN, and large connectors, ensure the machine's vision system and nozzles can accommodate the entire spectrum. The more versatile the machine, the fewer bottlenecks you'll face.
Feeders represent the backbone of efficiency. Opt for models that feature quick-change mechanisms or intelligent feeders with barcode or RFID tracking for supply management. These reduce downtime dramatically between changeovers.
Machine precision depends heavily on its camera system. Dual or upward/downward cameras identify fiducials and verify placement angles. Subpixel vision calibration ensures components sit exactly where intended.
Usability is crucial for SMEs with limited staff training time. Look for software that allows importing PCB data directly from EDA programs, offline program editing, and intuitive error diagnostics.
While cost is a major factor, total ownership cost—including maintenance, spare parts, and training—matters more. A slightly higher upfront investment can save thousands in repair and downtime later. Brands with accessible global service networks, such as Highlywin, offer peace of mind.
Once you have chosen the right SMT Pick And Place Machine, proper installation is key to performance. Ensure your environment has stable temperature and humidity, as these affect placement precision. Vibration isolation should also be implemented since even minor mechanical disturbances can lead to misalignment.
During line setup:
- Position the pick-and-place system after the solder paste printer and before the reflow oven.
- Confirm smooth PCB hand-off between conveyors.
- Calibrate fiducial recognition before running production.
- Simulate a dry run to test alignment accuracy.
When your machine integrates with AOI (Automated Optical Inspection) or SPI (Solder Paste Inspection), your factory will achieve end-to-end quality verification.
A well-maintained SMT system delivers consistent results for years. Here are best practices to keep your SMT Pick And Place Machine running efficiently:
1. Daily cleaning: Remove dust and solder paste residues from nozzles and feeders.
2. Regular calibration: Align the vision system and verify X-Y axis accuracy weekly.
3. Lubrication: Follow factory guidelines for mechanical arm lubrication.
4. Nozzle replacement: Swap worn or clogged nozzles promptly to preserve suction stability.
5. Data backup: Frequently store machine configuration files to safeguard against software crashes.
6. Preventive service checks: Schedule inspections by certified technicians every six months.
By enforcing these habits, downtime will decrease, component waste will reduce, and long-term ROI will improve significantly.
Highlywin delivers far more than equipment sales. We provide complete support across the SMT ecosystem—including consulting, technical training, on-site installation, and international servicing. Our global customers benefit from:
- Customizable SMT production line planning.
- High-quality machines for pick and place, solder paste printing, AOI, and reflow.
- 24/7 technical assistance and spare part supply.
- IoT and AI integration for smart manufacturing.
We collaborate directly with clients to align automation strategies with specific production goals—whether it's small prototype assembly or full-scale industrial output.
SMT manufacturing continues to evolve toward greater automation and intelligence. Here are several trends shaping the next generation of SMT Pick And Place Machines:
- AI-driven optimization: Algorithms now auto-adjust pick heights, rotation, and placement sequence to raise efficiency.
- Inline data analytics: Machines track performance metrics for predictive maintenance.
- Smarter feeders: Intelligent modules identify and auto-load components using barcode data.
- Compact design: Space-saving frames cater to SMEs with smaller factory floors.
- Eco-efficiency: Energy-saving motors and reduced air consumption lower operational costs.
By embracing these trends, SMEs can prepare for future-ready, Industry 4.0-compliant assembly lines.
When planning an investment, assess how much automation fits your current and future workload.
- Manual machines: Best for low-frequency prototyping. Operators handle placement using mechanical aids.
- Semi-automatic machines: Automate pick-and-place but require manual feeder handling. Suited for small-batch production.
- Fully automated machines: Offer maximal throughput and minimal labor demands. Perfect for continuous manufacturing environments.
Startups may begin with semi-automatic systems and later upgrade to fully automated lines when production grows. Modular Highlywin systems make this transition seamless.
An often-overlooked aspect of investing in an SMT Pick And Place Machine is return on investment (ROI). The primary costs include the machine price, auxiliary equipment (feeders, conveyors, ovens), and training. But by automating placement, SMEs typically recover their investment within 12–24 months.
ROI benefits arise from:
- Fewer defective boards.
- Reduced manual labor.
- Faster turnaround for orders.
- Improved capacity utilization.
When properly implemented, automation ensures steady profitability and operational scalability.
Beyond performance, it's important to operate SMT equipment safely and responsibly. Ensure compliance with ESD protection methods, use antistatic flooring, and ground your equipment properly. For environmental responsibility, choose machines with energy-efficient pneumatic systems and low-noise motors, contributing to both sustainability and worker comfort.
Selecting the best SMT Pick And Place Machine is far more than a purchase—it's an investment in your company's productivity, precision, and future growth. SMEs can benefit enormously from modern models that combine affordability with high performance, like the Highlywin HW-P6, Yamaha YS24, and Juki RS-1R.
With proper installation, maintenance, and operator training, these systems deliver consistent results for years. Backed by Highlywin's comprehensive technical support, you can confidently automate production, maintain quality, and stay ahead in the electronics manufacturing race.
For enterprises seeking a trusted partner in SMT machinery, Highlywin stands ready to deliver turnkey solutions that elevate your manufacturing capabilities to global standards.
It automatically places surface-mounted components onto printed circuit boards using high-speed vacuum nozzles and precision vision control, replacing manual soldering or placement processes.
Start by assessing production volume, component range, feeder requirement, and software compatibility. For SMEs, a flexible mid-range model like Highlywin's HW-P6 Series is often ideal.
Regular maintenance includes daily cleaning, weekly calibration, and biannual professional service checks. Proper preventive care ensures long service life and stable performance.
Most modern SMT systems handle 0201-size chips to large BGAs and connectors. Vision calibration allows recognition of various shapes and materials.
Yes. Highlywin offers global technical support, remote diagnostics, spare parts supply, and operator training to keep your assembly line running efficiently at all times.
