Integrating a new SMT Pick And Place Machine into an existing production line transforms operational efficiency, boosts throughput, and enhances precision for high-volume electronics manufacturing. This comprehensive guide details every step, from assessment to optimization, ensuring seamless adoption of advanced SMT Pick And Place Machine technology. Highlywin, as a leading provider of SMT/AI/peripheral equipment and full-service support, delivers one-stop SMT solutions tailored for global customers.
Before introducing a new SMT Pick And Place Machine, conduct a thorough audit of your existing setup to identify bottlenecks and compatibility issues. Mapping the entire line—including solder paste printers, stencil cleaners, inspection systems, conveyors, reflow ovens, and selective soldering stations—reveals how the new SMT Pick And Place Machine will fit mechanically and operationally.
Key metrics to measure include cycle times, uptime percentages, defect rates per million opportunities (DPMO), and changeover durations for different product mixes. For instance, high-mix environments often suffer from feeder setup delays, while high-volume runs may be limited by placement head speed or vision system accuracy in the current SMT Pick And Place Machine.
Document PCB panel sizes, component profiles (from 01005 passives to large QFNs and BGAs), and material handling requirements. This baseline data ensures the selected SMT Pick And Place Machine addresses real constraints, such as feeder capacity limitations or inadequate support for odd-form components, preventing costly mismatches post-installation.
Define specific, measurable objectives to justify the investment in a new SMT Pick And Place Machine. Common goals include doubling line output for consumer electronics, enabling 0.3mm pitch fine-pitch placement for automotive PCBs, or slashing setup times by 50% for frequent product switches.
Quantify targets like achieving 100,000 components per hour (CPH) placement rates, reducing first-pass yield losses below 200 PPM, or improving overall equipment effectiveness (OEE) from 75% to 90%. Align these with business priorities, such as supporting just-in-time (JIT) delivery for global OEM clients or scaling for 5G module production.
Consider scalability: select an SMT Pick And Place Machine that supports modular expansions, like adding gantry modules or high-speed jet dispensers, to future-proof your line against evolving SMT demands.
Machine selection hinges on matching specifications to your production profile rather than chasing peak specs. Evaluate gantry rigidity for high-speed stability, head configurations (turret vs. linear), and nozzle changer capacity to handle diverse component heights and shapes in the SMT Pick And Place Machine.
Feeder systems are critical: prioritize intelligent feeders with auto-splicing, stick/tube/tray compatibility, and trolley-based quick-change for minimal downtime. Vision capabilities—downward-looking cameras for fiducials, side-view for lead coplanarity—ensure precise placement on warped boards or flexible substrates.
Software ecosystems matter equally: opt for SMT Pick And Place Machines with open APIs for ERP/MES integration, offline programming suites, and AI-driven optimization algorithms that auto-balance loads across multiple units. Factor in total cost of ownership (TCO), including energy efficiency, uptime guarantees, and Highlywin's global spare parts network.

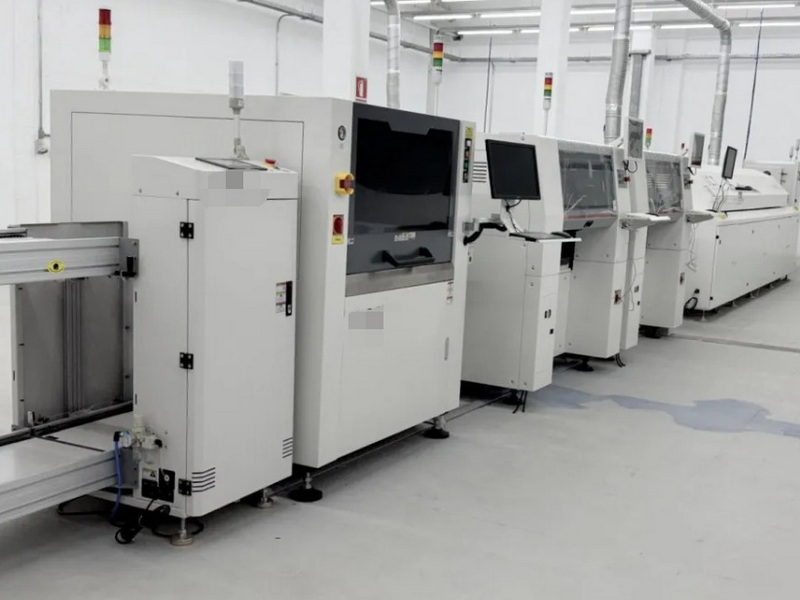

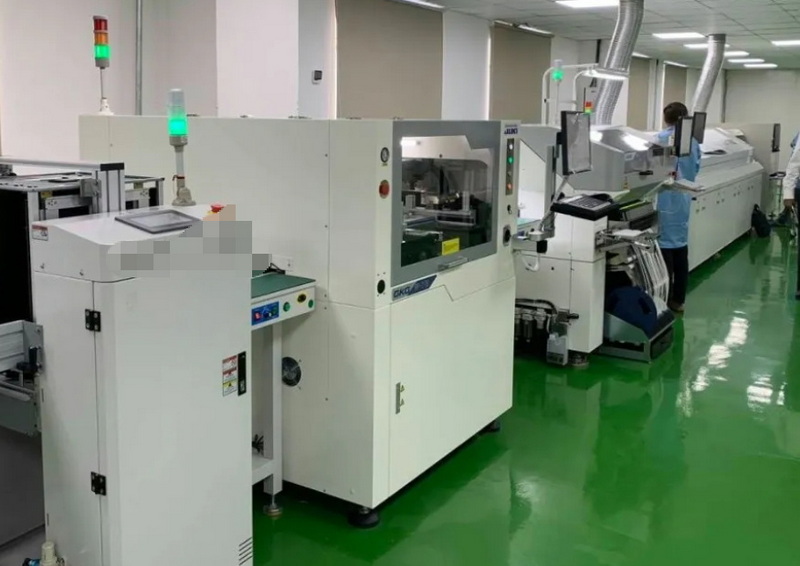

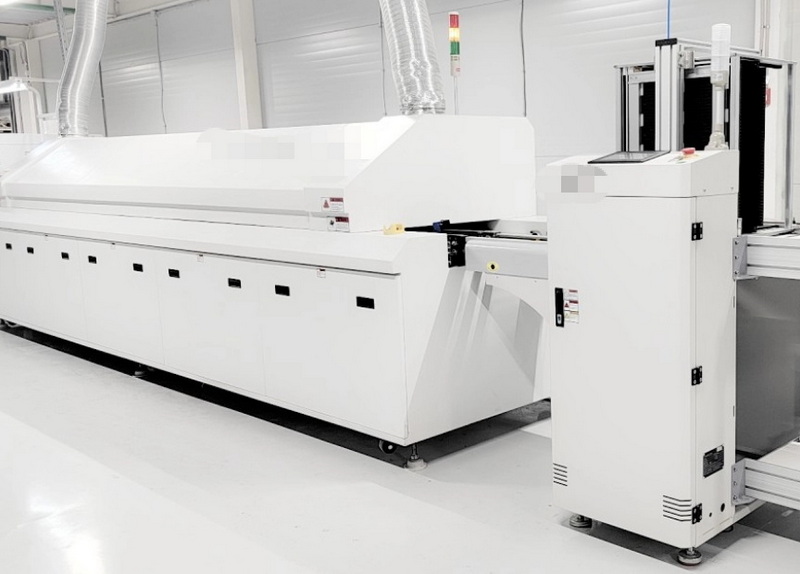

Optimal line layout positions the new SMT Pick And Place Machine to minimize board travel distances and operator interventions. Standard sequences place printers first, followed by one or more SMT Pick And Place Machines for passives/high-speed parts, then specialized SMT Pick And Place Machines for ICs/odd-forms, AOI, and reflow.
Incorporate edge-lift detection, board flipping if needed, and buffer stacks to decouple processes, preventing starvation or blocking around the SMT Pick And Place Machine. Ensure adequate clearances for feeder exchanges (at least 1.2m front access) and maintenance paths.
Address utilities: three-phase power (380V/50Hz typical), clean dry air (6 bar), nitrogen for fluxless reflow, and full ESD flooring. Modular conveyor designs from Highlywin allow reconfiguration without halting production, ideal for dynamic SMT Pick And Place Machine integrations.
Harmonize data flows to make the SMT Pick And Place Machine a smart node in your factory's digital backbone. Standardize inputs like ODB++, IPC-2581, or Valor process preparation files across all machines, ensuring consistent component libraries with verified heights, rotations, and no-placement zones.
Implement centralized programming: tools like those from Highlywin generate optimized pick lists, nozzle assignments, and feeder maps for any SMT Pick And Place Machine model, reducing engineering time by 70%. Enable SECS/GEM protocols for host communication, automatic job queuing via barcode/RFID, and real-time telemetry on placement yields.
Traceability elevates quality: log every pick attempt, vision verification, and anomaly (e.g., tombstoning risks) per component lot, feeding into analytics platforms for predictive maintenance on the SMT Pick And Place Machine.
Post-installation, calibrate the SMT Pick And Place Machine meticulously: zero gantry axes, align Z-height sensors, teach fiducials on golden sample boards, and verify nozzle vacuum with force gauges. Run GR&R studies (gauge repeatability and reproducibility) targeting <10% variation for critical placements.
Validate across extremes: thinnest flex boards (0.4mm), largest panels (510x460mm), and tallest components (25mm). Use SPI/AOI feedback loops to fine-tune offsets, with iterative runs confirming <25µm accuracy at 3-sigma.
Pilot production on representative mixes builds confidence: monitor CPH actuals vs. simulated, feeder uptime, and first-article inspections before full release.
Balance multi-SMT Pick And Place Machine lines by partitioning workloads dynamically. High-speed SMT Pick And Place Machines handle 0201-0805 passives at 150k CPH, while precision units tackle QFPs/BGAs below 50k CPH, minimizing idle time.
Simulation software models scenarios: split feeders 60/40 for volume/mix, optimize head paths with genetic algorithms, and simulate changeovers. Real-time optimizers adjust splits mid-job based on incoming orders.
This approach lifts bottleneck-limited throughput by 30-40%, common in Highlywin-supported lines.
Efficient feeders amplify SMT Pick And Place Machine performance: standardize 8/12/44mm tape widths, embed RFID for auto-ID, and use cart exchangers for <5-minute swaps. Offline kitting stations preload carts via scanned BOMs, overlapping with production.
For high-mix, group feeders by family (e.g., decoupling caps first 48 slots), enabling quick setups. Smart feeders detect jams, splice tapes automatically, and report inventory depletion, integrating with ERP for JIT replenishment.
Embed the SMT Pick And Place Machine in closed-loop quality: pre-placement SPI flags paste defects, post-placement AOI correlates misses to specific heads/feeders, triggering auto-pause and root-cause analysis.
Key performance indicators (KPIs) include pickup success (>99.8%), placement offset (<30µm), and feeder error rates. Dashboards aggregate data across SMT Pick And Place Machines, using ML to predict failures from vibration trends or vacuum drops.
Preventive schedules—daily nozzle wipes, weekly vision cleans, quarterly belt tensions—sustain peak performance.
Tailor training tiers: operators master daily startups, alarm clears, and safety interlocks on the SMT Pick And Place Machine; technicians handle PMs and repairs; engineers optimize programs.
SOPs with visuals cover ESD protocols, LOTO for power-downs, and emergency stops. VR simulations accelerate onboarding, reducing ramp-up from weeks to days.
Highlywin streamlines integration with site surveys, custom line builds, commissioning, and 24/7 remote monitoring. Global spare logistics ensure <48-hour nozzle deliveries, while process audits optimize every SMT Pick And Place Machine post-install.
Successfully integrating new SMT Pick And Place Machines demands holistic planning across hardware, software, processes, and people, yielding dramatic gains in speed, accuracy, and flexibility. By following these steps—from audits and selection to balancing and monitoring—manufacturers unlock peak performance. Partnering with Highlywin ensures turnkey execution, minimizing risks and maximizing ROI for every SMT Pick And Place Machine deployment.
Conduct line audits measuring throughput, bottlenecks, and PCB specs to ensure compatibility. Define KPIs like CPH targets and OEE goals, then select based on feeder/vision matches.
Use simulation tools to partition components—speed units for passives, precision for ICs—optimizing cycle times and minimizing idles for 30%+ throughput gains.
Standardize CAD/BOM inputs, enable MES connectivity for job queuing, and deploy unified libraries for cross-machine programming, enhancing traceability and efficiency.
Typically 1-2 days for full calibration, GR&R, and pilot runs, followed by iterative tuning via AOI feedback to achieve production-ready stability.
Full lifecycle services: installation, training, PM contracts, remote diagnostics, and global spares, ensuring sustained high uptime and performance optimization.
