In the highly competitive world of electronics manufacturing, precision, speed, and reliability define success. Surface Mount Technology (SMT) continues to drive advancements in how electronic components are placed onto printed circuit boards (PCBs). Among all the sophisticated components that make up an SMT production line, few are as essential as the SMT Feeder.
While often overlooked as a simple accessory, the feeder's performance directly impacts output speed, accuracy, and yield. Poor-quality or mismatched feeders can cause misplacements, downtime, and production inefficiency. Choosing the right SMT Feeder isn't just a technical decision—it's a strategic investment in consistent, high-quality assembly.
An SMT Feeder is a precision device that stores and delivers electronic components to a pick-and-place machine during PCB assembly. Its job is to move each component—whether from tape, tube, tray, or stick packaging—into position accurately so the machine's robotic arm can pick it up and place it on the PCB.
By automating component feeding, feeders ensure consistency and high throughput in production. They eliminate manual handling errors and support uninterrupted assembly, making them indispensable to modern electronics manufacturing.
The SMT Feeder is a foundational element of automated surface mounting. It ensures that every component is accurately positioned for pickup at the right time and in the right orientation. Poor feeders can interrupt production and result in costly errors.
High-quality SMT feeders provide benefits such as:
- Increased efficiency: Components are consistently available for pick-up, maximizing machine uptime.
- Improved accuracy: Alignment precision ensures correct placement during high-speed assembly.
- Reduced waste: Proper feeding prevents mispicks and dropped parts.
- Stable performance: A reliable feeder extends machine life and supports continuous operation.
Each of these benefits contributes to the overall output quality and economic performance of your SMT line.
Choosing the correct feeder type is crucial. Different components require different packaging and feeding methods. Understanding each feeder category helps you make better investment decisions.

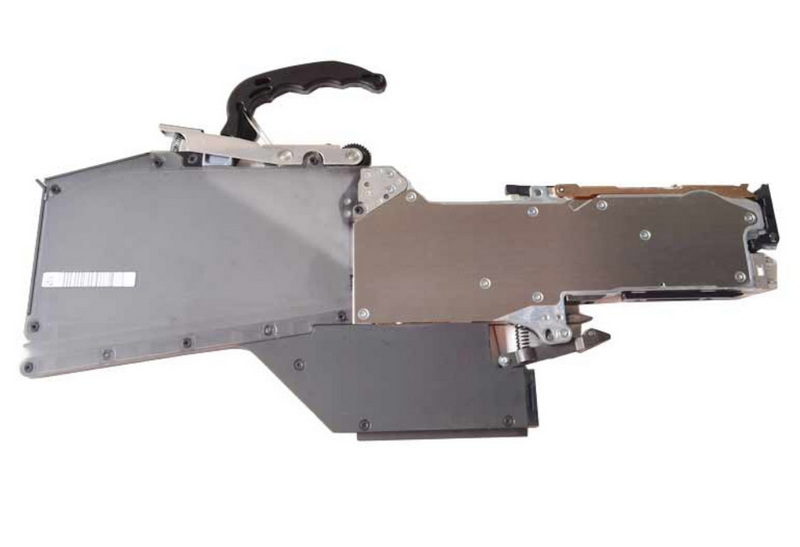

Tape feeders are the most widely used. They handle reel-based components packaged in carrier tapes sealed with cover films. The feeder peels back the cover tape and positions components precisely.
Advantages:
- Fast loading and unloading
- Ideal for high-speed production
- Supports a wide range of SMD components
Applications: Chip resistors, capacitors, transistors, ICs, and diodes.
Tube (or stick) feeders are used for components supplied in tubular packages, often larger and irregular in shape.
Advantages:
- Simple structure and cost-effective
- Suitable for medium or low-volume production
Applications: Connectors, switches, pin headers, and large ICs.
Tray feeders hold components in carriers or JEDEC trays, suitable for fragile, large, or high-value ICs.
Advantages:
- Gentle handling method
- Prevents mechanical stress damage
Applications: QFPs, BGA chips, and other ICs sensitive to scratching or bending.
Vibration feeders deliver special components through vibration channels.
Advantages:
- Useful for non-standard or odd-shaped components
- Flexible customization available
Applications: Customized components and mechanical parts.
Intelligent Feeder technology is now the industry's benchmark for smart production lines. These feeders include RFID chips or barcode verification systems that store real-time data about components.
Advantages:
- Automatic recognition of component type and quantity
- Integration with ERP or MES systems for factory automation
- Reduces human error and improves traceability
Applications: Industry 4.0-driven facilities and advanced automated lines.
Even though SMT feeders vary by manufacturer, most share similar core components. Understanding them helps diagnose performance issues or optimize line performance.
- Feeder Base: Provides structural support and stability when locked into the placement machine.
- Advance Mechanism: Moves the component tape with precision, ensuring consistent pitch.
- Cover Tape Rewind System: Removes and rolls up the cover tape automatically to expose components.
- Pick Point: Where the nozzle retrieves each component.
- Sensors and Control Units: Detect the presence of components and prevent feeding errors.
These parts work together in milliseconds to feed, expose, and reset for the next pick-up cycle.
Selecting the right SMT Feeder requires evaluating several criteria to ensure compatibility, performance, and efficiency.
Always match feeders with the brand and model of your pick-and-place system. Popular feeder brands like Yamaha, JUKI, FUJI, PANASONIC, and ASM use different mechanical interfaces and firmware communication standards. Using incompatible feeders could result in alignment issues or malfunction.
Component packaging format determines which feeder type you need—tape, tube, tray, or vibration. A mismatch can cause jams or misfeeds, slowing down production.
The feeder pitch defines the component spacing in the tape (commonly 2mm, 4mm, or 8mm). Likewise, tape width (8mm, 12mm, 16mm, or 24mm) must align with tape specification. For example, an 8mm feeder typically supports smaller chips like 0402 or 0603.
In modern mass production, even milliseconds matter. A high-speed SMT Feeder that maintains precision feeding ensures synchronized operation with the pick-and-place head, reducing idle time and improving cycle time.
Intelligent feeders can store feeder ID, component data, and reel serial numbers. They integrate seamlessly with production software to track which component was used on which board—vital for quality control.
The ideal feeder should be quick to install, easy to calibrate, and simple to maintain. Automated setup validation and tool-free reel loading save valuable time during product changeover.
Consistent performance requires reliable support. Choose feeders from suppliers who offer complete technical services, spare parts accessibility, and calibration guidance.
While budget feeders are tempting, they often trade accuracy and lifetime for initial savings. A balanced approach considers total cost of ownership—factoring in maintenance, downtime prevention, and longer service life.
Smart manufacturing trends are transforming PCB assembly. Intelligent SMT Feeders are now essential for digitalized factories. These feeders go beyond mechanical operation—they communicate data in real-time.
Key advancements include:
- RFID identification systems: Automatically record component reel information.
- Feeder monitoring software: Tracks usage frequency, wear level, and maintenance schedules.
- Integration with MES/ERP: Synchronizes component data, ensuring traceability across production lines.
- Automatic error alerts: Operators receive real-time warnings for mismatched or low reels.
The result is enhanced efficiency, reduced human error, and seamless traceability—crucial for quality audits and industry compliance.
No matter how advanced your SMT Feeders are, consistent maintenance is essential for sustained performance. Preventive care minimizes downtime, reduces scrap, and extends equipment life.
- Clean dust, tape debris, and adhesive residue from feeder tracks.
- Check sensor windows for contamination.
- Ensure smooth movement of the advance mechanism.
- Inspect spring tension, pulleys, and reel alignment.
- Verify feeder clamping and locking performance on the pick-and-place station.
- Lubricate movable joints using approved lubricant.
Feeder calibration aligns mechanical parts with the pick-up point. Improper calibration leads to component misplacement. Use feeder calibration systems every 3–6 months to ensure accurate indexing.
Commonly replaced items include:
- Robotic pulleys
- Tension springs
- Cover tape guides
- Optical sensors
Early replacement prevents breakdowns during critical production runs.
Highlywin provides a complete range of products and services designed for global SMT manufacturing. As a trusted one-stop SMT service provider, our capabilities include:
- Comprehensive SMT feeder selection (new and reconditioned)
- Feeder repair, tuning, and calibration services
- Sales of SMT/AI/Peripheral equipment
- Spare parts supply and logistics support
- On-site technical assistance and installation
Our engineering team ensures every SMT Feeder functions at peak performance, optimized for your specific PCB assembly needs. We help clients plan line layouts, improve feeder efficiency, and maintain consistent production quality.
If you're still using mechanical feeders without any digital tracking, upgrading to intelligent SMT feeders can significantly improve your throughput and traceability.
Benefits of upgrading include:
- Streamlined reel verification during changeover.
- Reduced defect rates through auto-recognition functions.
- Enhanced data analysis for continuous improvement.
- Shorter setup time and improved feeder organization.
This transformation supports Lean Manufacturing principles and aligns with emerging Industry 4.0 requirements.
Before finalizing your purchase, consider conducting a feeder performance evaluation. Run test batches using different models under the same production conditions to compare feeding accuracy, component wastage, and mechanical stability.
Metrics worth benchmarking include:
- Feeding error rate (%)
- Average cycle time (ms)
- Downtime frequency
- Feeder life expectancy
By quantifying these parameters, you make a data-driven decision that ensures sustainable efficiency and cost control.
With growing miniaturization and the rise of microelectronics, SMT Feeders are evolving to meet even tighter tolerances and faster speeds. The next generation of feeders will focus on:
- Integration with machine-learning-based predictive maintenance
- Miniaturized component feeding systems for 01005 packages
- Wireless feeder communication and diagnostics
- Modular automatic feeder change systems
These trends demonstrate how feeders are becoming smarter, lighter, and more modular, turning feeder setup into an intelligent, automated process.
Choosing the right SMT Feeder is a critical step in optimizing your PCB assembly performance. It affects accuracy, efficiency, and production stability. From conventional tape feeders to cutting-edge intelligent feeders, each choice influences product quality and cost-effectiveness.
At Highlywin, we help manufacturers worldwide evaluate, select, and maintain feeders that fit their exact process needs. With our expertise in equipment, spare parts, and service, you can achieve stable, high-speed, and precise SMT assembly operations—now and for the future.
An SMT Feeder provides electronic components to the pick-and-place head in a consistent and automated manner, ensuring precise and efficient component delivery onto the PCB.
Not always. Feeders are often compatible only with specific machine models. Always verify brand compatibility (e.g., JUKI feeders for JUKI machines).
When components are off-position, missing, or jammed frequently, calibration or parts replacement is required. Periodic calibration every few months is recommended.
They offer auto-identification, traceability, and integration with production management software. These functions help improve productivity and reduce operator errors.
Highlywin offers a complete one-stop SMT service—including feeder sales, calibration, and technical support—helping you maintain productivity, quality, and long-term cost control.
