What Does An SMT Line Cost in 2025?

Views: 222     Author: Ann     Publish Time: 2025-12-09      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Content Menu

Introduction to SMT Lines and SMT Machines

Core Components of an SMT Line Featuring SMT Machines

>> Solder Paste Printers as Essential SMT Machines

>> Pick-and--Place SMT Machines: The Heart of the Line

>> Reflow Ovens and Other Thermal SMT Machines

SMT Line Cost Breakdown by Scale and Type

>> Entry-Level SMT Lines with Affordable SMT Machines

>> Mid-Range SMT Lines for Growing Operations

Key Factors Driving SMT Line and SMT Machine Costs

>> Brand Prestige, Origin, and SMT Machine Quality

>> Automation Level and AI Enhancements in SMT Machines

>> Throughput, Precision, and SMT Machine Capacity

>> Infrastructure, Software, and Operational Overhead

Hidden Costs, Savings, and Highlywin's Value Proposition

Conclusion

FAQ

>> 1. What is the starting cost for a basic SMT line with SMT machines in 2025?

>> 2. Which SMT machine costs the most in an SMT line?

>> 3. How can Highlywin reduce SMT line expenses?

>> 4. What are annual operating costs for SMT machines?

>> 5. Are there financing options for expensive SMT machines?

Introduction to SMT Lines and SMT Machines

Surface Mount Technology (SMT) lines form the cornerstone of contemporary electronics manufacturing, leveraging advanced SMT machines to automate the assembly of printed circuit boards (PCBs) with unparalleled precision and speed. In 2025, the surging demand for high-performance SMT machines has transformed the industry, with companies like Highlywin leading the charge by offering sales of SMT machines, AI-integrated systems, peripheral equipment, comprehensive service support, and spare parts sales tailored for global clients seeking one-stop SMT solutions. The cost of an SMT line in 2025 can vary dramatically depending on its configuration, scale, and technological sophistication—entry-level setups equipped with basic SMT machines might start as low as $100,000, while fully automated, high-volume production lines featuring cutting-edge SMT machines can exceed $2 million or even reach $8 million for enterprise-grade installations.

This comprehensive guide delves deeply into the intricacies of SMT line pricing in 2025, drawing on insights from premier SMT machine manufacturers and industry analyses. It covers core components powered by SMT machines, detailed cost breakdowns by production scale, key influencing factors, hidden expenses, cost-saving strategies, and the pivotal role of providers like Highlywin in delivering reliable SMT machines and support. By understanding these elements, businesses can make informed investments in SMT machines that optimize return on investment (ROI) while minimizing total cost of ownership (TCO). Highlywin's expertise ensures that every SMT machine in your line operates at peak efficiency, supported by readily available spares and expert service to handle the demands of modern electronics production.

The evolution of SMT machines has been remarkable, with 2025 models incorporating AI-driven vision systems, modular designs for easy upgrades, and enhanced throughput capabilities. These advancements in SMT machines not only reduce labor costs but also improve yield rates, making SMT lines indispensable for manufacturing everything from consumer gadgets to automotive electronics and telecommunications gear. As global supply chains stabilize post-pandemic, the affordability of high-quality SMT machines from Asian manufacturers has democratized access, allowing even small-to-medium enterprises (SMEs) to compete with larger players.

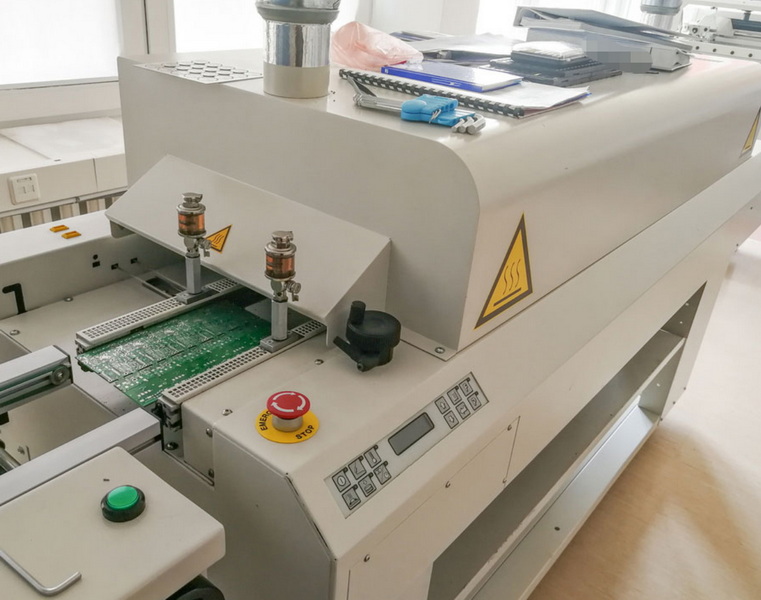

What Does An SMT Line Cost in 2025

Core Components of an SMT Line Featuring SMT Machines

A typical SMT line integrates a sequence of specialized SMT machines that work seamlessly together: solder paste printers, high-speed pick-and-place SMT machines, reflow soldering ovens, automated optical inspection (AOI) systems, conveyors, board loaders/unloaders, and sometimes selective soldering or wave soldering units for hybrid assemblies. Among these, the pick-and-place SMT machine stands out as the most critical and expensive component, often accounting for 60-70% of the total line cost due to its role in precisely positioning thousands of components per hour with sub-millimeter accuracy.

Solder Paste Printers as Essential SMT Machines

The SMT line process commences with solder paste printers, which are precision SMT machines responsible for depositing uniform layers of solder paste onto PCB pads via stencils. In 2025, these SMT machines range in price from $26,000 for semi-automatic models suitable for prototyping to $80,000 for fully automated, vision-aligned units capable of handling high-mix, low-volume production. Advanced features in modern SMT machines include laser-guided alignment, automatic stencil cleaning, and 2D/3D paste volume inspection, ensuring defect rates below 1%. Highlywin supplies a wide array of compatible spare parts for these SMT machines, preventing costly downtimes and extending operational life.

For businesses scaling up, investing in dual-lane SMT machines for printers allows parallel processing, effectively doubling throughput without proportionally increasing footprint. These SMT machines are particularly vital in high-density interconnect (HDI) board production, where paste deposition precision directly impacts soldering quality.

Pick-and--Place SMT Machines: The Heart of the Line

No discussion of SMT line costs is complete without focusing on pick-and-place SMT machines, which fetch components from feeders and place them onto PCBs at speeds exceeding 60,000 components per hour (CPH) in top-tier models. Pricing for these flagship SMT machines spans $100,000 for entry-level single-head units to over $700,000 for modular, multi-gantry systems from brands like Hanwha, JUKI, ASM, FUJI, and Yamaha. The cost escalation reflects capabilities such as intelligent feeders, AI-powered component recognition, and support for odd-form parts like large connectors or LEDs.

In 2025, flexible SMT machines with quick-changeover features dominate, enabling manufacturers to switch between product variants in under 10 minutes—a boon for just-in-time (JIT) production. Highlywin partners with leading SMT machine producers to offer customized configurations, integrating AI peripherals that predict feeder jams or placement errors in real-time, thereby boosting overall equipment effectiveness (OEE) to over 95%.

Reflow Ovens and Other Thermal SMT Machines

Reflow ovens, another category of indispensable SMT machines, melt the solder paste to form reliable joints and cost between $20,000 for compact 6-zone models and $150,000 for 12-zone nitrogen-purged behemoths optimized for lead-free soldering profiles. These SMT machines must maintain precise temperature gradients to avoid issues like tombstoning or voiding, with advanced models featuring conveyor speed control and flux management systems.

Nitrogen atmospheres in premium SMT machines reduce oxidation, enhancing joint integrity for high-reliability applications such as aerospace and medical devices. Highlywin's service teams specialize in calibrating these SMT machines to IPC standards, ensuring compliance and longevity.

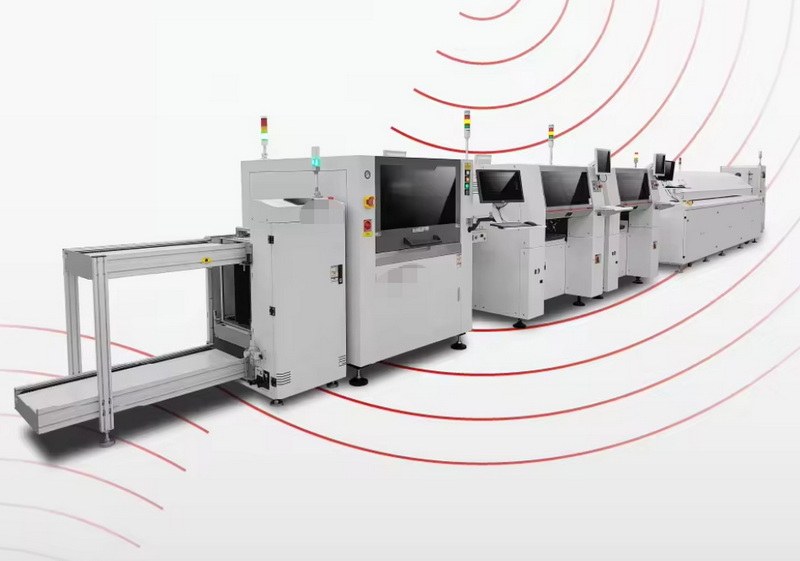

Turnkey SMT Line Cost

SMT Line Cost Breakdown by Scale and Type

SMT line investments in 2025 are categorized by production volume: entry-level for labs and startups, mid-range for contract manufacturers (CMs), and high-end for original equipment manufacturers (OEMs) churning out millions of units annually. Each tier prioritizes different SMT machine attributes to balance cost and performance.

Entry-Level SMT Lines with Affordable SMT Machines

Entry-level SMT lines, totaling $100,000 to $200,000, incorporate basic SMT machines ideal for volumes under 1,000 boards per day (BPD). These setups often feature desktop pick-and-place SMT machines with 10,000 CPH speeds and manual intervention points, perfect for R&D or hobbyist-scale operations. While initial costs are low, scalability requires forethought—modular SMT machines allow phased upgrades.

Mid-Range SMT Lines for Growing Operations

Mid-range configurations, priced at $200,000 to $800,000, deploy versatile SMT machines handling 5,000 to 20,000 BPD. Dual-lane pick-and-place SMT machines and 8-zone reflow ovens enable efficient mid-volume runs, with ROI achieved in 12-18 months for high-margin products. Highlywin excels here, customizing SMT machines with peripherals for seamless expansion.

Key Factors Driving SMT Line and SMT Machine Costs

Several variables beyond raw hardware dictate final pricing for SMT machines and lines.

Brand Prestige, Origin, and SMT Machine Quality

Renowned SMT machines from Japanese or European brands command premiums for reliability, while Chinese SMT machines offer 30-50% savings with comparable specs—Highlywin bridges this gap with vetted suppliers ensuring ISO-certified quality.

Automation Level and AI Enhancements in SMT Machines

AI integration in SMT machines adds $50,000-$200,000 but delivers autonomous operation, self-optimizing feeders, and anomaly detection.

Throughput, Precision, and SMT Machine Capacity

CPH ratings directly scale costs: a 20,000 CPH SMT machine at $150,000 versus 90,000 CPH at $500,000+. Component size support (01005 to 50mm) further influences pricing.

Infrastructure, Software, and Operational Overhead

Facility modifications, power upgrades, and MES software for SMT machines add $10,000-$100,000 upfront, with annual utilities hitting $1,500-$7,000. Spares and training for SMT machines run $5,000-$50,000 yearly.

Hidden Costs, Savings, and Highlywin's Value Proposition

Beyond capex, factor in shipping ($20,000+), installation ($50,000), and 20-30% annual opex. Savings tactics include leasing SMT machines ($3,000/month entry-level), refurbished units (40-60% off), and Highlywin's bundles saving up to $400,000 via integrated SMT machines, services, and spares.

Highlywin's one-stop SMT solutions encompass global installation, 24/7 support, and AI-optimized SMT machines, reducing TCO by 25%. Future trends point to greener, smarter SMT machines with 10-15% cost reductions via localized production.

Conclusion

In 2025, SMT line costs—from $100,000 basic setups to $8 million turnkey systems—are dominated by sophisticated SMT machines, with pricing shaped by scale, automation, and support ecosystems. Strategic partnerships with experts like Highlywin unlock savings, reliability, and innovation in SMT machines, empowering businesses to thrive in competitive electronics manufacturing.

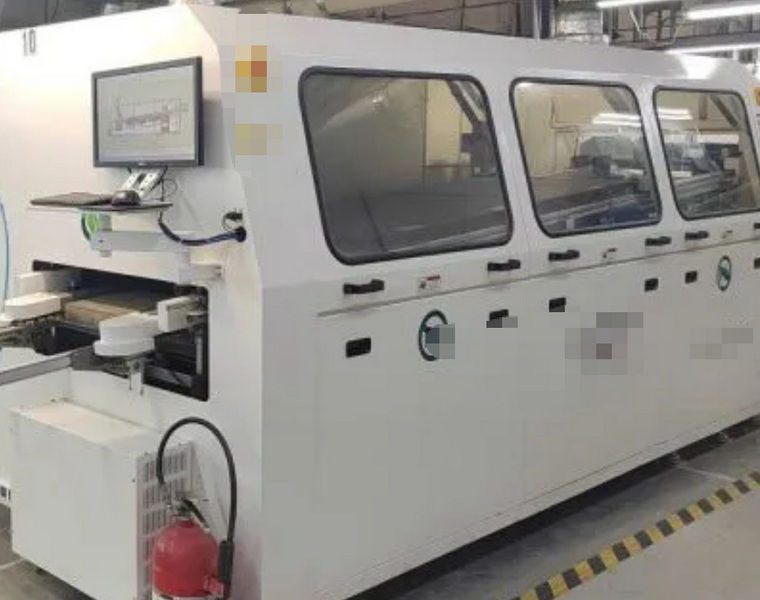

SMT Line Budget Planning

FAQ

1. What is the starting cost for a basic SMT line with SMT machines in 2025?

A basic SMT line, including essential SMT machines like printers and pick-and-place units, starts at $100,000. This suits small-scale production.

2. Which SMT machine costs the most in an SMT line?

Pick-and-place SMT machines dominate at $100k-$700k+, comprising 60-70% of costs due to speed and precision needs.

3. How can Highlywin reduce SMT line expenses?

Highlywin offers bundled SMT machines, peripherals, services, and spares, saving $400k+ via cost-effective Chinese-standard quality.

4. What are annual operating costs for SMT machines?

Expect $20k-$70k yearly for utilities, maintenance, and spares across SMT machines.

5. Are there financing options for expensive SMT machines?

Yes, leasing SMT machines starts at $3k/month; Highlywin provides flexible plans for full SMT lines.
