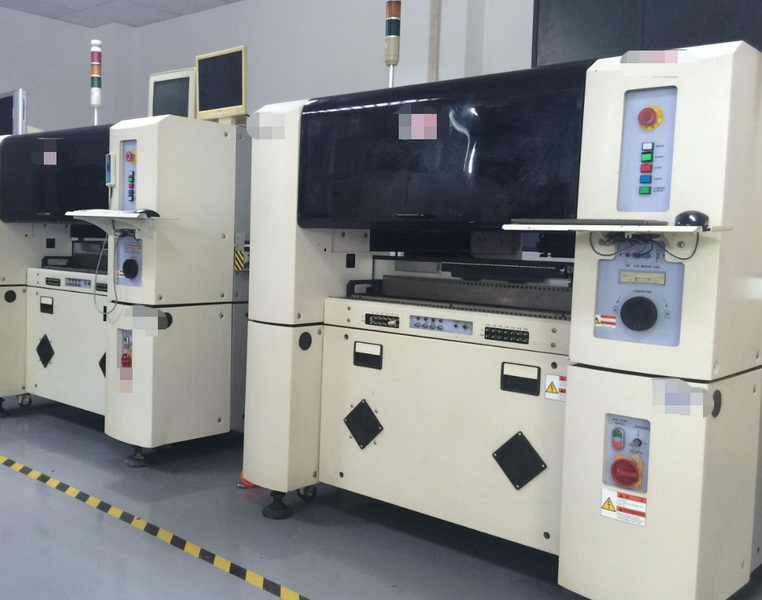

SMT accessories play a critical role in surface mount technology production lines, ensuring precise assembly of electronic components on printed circuit boards. Highlywin, as a leading provider of SMT/AI/peripheral equipment, comprehensive SMT services, and spare parts sales, delivers one-stop SMT solutions for global clients worldwide. This article delves deeply into the most common issues encountered with SMT accessories such as stencils, squeegee blades, feeders, nozzles, vision systems, and more, offering detailed troubleshooting steps, preventive measures, and expert recommendations to minimize downtime and maximize production efficiency.
SMT accessories encompass a wide range of components essential for seamless operation in surface mount technology assembly processes. These include solder paste stencils, squeegee blades for printing, pick-and-place nozzles and feeders, vision alignment systems, reflow oven belts, and automated optical inspection (AOI) sensors, all integral to SMT accessories functionality. Without reliable SMT accessories, production lines face frequent interruptions, leading to defects like bridging, tombstoning, and misplacements that compromise product quality.
The importance of high-quality SMT accessories cannot be overstated in modern electronics manufacturing. Faulty SMT accessories not only reduce yield rates but also increase scrap costs and labor expenses. For instance, a single jammed feeder in SMT accessories can halt an entire line, costing thousands in lost productivity per hour. Highlywin addresses these pain points by supplying premium, compatible SMT accessories backed by global service support, ensuring clients maintain optimal throughput.
Regular maintenance of SMT accessories forms the backbone of reliable SMT operations. Manufacturers must track usage cycles, perform cleaning protocols, and source replacements proactively. By understanding common pitfalls in SMT accessories, operators can implement targeted fixes, extending equipment life and enhancing precision in high-volume production environments.
Solder bridging remains one of the top defects associated with SMT accessories during the solder paste printing stage. This occurs when excess solder paste bridges adjacent pads, short-circuiting components due to misaligned stencils or worn squeegee blades in SMT accessories. High squeegee pressure exacerbates the problem, forcing paste into unintended areas, while stencil aperture buildup further contributes to uneven deposition across SMT accessories.
To resolve solder bridging in SMT accessories, begin with a thorough inspection of the stencil for damage or residue. Clean SMT accessories stencils using ultrasonic cleaners or specialized wipes to restore aperture clarity. Adjust squeegee pressure to 1-2 kg per 25 cm of blade length and reduce printing speed to 20-40 mm/s, optimizing paste transfer in SMT accessories. Highlywin recommends laser-cut stainless steel stencils as durable SMT accessories that resist warping under repeated use.
Preventive strategies for SMT accessories include daily viscosity checks on solder paste, ensuring it stays between 500,000-800,000 cps. Implement board supports to prevent flexing during printing with SMT accessories, and monitor environmental factors like humidity (ideally 40-60%) that influence paste behavior. Upgrading to automated stencil inspection systems integrated with SMT accessories can detect bridging risks in real-time, preventing defects downstream.
Insufficient solder joints, commonly known as opens, plague SMT accessories when inadequate paste volume reaches component pads. Clogged stencil apertures or low paste viscosity in SMT accessories setups are primary culprits, often compounded by feeder misplacements that shift components before reflow. This defect manifests as weak electrical connections, failing reliability tests in final assemblies.
Fixing insufficient joints starts with verifying solder paste release from SMT accessories stencils, achieved by etching apertures 5-10% larger than pad size. Replenish paste frequently to avoid drying in SMT accessories printers, and calibrate board alignment pins for sub-25-micron accuracy. Highlywin's service experts perform on-site audits of SMT accessories, recalibrating printers to achieve consistent volume transfer.
Long-term solutions for SMT accessories involve switching to Type 4 or finer paste particles for better flow, and installing SPI (Solder Paste Inspection) tools as advanced SMT accessories. Train operators to recognize early signs like paste slumping, and maintain detailed logs of SMT accessories performance metrics to predict maintenance needs.
Solder balling introduces stray solder spheres on boards, originating from turbulent paste flow during printing with SMT accessories. Excessive squeegee speed (>50 mm/s) or air entrapment in stencil apertures of SMT accessories promotes detachment during reflow, contaminating assemblies and risking shorts.
Mitigate solder balling by segmenting large stencil openings in SMT accessories and applying nano-coatings to improve paste release. Reduce squeegee angle to 45-60 degrees and clean stencils after every 10 prints using SMT accessories maintenance kits. Highlywin supplies high-performance polyurethane squeegees as robust SMT accessories that minimize shear forces.
Additional tactics include humidity control above 50% to prevent paste drying in SMT accessories, and reflow profiling with gradual ramps to remelt balls harmlessly. Regular audits of SMT accessories printing parameters ensure compliance, slashing balling rates by up to 90%.
Tombstoning, where chip components stand upright like tombstones, arises from uneven reflow heating or pad imbalance, often worsened by imprecise feeders and nozzles in SMT accessories. Insufficient paste on one pad side causes capillary action to lift components during SMT accessories reflow processes.
Counter tombstoning by optimizing reflow profiles with peak temperatures at 245-260°C and short times above liquidus. Ensure SMT accessories feeders deliver components with <50-micron offsets, verified via vision systems. Highlywin's precision nozzles for SMT accessories handle fine-pitch parts flawlessly, stabilizing placement.
Design pads symmetrically (1:1 ratio) and use flux with high activity for SMT accessories assemblies. Pre-bake boards to remove moisture, preventing vapor-induced lifts in SMT accessories operations.

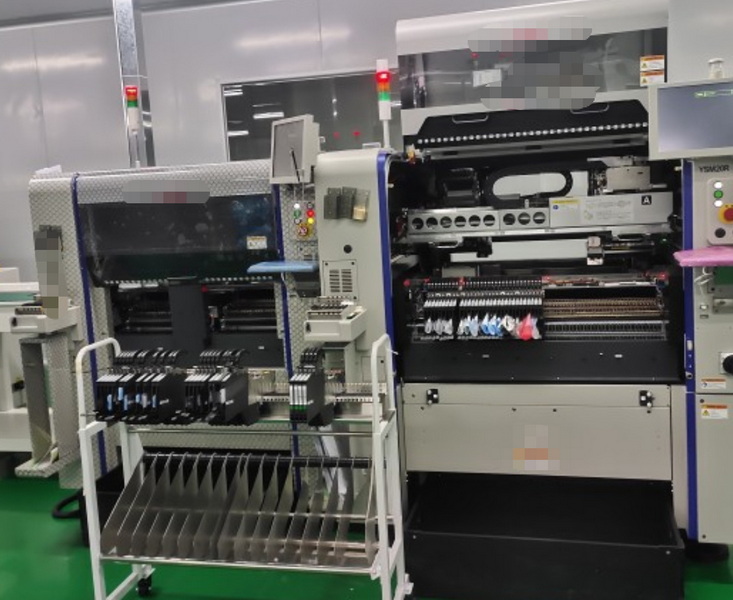

Misplacement plagues pick-and-place stages when worn nozzles or miscalibrated feeders in SMT accessories drag components across boards. Vision system glitches in SMT accessories fail to correct offsets on BGA or QFN packages, leading to open circuits.
Remedy by replacing nozzles after 50,000 cycles and running feeder pitch calibration routines daily on SMT accessories. Clean vacuum pick tips to maintain >90 kPa suction, and use fiducial marks for enhanced vision accuracy in SMT accessories. Highlywin stocks OEM-compatible SMT accessories feeders for seamless integration.
Operator training on tape loading prevents jams in SMT accessories, while software updates fix algorithmic errors in placement heads.
Nozzles in SMT accessories endure abrasive wear from component handling, resulting in drops, scratches, or polarity flips. Ceramic or hardened steel nozzles as SMT accessories last longer but demand proper storage to avoid contamination.
Proactive replacement schedules and vacuum filter checks extend SMT accessories nozzle life. Highlywin offers size-specific SMT accessories nozzles with anti-static coatings for delicate LEDs and capacitors.
Feeder jams halt production when tape peels fail or sensors misread empties in SMT accessories. Dust accumulation and improper splicing plague vibratory or motorized feeders as SMT accessories.
Clear jams by powering down and removing tape remnants carefully from SMT accessories feeders. Implement anti-static protocols and weekly lubrications for smooth advancement.
Vision failures in SMT accessories stem from dirty lenses, poor lighting, or outdated firmware, misaligning boards by microns. Daily lens wipes and LED adjustments restore SMT accessories precision.
Firmware upgrades from Highlywin ensure SMT accessories vision systems handle reflective surfaces effectively.
Warped stencils and chipped squeegees in SMT accessories cause smearing and scoops. Store flat in climate-controlled cabinets and polish blades monthly.
Highlywin's framed nano-stencils as SMT accessories withstand 100,000+ cycles.
Belt tracking errors in SMT accessories ovens misalign boards, while residue buildup affects heat transfer. Tension adjustments and solvent cleans maintain SMT accessories conveyor integrity.
Drifting sensors in SMT accessories AOI miss voids or bridges. Bi-weekly calibrations with standards ensure >99% detection.
Comprehensive PM for SMT accessories includes cycle logging, cleaning schedules, and inventory stocking. Highlywin's global teams handle all SMT accessories servicing.
- Daily: Clean stencils, nozzles in SMT accessories.
- Weekly: Feeder inspections, vision checks for SMT accessories.
- Monthly: Full audits of SMT accessories parameters.
Highlywin provides authentic SMT accessories with warranties, avoiding counterfeit risks that plague production.
Mastering common issues with SMT accessories through vigilant maintenance and expert sourcing elevates SMT line performance dramatically. Highlywin's comprehensive ecosystem of equipment, spares, and services positions clients for success in demanding electronics manufacturing. Embrace reliable SMT accessories to achieve defect-free production and sustained growth.
Excess paste from high pressure or dirty stencils in SMT accessories leads to bridging. Clean regularly and calibrate pressures.
Balance reflow profiles and use precise feeders in SMT accessories for even heating.
Dust and tape issues cause jams in SMT accessories feeders. Clean and splice properly.
Replace every 50k cycles and check vacuum in SMT accessories nozzles.
Clean lenses and calibrate lighting daily on SMT accessories systems.
