How To Troubleshoot Common Problems with SMT Pick And Place Machines?

Views: 222     Author: Ann     Publish Time: 2025-12-22      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Content Menu

Introduction to SMT Pick And Place Machines Troubleshooting

Core Subsystems in SMT Pick And Place Machines

Structured Troubleshooting Workflow for SMT Pick And Place Machines

Feeder-Related Problems and Solutions

Nozzle and Vacuum System Failures

Vision System and Alignment Challenges

PCB Handling and Clamping Errors

Software, Programming, and Data Integrity Issues

Mechanical Wear, Vibration, and Precision Drift

Preventive Maintenance Strategies

Partnering with Highlywin for SMT Pick And Place Machines Support

Conclusion

FAQ

>> 1. What causes frequent no-pick errors in SMT Pick And Place Machines?

>> 2. How to fix vision misalignment on SMT Pick And Place Machines?

>> 3. Why do PCBs shift during SMT Pick And Place Machines operation?

>> 4. How often should nozzles be replaced in SMT Pick And Place Machines?

>> 5. Can software errors mimic hardware faults in SMT Pick And Place Machines?

SMT Pick And Place Machines form the core of modern electronics assembly lines, where even minor faults can halt production and increase defect rates. Highlywin, as a leading provider of SMT equipment, AI solutions, peripherals, full-service support, and spare parts, offers this comprehensive guide to help global clients quickly diagnose and resolve issues in SMT Pick And Place Machines, ensuring maximum uptime and efficiency.

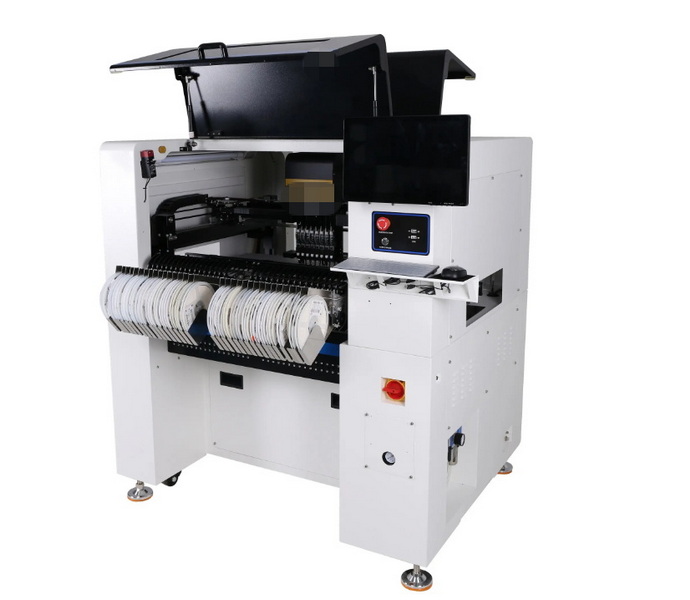

How To Troubleshoot Common Problems with SMT Pick And Place Machines

Introduction to SMT Pick And Place Machines Troubleshooting

SMT Pick And Place Machines integrate precise mechanics, advanced vision systems, pneumatic controls, and sophisticated software to handle high-speed component placement on PCBs. When problems arise, they often stem from interconnected subsystems like feeders, nozzles, vacuum lines, cameras, or program data, leading to symptoms such as missed picks, misalignments, or stoppages. Understanding these interactions is key to effective troubleshooting of SMT Pick And Place Machines, minimizing downtime that can cost thousands per hour in high-volume operations.

Operators of SMT Pick And Place Machines frequently encounter recurring issues that, if addressed systematically, become predictable and solvable. This guide draws from industry best practices to outline symptoms, root causes, step-by-step fixes, and preventive measures tailored for SMT Pick And Place Machines in diverse production environments, from high-mix prototyping to mass manufacturing.

Core Subsystems in SMT Pick And Place Machines

Every SMT Pick And Place Machine consists of several critical subsystems working in harmony. The feeder bank supplies components via tape, tray, or stick formats, while the gantry system with X/Y axes moves the placement head rapidly across the PCB. Z-axis controls provide fine height adjustments, nozzles create vacuum for picking, and vision cameras ensure alignment using fiducials and component recognition. PCB conveyors and clamps secure the board, and the control software orchestrates the entire sequence.

Faults in one area cascade: a dirty feeder might cause nozzle collisions, while vision errors lead to widespread placement offsets across the SMT Pick And Place Machines. Regular inspection of these subsystems prevents escalation, keeping SMT Pick And Place Machines running at peak CPH (components per hour) ratings, often exceeding 50,000 for mid-range models.

Structured Troubleshooting Workflow for SMT Pick And Place Machines

Approach SMT Pick And Place Machines issues with a logical workflow: first, note the exact alarm code or symptom from the operator interface. Isolate the subsystem—feeder-related errors show slot numbers, vacuum faults trigger pickup alarms, and vision problems flag recognition failures. Perform safety shutdowns, then check mechanical conditions, electrical connections, and software parameters in that order.

Test incrementally: after cleaning a nozzle, run a single pick cycle; post-vision tweak, place five test components. Log findings in a digital maintenance app specific to your SMT Pick And Place Machines model for trend analysis. This method resolves 80% of SMT Pick And Place Machines faults within 30 minutes, avoiding unnecessary parts orders or vendor calls.

Feeder-Related Problems and Solutions

Feeder malfunctions top the list of SMT Pick And Place Machines downtime causes, manifesting as intermittent no-picks, tape jams, or height mismatches. Common triggers include debris accumulation under the feeder base, worn peel-off pins, faulty peel sensors, or incorrect tape pitch settings. In high-speed SMT Pick And Place Machines, mismatched feeder types exacerbate errors, especially with narrow-pitch 0402 components.

To troubleshoot, power down and remove the feeder from the bank. Inspect for tape residue on gears and sensors; clean with isopropyl alcohol and lint-free wipes. Verify base seating—elevated feeders cause Z-collisions—and test peel motion manually. Recalibrate pitch via the setup menu, then reload tape ensuring proper leader length. For persistent issues in SMT Pick And Place Machines, replace clutch assemblies or upgrade to intelligent feeders with auto-splice detection.

Advanced diagnostics involve oscilloscope checks on feeder motor signals and air cylinder pressures. Highlywin stocks compatible feeders for major SMT Pick And Place Machines brands, with rapid global shipping to restore lines swiftly.

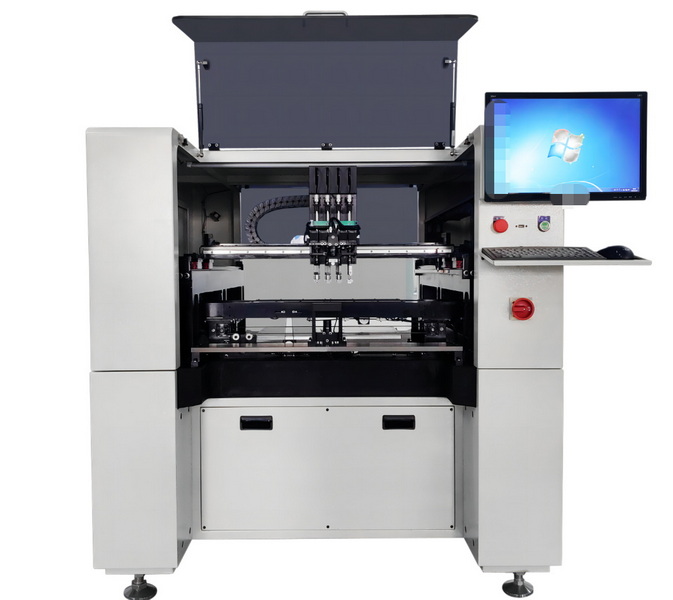

SMT Machine Downtime Reduction

Nozzle and Vacuum System Failures

Vacuum deficiencies plague SMT Pick And Place Machines, resulting in dropped components, skewed placements, or empty tape pockets post-pick. Symptoms include hissing leaks, low gauge readings (below -60 kPa), or error codes like "vacuum timeout." Causes range from clogged inline filters and cracked hoses to deformed nozzle tips and perished O-rings.

Begin diagnosis by swapping the suspect nozzle to another head— if the problem follows, replace it immediately. Measure static vacuum at the manifold using a digital gauge; values under spec indicate pump wear or filter blockage. Disassemble filters quarterly, noting carbon buildup from flux vapors. Purge lines with compressed air and inspect for pinholes.

In SMT Pick And Place Machines with rotary heads, balance nozzle sets by size and wear level to prevent dynamic imbalances. Proactive schedules—inspecting 100 nozzles weekly—cut pickup errors by 70%. Highlywin provides precision nozzles engineered for longevity in demanding SMT Pick And Place Machines applications.

Vision System and Alignment Challenges

Vision failures in SMT Pick And Place Machines produce tombstoning, offsets, or rotations, where components land misaligned despite successful picks. Dirty lenses, LED flicker, or obscured fiducials (gold pads on PCBs) fool algorithms, while ambient light interferes with contrast. Software glitches, like outdated libraries for odd-shaped parts, compound issues.

Clean optics with microfiber cloths and check LED rings for dead segments. Reteach fiducials under production lighting, ensuring >90% recognition confidence. For offsets, run machine self-calibration routines, verifying stage encoders with laser interferometers if available. Tombstoning demands Z-height tweaks—lower by 0.05mm for chips—and solder paste audits upstream.

High-resolution cameras in newer SMT Pick And Place Machines handle 01005 parts flawlessly post-tuning. Integrate AI vision upgrades from Highlywin to predict and auto-correct drifts in real-time, boosting first-pass yields to 99.5%.

PCB Handling and Clamping Errors

Warped PCBs or loose clamps derail SMT Pick And Place Machines, causing board shifts mid-placement and batch rejects. Symptoms: fiducials undetected on reloads, inconsistent edge support, or clamps slipping under head pressure. Thin flex boards amplify problems via flexure during high-speed moves.

Adjust conveyor side guides to 1-2mm clearance and level rails with shims. Replace rubber clamp inserts annually, as hardening reduces grip. Input exact board thickness into the software to set optimal stop heights. For multi-panel arrays on SMT Pick And Place Machines, enable edge-lift sensors to pause on warps.

Thermal checks prevent heat-induced bowing; preheat PCBs if needed. Highlywin's conveyor upgrades feature pneumatic clamps for rigid hold, ideal for large-format SMT Pick And Place Machines.

Software, Programming, and Data Integrity Issues

Erroneous CAD imports cripple SMT Pick And Place Machines, flipping rotations or assigning wrong nozzles. CSV centroids with imperial/metric mismatches or missing refdes fields halt jobs. Firmware bugs in older SMT Pick And Place Machines reject valid files.

Validate data pre-import using tools like Excel macros for rotation checks. Standardize on ASCII centroids with consistent delimiters. Backup parameter sets before tweaks, and simulate jobs offline. Post-setup, perform first-article verification placing 20 critical parts.

Over-the-air updates from manufacturers fix many glitches; Highlywin assists with custom software optimizations for hybrid SMT Pick And Place Machines lines.

Mechanical Wear, Vibration, and Precision Drift

Long-term degradation in SMT Pick And Place Machines shows as creeping inaccuracies: ball screw backlash widens, linear guides score, and belts stretch. Vibrations from unbalanced fans or loose covers amplify errors at panel edges.

Quarterly PM includes greasing rails, tensioning belts to 10-15N, and laser-aligning axes. Vibration pads under feet dampen floor noise. Monitor placement stats via SPC charts—if std dev exceeds 25 microns, service gantries.

Highlywin's retrofit kits restore OEM specs to aging SMT Pick And Place Machines economically.

Preventive Maintenance Strategies

Daily rituals for SMT Pick And Place Machines: wipe heads, empty dust trays, log vacuum trends. Weekly: nozzle audits, feeder peels, vision exposure tests. Monthly: full axis homing, belt inspections, software verifies.

Digital checklists via apps track compliance, flagging overdue tasks. Training ensures operators spot precursors early. This regimen slashes breakdowns by 60%, per industry benchmarks.

Partnering with Highlywin for SMT Pick And Place Machines Support

Highlywin delivers turnkey SMT Pick And Place Machines solutions, from sales to on-site service. Remote diagnostics via Ethernet pinpoint faults instantly; genuine spares ship worldwide same-day. Custom training and audits optimize your SMT Pick And Place Machines fleet.

Conclusion

Mastering troubleshooting elevates SMT Pick And Place Machines reliability, slashing defects and accelerating throughput. From feeders to firmware, systematic checks and PM prevail. Highlywin empowers your team with expertise and resources for uninterrupted production.

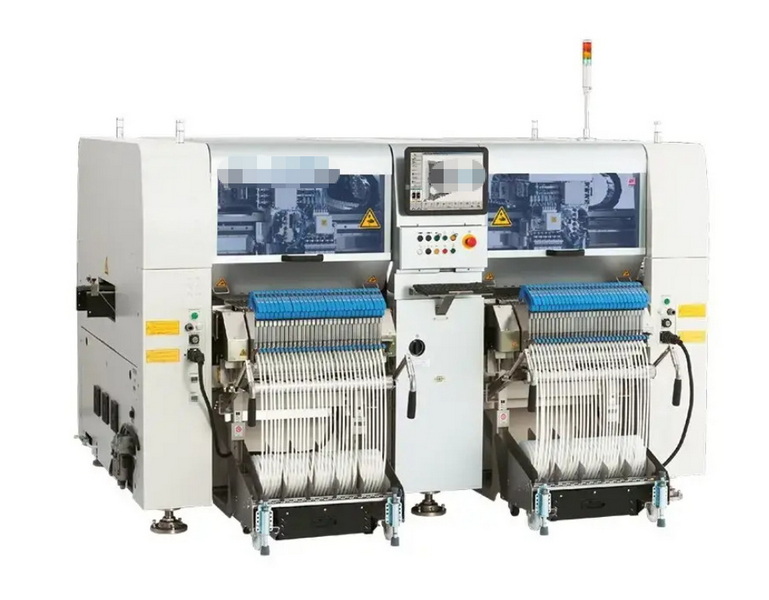

SMT Pick And Place Performance Issues

FAQ

1. What causes frequent no-pick errors in SMT Pick And Place Machines?

No-pick errors stem from vacuum leaks, clogged nozzles, or feeder jams, resolved by pressure checks and cleaning.

2. How to fix vision misalignment on SMT Pick And Place Machines?

Clean lenses, retune lighting, and recalibrate fiducials to restore accuracy.

3. Why do PCBs shift during SMT Pick And Place Machines operation?

Loose clamps or warped boards cause shifts; tighten guides and verify thickness settings.

4. How often should nozzles be replaced in SMT Pick And Place Machines?

Inspect weekly, replace every 10,000 cycles or on visible wear.

5. Can software errors mimic hardware faults in SMT Pick And Place Machines?

Yes, wrong rotations or data mimic mechanical issues; validate imports first.
