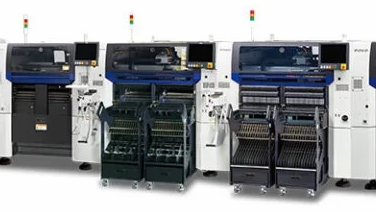

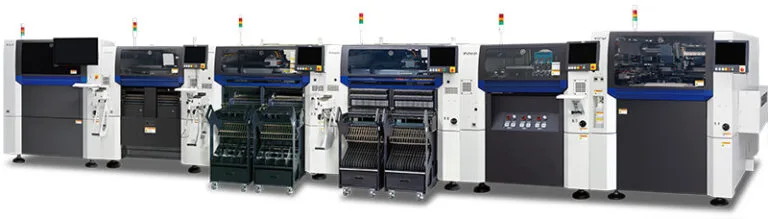

Yamaha is a global leader in SMT (Surface Mount Technology) equipment, known for its high precision, flexibility, and modular design. Its placement machines are widely used in consumer electronics, automotive electronics, medical devices, and other fields. Below are the key knowledge points:
YSM10
Placement Speed: 21,000 CPH (components per hour)
Placement Accuracy: ±35μm
Applicable Components: 0201 to 55mm2 chips, supports LED, QFN, etc.
Advantages: High cost performance, suitable for small and medium batch production.
YSM20
Placement Speed: 30,000 CPH
Placement Accuracy: ±35μm
Upgraded Feature: Dual track placement, capable of processing two PCBs simultaneously.
YSM40R (High-Speed Model)
Placement Speed: 120,000 CPH (dual arm cooperation)
Placement Accuracy: ±25μm
Applicable Scenarios: High volume production for smartphone motherboards, servers, etc.
YSP10: Entry-level equipment, with a speed of about 5,000 CPH, suitable for R&D labs or small batch trials.
Modular Design: Supports flexible expansion of feeders, vision systems, and other modules.
Intelligent Calibration: Equipped with 3D laser + high-definition camera composite detection, reducing the rate of component loss.
Software Ecosystem: Yamaha P-Tool programming software supports quick changeovers, compatible with MES systems.
Energy Consumption Control: Some models (like YSM20) use low-power motors, saving 15-20% more energy than comparable equipment.
Capacity Requirements
Small Batch/Variety: Choose YSM10 or YSP10 for short changeover times.
Large Batch: Requires YSM40R or YSM60, using dual tracks to enhance efficiency.
Component Compatibility
Micro Components (01005, 0201): Requires high-precision models (±25μm or lower).
Special-Shaped Components (connectors, heat sinks): Need to select multi-functional nozzles and expanded feeders.
Budget and Long-Term Costs
New Equipment Price: Mid-range models about $150,000 to $300,000; high-end exceeds $500,000.
Used Equipment: Pay attention to maintenance records, avoid older models (like the old YS series) due to spare parts shortages.
Daily Maintenance: Regularly clean nozzles and check vacuum pump pressure to avoid component loss.
Spare Parts Inventory: Commonly used nozzles, feeder belts, and other consumables should be kept in stock.
Software Upgrades: Keep an eye on firmware updates on the Yamaha official website to enhance equipment stability.
Consumer Electronics: YSM40R used for smartphone motherboard placement, achieving a yield of over 99.95%.
Automotive Electronics: YSM20 processes automotive-level components (high-temperature capacitors, large inductors).
Aerospace/Military: Customized models required to support special material PCBs and ultra-high precision placement.
Official Distributors: Local distributors or contact us at HIGHLYWIN for service.
Leasing Options: Short-term projects can consider equipment leasing to reduce initial investment.
Conclusion: Yamaha placement machines are known for their stability and scalability, and model selection should balance speed, accuracy, and budget. It is recommended to contact the official for customized solutions and to visit demonstration workshops to inspect equipment.
