An SMT Pick And Place Machine is the core automation equipment in modern electronics manufacturing, responsible for placing tiny SMT components accurately onto PCBs at high speed. For a company like Highlywin that provides one-stop SMT solutions including SMT Pick And Place Machine sales, full service support, and spare parts for global customers, understanding these machines optimizes production lines, improves yield rates, and reduces costs.

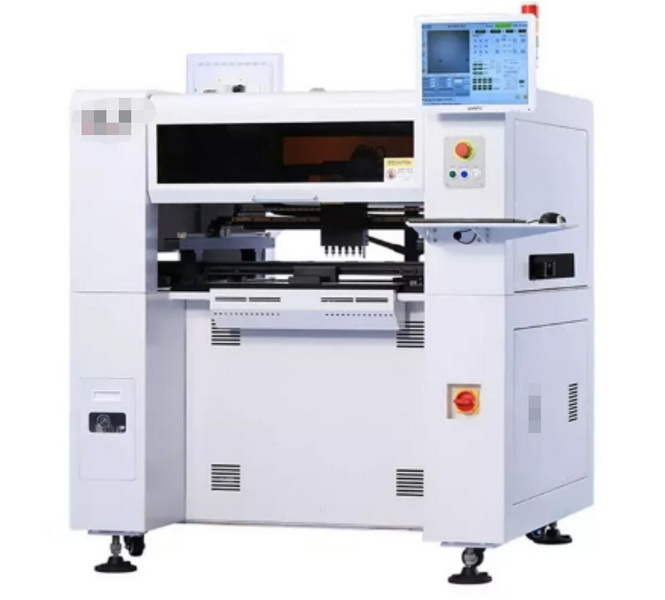

A SMT Pick And Place Machine consists of several key modules working in harmony: feeders that supply components in tape, tray, or tube formats; placement heads equipped with multiple vacuum nozzles for picking and placing; precision X/Y/Z motion systems driven by linear motors or ball screws; advanced vision systems for component inspection and PCB alignment; conveyor and clamping mechanisms for stable PCB handling; and sophisticated control software for programming and real-time adjustments. These elements ensure the SMT Pick And Place Machine operates reliably in demanding 24/7 factory environments, handling everything from 01005 micro-resistors to large QFNs with micrometer precision.
Feeders are critical in a SMT Pick And Place Machine, as they deliver components sequentially to the pick position, supporting high-speed operations without interruption. Placement heads in modern SMT Pick And Place Machines often feature 8-12 nozzles that can simultaneously pick, rotate, and place parts, dramatically boosting throughput. Vision systems use high-resolution cameras—both upward-facing for components and downward-facing for fiducials—to enable the SMT Pick And Place Machine to correct for offsets, rotations, and distortions automatically.
The motion control in a SMT Pick And Place Machine relies on servo motors and encoders for sub-micron repeatability, while software integrates CAD data from Gerber files to generate optimized placement paths. Conveyor systems in the SMT Pick And Place Machine support SMEMA standards for seamless integration with upstream printers and downstream AOI machines, maintaining line balance. Highlywin offers a full range of these components as spares, ensuring minimal downtime for SMT Pick And Place Machine users worldwide.
The operation of a SMT Pick And Place Machine begins with PCB loading via conveyor, where edge clamps secure the board firmly. Fiducial cameras scan reference marks on the PCB, allowing the SMT Pick And Place Machine to compute exact coordinates and compensate for any warping or misalignment. The placement head then follows the programmed sequence: it moves to a feeder, activates vacuum on a suitable nozzle to pick the SMT component, scans it with a bottom camera for centering and orientation, rotates as needed, and places it precisely onto the solder paste deposit.
This pick-place cycle repeats thousands of times per hour in a high-performance SMT Pick And Place Machine, with intelligent algorithms optimizing head travel paths to minimize idle time. After completing top-side placement, the PCB conveyor advances to the reflow oven, while the SMT Pick And Place Machine immediately starts on the next board, achieving continuous flow production. Advanced SMT Pick And Place Machines incorporate force feedback on nozzles to detect pick failures or tombstoning risks, rejecting faulty parts automatically.
Programming a SMT Pick And Place Machine involves importing BOM and centroid data, building component libraries with shape models, and simulating paths to verify feasibility. Offline programming software allows engineers to prepare jobs without halting the SMT Pick And Place Machine, supporting rapid changeovers in high-mix environments. Highlywin provides training and software support to help customers master SMT Pick And Place Machine programming for maximum efficiency.

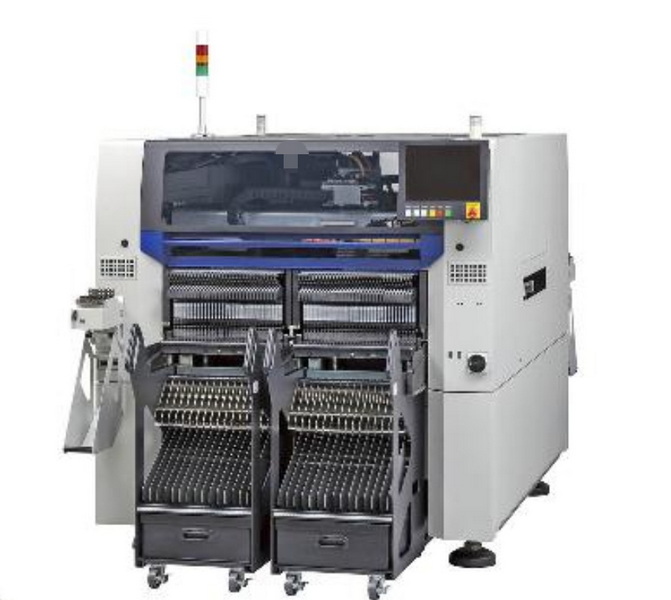

Contemporary SMT Pick And Place Machines emphasize ultra-high speed, with components per hour (CPH) ratings from 10,000 for entry-level models to over 100,000 for flagship high-speed SMT Pick And Place Machines. Placement accuracy typically ranges from ±25 microns at 3σ for standard SMT Pick And Place Machines to ±15 microns for premium models handling 0.3mm pitch BGAs. Linear motor drives and flying vision heads enable these SMT Pick And Place Machines to maintain speed without sacrificing precision.
Vision technology is pivotal in SMT Pick And Place Machines, featuring AI-enhanced recognition for warped components, shadowed leads, and irregular shapes. Many SMT Pick And Place Machines now support 3D paste height inspection integration, feeding data back to adjust placement force dynamically. Feeder capacity in a SMT Pick And Place Machine can exceed 120 eight-mm tapes, with intelligent feeders monitoring stock levels and alerting for refills.
Software features in SMT Pick And Place Machines include auto-optimization of placement sequences, push-pull feeder strategies for dual-gantry models, and MES connectivity for traceability. Energy-efficient designs and modular architectures allow SMT Pick And Place Machines to scale from desktop units to full production lines. These advancements make the SMT Pick And Place Machine indispensable for Industry 4.0 smart factories.
SMT Pick And Place Machines power assembly of smartphones, laptops, wearables, TVs, routers, and automotive ECUs, where density and speed are paramount. In medical devices, SMT Pick And Place Machines ensure precise placement for reliable diagnostics and imaging equipment. Industrial controls and power supplies benefit from robust SMT Pick And Place Machine handling of heatsinks and capacitors.
LED lighting production relies on specialized SMT Pick And Place Machines for uniform phosphor placement on MCPCBs. Aerospace and telecom demand high-reliability SMT Pick And Place Machines certified for vibration and thermal extremes. IoT and 5G modules use compact SMT Pick And Place Machines for heterogeneous integration of RF and sensors.
Highlywin's SMT Pick And Place Machines support global clients in these sectors, offering customized feeders and software for unique applications.
Evaluate SMT Pick And Place Machine choices by matching CPH to throughput needs, board dimensions (50x50mm to 1200mm), component sizes (01005 to 100mm), and feeder count. Consider uptime >99%, mean time to repair, and total cost including consumables like nozzles. Test compatibility with existing printers and ovens via SMEMA/MES interfaces.
Budget for spares inventory, as Highlywin provides comprehensive SMT Pick And Place Machine parts and on-site service. Simulate production scenarios to validate SMT Pick And Place Machine performance before purchase.
In complete SMT lines, SMT Pick And Place Machines link SPI for paste verification and AOI for post-placement checks, enabling closed-loop feedback. Buffers and stackers around the SMT Pick And Place Machine handle throughput mismatches. Highlywin's one-stop solutions include all peripherals for seamless SMT Pick And Place Machine deployment.
Daily checks on SMT Pick And Place Machine nozzles, vacuum levels, and feeders prevent issues; weekly calibrations maintain accuracy. Highlywin offers training to extend SMT Pick And Place Machine life and ROI.
The SMT Pick And Place Machine stands as the heartbeat of electronics manufacturing, delivering speed, precision, and flexibility essential for competitive production. From components to full lines, Highlywin empowers global customers with reliable SMT Pick And Place Machines and support for sustained success.
An SMT Pick And Place Machine automates component placement on PCBs in SMT processes. It integrates with printers and ovens for full assembly.
Accuracy reaches ±25-50 microns, with premium models at ±15 microns.
From 01005 passives to BGAs and odd-forms.
Match CPH, board size, and mix to needs; factor in support.
Nozzle cleaning, calibration, and feeder checks routinely.
