Modern pick-and-place vision systems serve as the “eyes and brain” of electronic manufacturing equipment, combining advanced imaging hardware with intelligent software to achieve micron-level precision in component placement. This guide covers system architecture, core functions, technological evolution, and detailed model comparisons.
Vision Systems in Pick-and-Place Machines
Industrial Cameras:
Line scan cameras (for high-speed recognition)

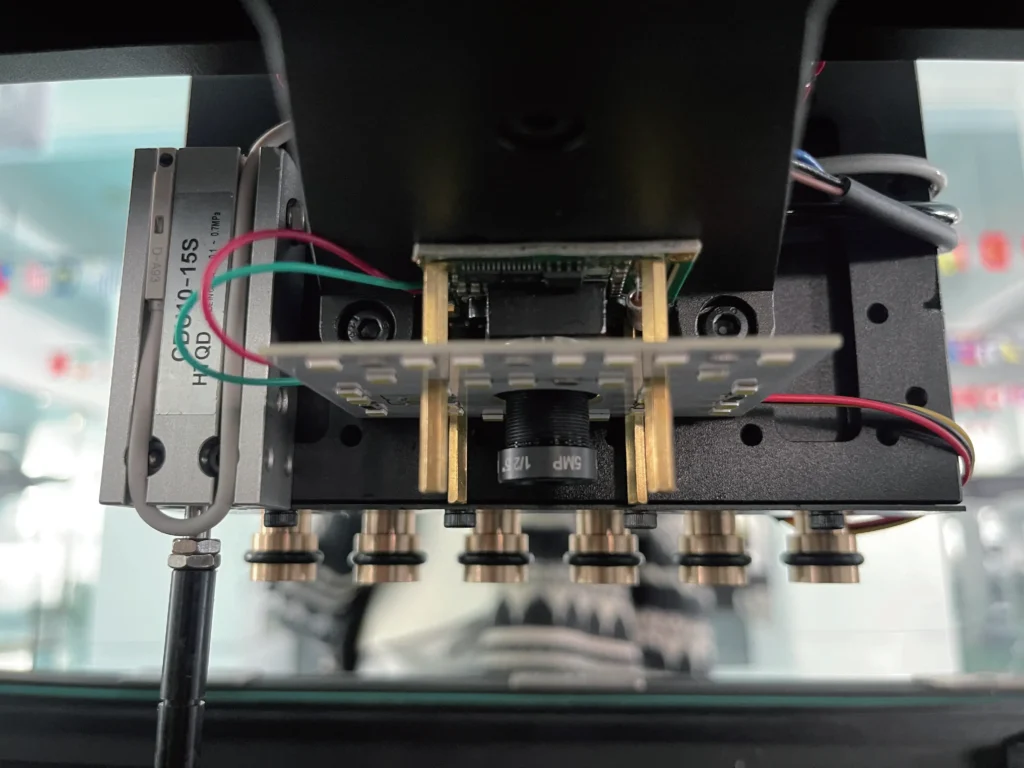

Area array cameras (for precise positioning, e.g. 5MP MARK camera in HW-F5)
Lighting Systems:
Ring lights, coaxial lighting (dual-source in HW-S6 for material adaptability)
Scattering light sources for component contrast enhancement
Auxiliary Sensors:
Laser rangefinders (PCB warpage detection)
Vacuum self-check sensors with visual confirmation
Torque sensors in collaborative robot applications

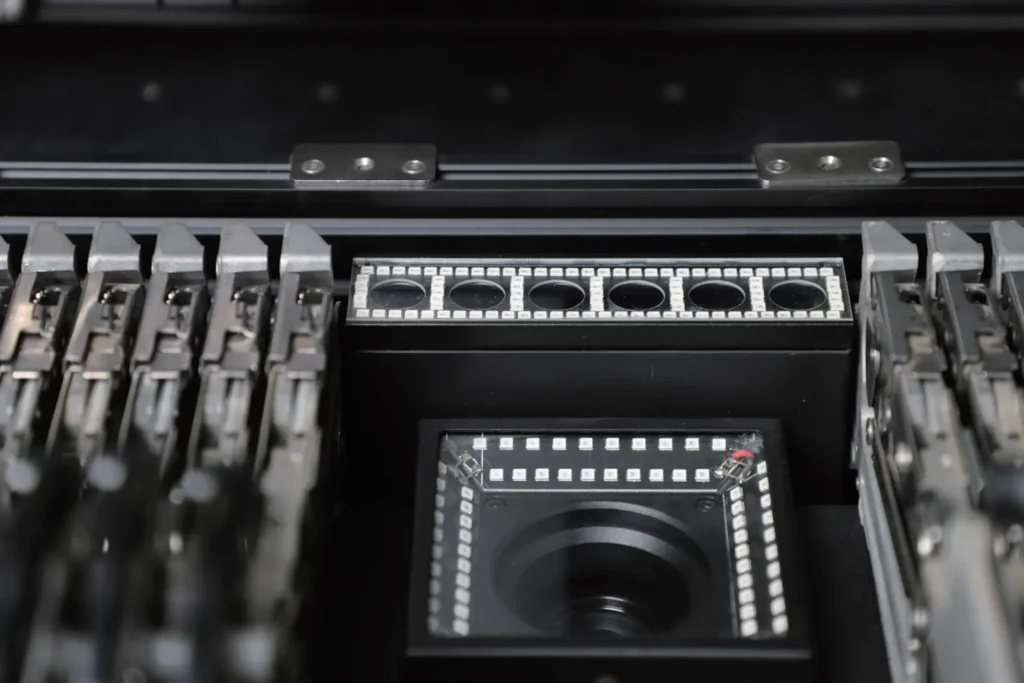

Equipped with six 400K-pixel camera sets and one 3MP high-precision camera
Image processing (edge detection, template matching)
Deep learning models (defect prediction, path optimization)
Coordinate transformation systems (image-to-mechanical mapping)
WYSIWYG PCB simulation interfaces
High-speed flying cameras capture 0402 (0.4×0.2″) to 0201 micro components
Handles challenging conditions: blurred silkscreen, tilted components (HW-S6 enhanced algorithms)
360° component rotation with 0.1° precision (HW-A8)

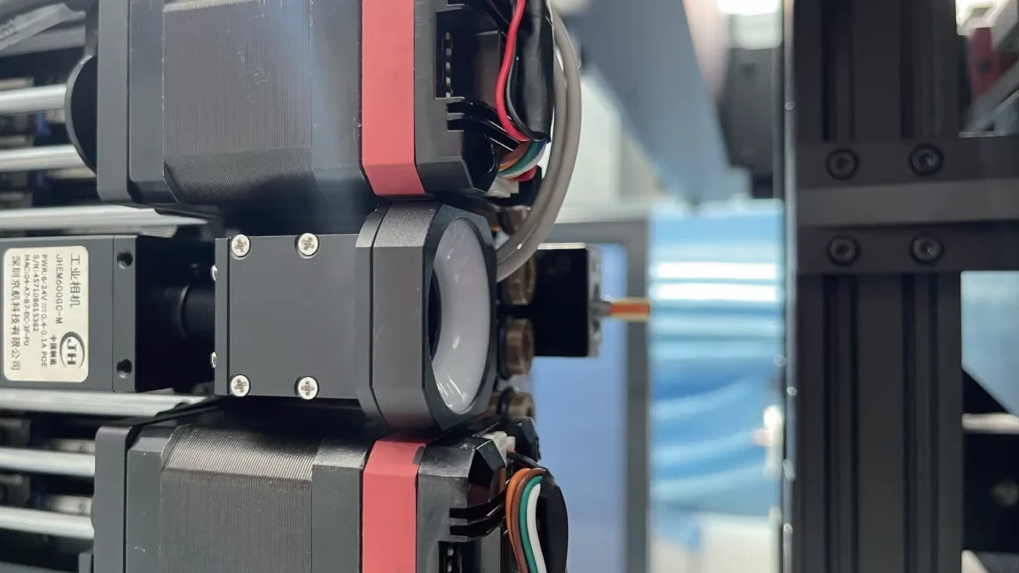

Using a 400,000-pixel surveillance camera and a scattering light source.
Nozzle center calibration (±0.05mm accuracy)
Real-time PCB warpage compensation (laser measurement + auto-adjustment)
Thermal expansion correction (environmental drift compensation)
Spline-guided Z-axis movement for consistent focus (HW-S6)
Pre-placement checks: polarity verification, lead deformation
Post-placement 3D inspection: solder pad contact validation
Component library management systems
From 0.1mm (2000s) to 0.02mm today (HW-F5 0201 support)
Laboratory systems achieving micron-level precision
Rule-based algorithms → Machine learning → Deep learning
MES integration for production data tracking
AI-powered path optimization (HW-F5/S5)
Force sensors for placement pressure monitoring
Spectral analysis for material verification
Collaborative robotics with vision-guided obstacle avoidance
Emerging Technologies: Event-based cameras (100,000+ CPH), quantum dot sensors for low-light environments, and hybrid vision-force control systems.

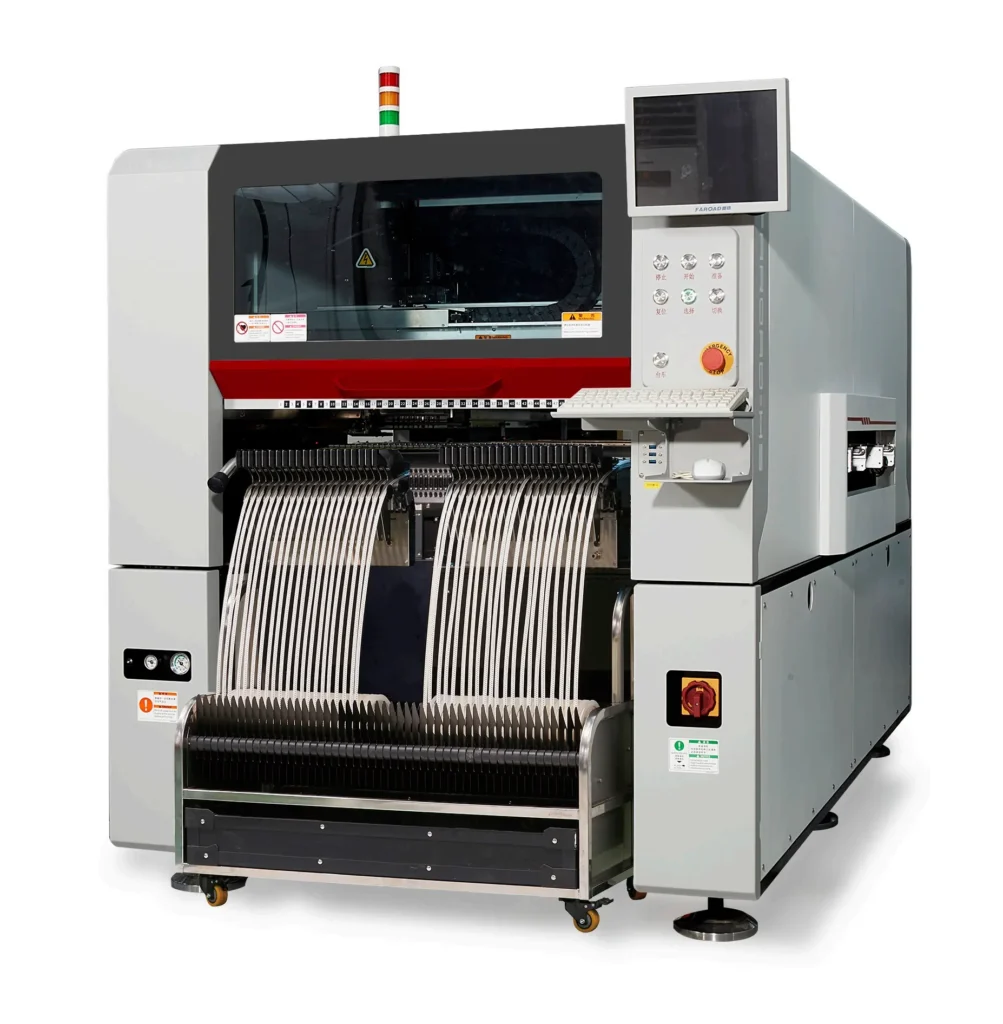

Pick-and-Place Machine
| Feature | HW-A8/A6L | HW-S6 | HW-S6 |
| Camera System | 8 linear cameras (A8) 6×400K pixel (A6L) | Hybrid: Flying + Linear + Fixed 500W MARK camera | 5MP flying + 6MP MARK Dual light sources |
| Min. Component | 0402 (11mm) | 0201 (0.6×0.3mm) | 0201 with enhanced recognition |
| Speed | 15,000 CPH (A6L) | 84,000 CPH (S5 dual-arm) | 45,000 CPH |
| Special Features | Basic component library | AI path optimization Thermal compensation | Spline Z-axis Through-hole feeders |
| Applications | Entry-level SMT | High-mix microelectronics | Demanding precision tasks |
3528/5050 large LEDs on flexible substrates (HW-A8L)
Requires scattering light sources for contrast
0201 resistors/capacitors, QFN chips
Demands 6MP+ cameras for pin verification
40×40mm MOSFET/IGBT modules
Special nozzles and lighting configurations required
Selection Criteria: Balance speed (CPH), precision (μm), and component compatibility. High-volume production benefits from HW-S5’s dual-arm configuration, while R&D environments may prefer HW-S6’s enhanced recognition capabilities. (Data references: IEEE Industrial Electronics Society publications 1990-2023 & HW technical documentation)
