SMT Pick And Place Machines are pivotal in surface-mount technology (SMT) assembly lines, automating the precise placement of electronic components onto printed circuit boards (PCBs). Highlywin, a premier supplier of SMT/AI/peripheral equipment, full-service support, and spare parts, delivers one-stop SMT solutions to global clients, ensuring seamless integration of advanced SMT Pick And Place Machines into production workflows. This comprehensive guide delves into the various types of SMT Pick And Place Machines, their features, applications, and selection criteria to empower manufacturers in optimizing their operations.
SMT Pick And Place Machines revolutionize electronics manufacturing by picking components from feeders—such as tapes, trays, or tubes—and placing them with micron-level accuracy onto PCBs. These machines eliminate manual labor errors, boost throughput, and support miniaturization trends in devices like smartphones, automotive electronics, and IoT gadgets. Highlywin's portfolio of SMT Pick And Place Machines caters to every scale, from hobbyist prototypes to high-volume industrial lines, backed by expert consultation and rapid spare parts delivery.
The evolution of SMT Pick And Place Machines traces back to the 1980s, starting with simple cartesian robots and advancing to today's AI-driven, high-speed platforms. Core components include placement heads with vacuum nozzles, vision systems for component recognition and alignment, feeder stations for continuous supply, and conveyor interfaces for inline integration. Modern SMT Pick And Place Machines incorporate software for recipe management, allowing quick changeovers between board types. For instance, a single SMT Pick And Place Machine can handle components from 01005 chips to large connectors, adapting via intelligent nozzle changes.
Manual SMT Pick And Place Machines represent the entry point for budget-conscious users, relying on human operators to control the placement head via joysticks, foot pedals, or touch interfaces. Ideal for low-volume production, repair work, or educational purposes, these SMT Pick And Place Machines offer unparalleled flexibility for irregular components without needing complex programming. Operators visually align PCBs and manually select parts, making them perfect for R&D labs or small workshops experimenting with custom designs.
Despite their simplicity, manual SMT Pick And Place Machines achieve placement accuracies of ±0.1mm to ±0.2mm, sufficient for most through-hole hybrids or basic SMD assemblies. Speeds typically range from 500 to 2,000 components per hour (CPH), limited by operator fatigue but enhanced by ergonomic designs. Highlywin recommends models like desktop units with built-in magnifiers and LED lighting for precision tasks. Maintenance is straightforward, involving basic nozzle cleaning and vacuum checks, ensuring long-term reliability in non-intensive environments.
These machines shine in scenarios requiring frequent setups, such as prototyping where design iterations occur daily. Users appreciate their portability—no need for dedicated cleanrooms—and low power consumption, often under 100W. However, for scaling up, transitioning to semi-automated SMT Pick And Place Machines becomes essential to maintain quality amid growing volumes.

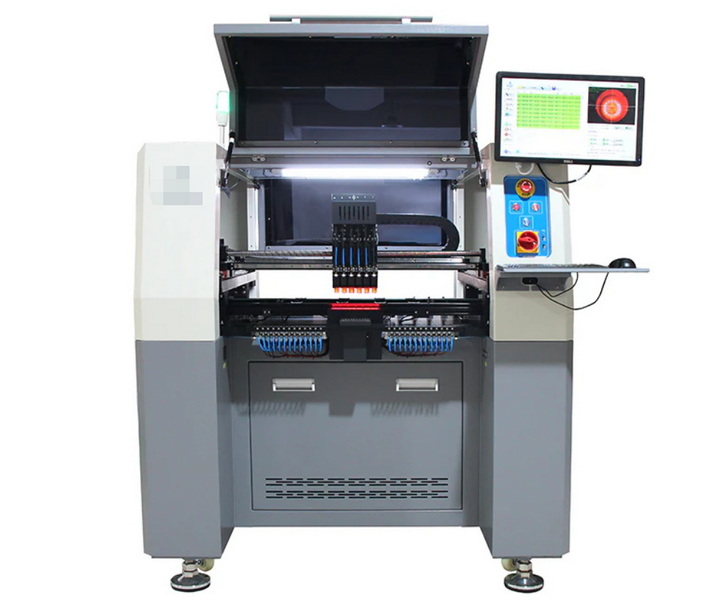

Semi-automatic SMT Pick And Place Machines bridge the gap between fully manual and automated systems, where operators handle PCB loading and feeder setup while the machine automates vision-guided placement. This hybrid approach suits small to medium enterprises (SMEs) with batch sizes of 50-500 boards, offering speeds of 3,000-8,000 CPH and accuracies around ±0.05mm. Highlywin's semi-automatic SMT Pick And Place Machines feature user-friendly interfaces, supporting both tape and tray feeders for diverse component types.
Vision cameras on these SMT Pick And Place Machines scan fiducials on PCBs and components, correcting for rotations or offsets in real-time. Pneumatic or electric actuators drive the heads, with teach modes allowing operators to program placements via demonstration. Safety interlocks and error detection prevent misplacements, reducing rework by up to 90%. Common applications include consumer gadgets assembly and pilot runs for new products.
Expandability is a key advantage; many models accept upgrades like additional feeders or conveyor adapters. Highlywin provides training and spare nozzles tailored to these SMT Pick And Place Machines, minimizing downtime. Compared to manuals, they cut labor costs significantly while retaining hands-on control for odd-form parts.

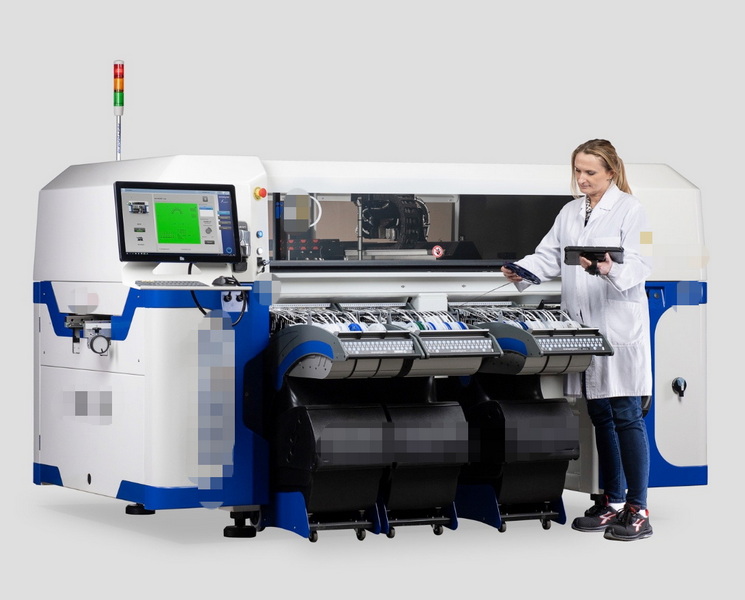

Fully automatic SMT Pick And Place Machines operate end-to-end without human intervention post-setup, integrating seamlessly into inline production lines with SMEMA-compatible conveyors. Designed for 24/7 operations, these SMT Pick And Place Machines deliver 15,000-50,000 CPH with ±0.03mm precision, handling everything from fine-pitch QFPs to BGAs. Highlywin supplies renowned brands, ensuring compatibility with reflow ovens, screen printers, and AOI systems for complete SMT lines.
Multi-gantry designs with 8-12 heads enable parallel processing, while linear motors provide smooth, high-acceleration movements. Software platforms like offline programming optimize head paths, reducing cycle times by 20-30%. Feeder trolleys support up to 120 stations, accommodating 8mm to 72mm tapes. These SMT Pick And Place Machines excel in high-mix environments through rapid recipe loading from barcode scans.
Reliability features include auto-nozzle exchange, self-diagnostics, and predictive maintenance alerts. Energy-efficient servo drives lower operational costs, aligning with green manufacturing goals. Highlywin's service network guarantees 99% uptime for these critical SMT Pick And Place Machines.
High-speed SMT Pick And Place Machines, often dubbed chip shooters or turbo placers, dominate mass production of simple, high-density boards like memory modules. Achieving 50,000-200,000 CPH, they employ rotary turrets or flying heads with 20+ nozzles optimized for resistors, capacitors, and diodes down to 0201 sizes. Turret mechanisms rotate to pick and place in one fluid motion, minimizing travel distances.
Runner or ball-screw drives ensure sub-millisecond positioning, with large feeder banks (up to 200) for uninterrupted runs. These SMT Pick And Place Machines prioritize volume over versatility, lacking support for tall or odd-shaped parts. Highlywin integrates them into dual-lane setups for doubled throughput without footprint expansion.
Vision is simplified to fiducial capture, speeding up processes. Cooling systems prevent thermal drift during marathon shifts. Ideal for LED lighting and power supply boards, they reduce costs per board dramatically.

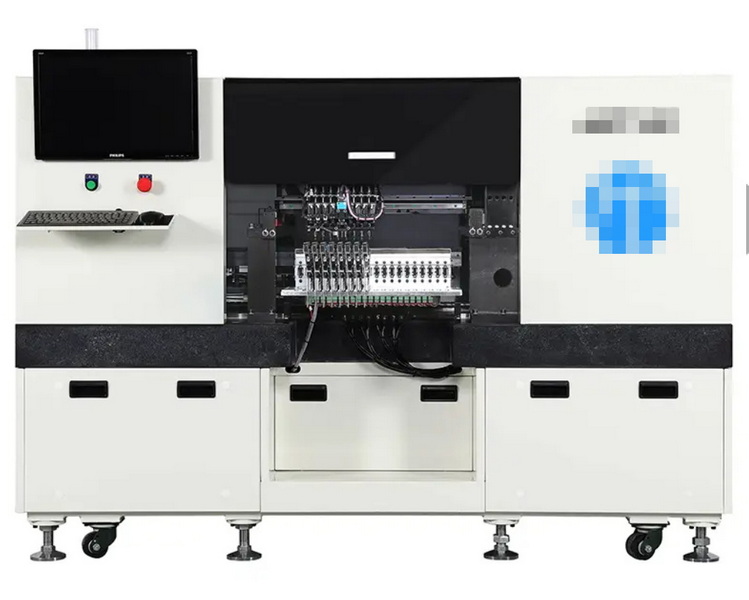

Multi-functional SMT Pick And Place Machines, or universal placers, tackle complex assemblies with diverse components including ICs, connectors, and flexible circuits. Operating at 10,000-40,000 CPH, they use fixed or translating heads with vision-centric placement for ±0.015mm accuracy. Arch or portal structures allow large board handling up to 1.5m x 0.6m.
Advanced 3D cameras identify part leads and heights, enabling bottom-up or top-down placement. Highlywin's models support odd-form grippers and force feedback for delicate parts. Recipe optimization algorithms balance speed and precision dynamically.
These SMT Pick And Place Machines thrive in high-mix/low-volume sectors like medical devices and aerospace, where changeovers occur hourly. Modular feeders and auto-calibration enhance adaptability.
Modular SMT Pick And Place Machines offer plug-and-play scalability, allowing users to stack heads, lanes, or modules as production grows. Base units start at 20,000 CPH, expanding to 100,000+ with additions. Flexible beam designs support sequential or parallel placement modes.
High feeder capacities (100+) and shared software ecosystems reduce integration hassles. Highlywin customizes configurations for specific workflows, like hybrid chip/IC lines. These SMT Pick And Place Machines future-proof investments amid market shifts.
Inline SMT Pick And Place Machines flow PCBs continuously through lines, syncing with upstream printers and downstream ovens for zero-touch handling. Batch variants process standalone stacks, ideal for offline prototyping or multi-line flexibility. Inline excels in volume; batch in versatility.
Sequential SMT Pick And Place Machines place components one-by-one for ultimate precision on intricate boards. Simultaneous models deploy multiple heads concurrently for speed on grids. Hybrids combine both for optimal performance.
Medium-speed SMT Pick And Place Machines (10,000-30,000 CPH) serve general-purpose needs with balanced features like pro feeders and compact footprints. Perfect for SMEs scaling from prototypes.
Evaluate CPH requirements, component mix, floor space, and budget. Prototypes favor manuals; volume demands high-speed. Highlywin audits lines for perfect fits.
AI enhances defect detection; linear motors boost speed; IoT enables remote monitoring in smart SMT Pick And Place Machines.
Highlywin offers end-to-end support for SMT Pick And Place Machines, from sales to spares and training.
Mastering the types of SMT Pick And Place Machines—from manual to high-speed modular—unlocks efficiency gains tailored to any operation. Highlywin's expertise ensures your SMT Pick And Place Machine investment delivers maximum ROI through reliable one-stop solutions.
An SMT Pick And Place Machine automates picking and placing SMD components on PCBs for precise, high-speed assembly.
High-speed models excel at 50,000+ CPH for chips; multi-functional prioritize versatility for ICs and odd-forms.
Semi-automatic or modular SMT Pick And Place Machines provide scalable, cost-effective options.
Advanced units achieve ±0.015mm via 3D vision and linear drives.
Highlywin delivers equipment sales, spares, maintenance, and full-line integration globally.
