A reliable SMT Pick and Place Machine is the heartbeat of any electronics manufacturing line. This highly precise automation system determines both the speed and accuracy of surface mount assembly, making it one of the most critical assets in your production facility. Whether you are running high-volume PCB production or prototype assembly, proper maintenance ensures consistent performance, higher yields, and longer machine lifespan.
At Highlywin, we not only provide sales and service for SMT/AI/peripheral equipment but also deliver full-range support and spare parts solutions. Our goal is to help global customers achieve seamless performance through one-stop SMT Pick and Place Machine maintenance best practices.

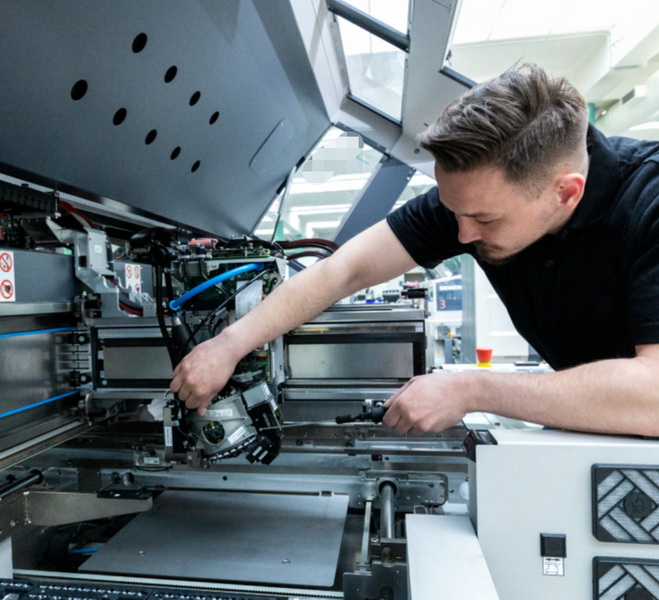

An SMT Pick and Place Machine is an automated robotic system that picks up tiny electronic components from feeders and places them precisely on a printed circuit board (PCB). This process is vital in the surface mount technology (SMT) line and requires extreme accuracy, as even a slight deviation can lead to defective solder joints or failed products.
- Gantry system: Controls X, Y, and Z axis movement for high-speed precision.
- Placement heads and nozzles: Handle the pickup and placement of components using vacuum.
- Feeders: Supply components from reels or trays for continuous operation.
- Vision system: Uses cameras to align components and verify placement accuracy.
- PCB conveyor: Transports circuit boards between different workstations.
Keeping each of these components clean, calibrated, and well-lubricated is essential for achieving long-term efficiency.
Regular maintenance of an SMT Pick and Place Machine minimizes breakdowns and ensures accurate PCB assembly. Poorly maintained machines can suffer from feeder jams, vision system misalignment, suction loss, or excessive vibration. These issues quickly lead to production downtime, component waste, and costly rework.
Proper maintenance provides multiple long-term benefits:
- Improves placement precision and component handling stability.
- Extends the machine's service life.
- Prevents unscheduled downtime and emergency repairs.
- Reduces long-term operational costs.
- Enhances product yield and reliability.
Daily care is the first line of defense for keeping your SMT Pick and Place Machine in optimal operating condition. A short routine before and after each shift can significantly reduce faults.
- Verify stable air pressure and clean, dry compressed air.
- Inspect vacuum suction lines for leaks or contamination.
- Use an approved SMT nozzle cleaner or soft lint-free cloth.
- Ensure no vacuum holes are blocked by dust or solder paste.
- Clean debris from feeder tracks.
- Verify tape peeling mechanism, sensor function, and component alignment.
- Clean camera lenses gently with lens cleaner.
- Confirm LED lights and focusing systems are in good condition.
- Wipe off excess oil, reapply grease where needed on moving axes.
- Place test PCBs to confirm placement accuracy before production begins.
Daily routine maintenance might take only fifteen minutes, but its payoff is enormous in production reliability.
Weekly maintenance focuses on areas that accumulate dust and residue over time. It ensures the internal mechanisms of your SMT Pick and Place Machine remain stable throughout continuous operation.
- Clean pickup and placement areas: Remove solder paste residue, flux dust, and adhesive buildup.
- Inspect belts, motors, and gears: Listen for abnormal noise, check for looseness or vibration.
- Verify PCB clamping systems: Ensure all clamps move smoothly without misalignment.
- Check feeders and component storage tracks: Confirm smooth component feeding.
- Run test cycles: Perform sample placements, validate pick-up accuracy, and scan misplacements using built-in software tools.
- Back up software settings: Always back up current calibration and parameters before any firmware updates.
Monthly sessions involve deeper cleaning, calibration, and performance validation across your SMT Pick and Place Machine.
- Vision system calibration: Use the manufacturer's calibration plates to ensure image recognition accuracy.
- Check vacuum filters and lines: Replace filters and ensure tubing has no cracks or air leaks.
- Tighten electrical connectors: Prevent signal instability or intermittent faults.
- Lubricate XYZ axis bearings and guide rails: Follow lubrication schedule specified in the machine manual.
- Test head height control and vacuum timing: Re-adjust settings if minor placement deviations occur.
- Inspect ESD grounding and static protection: Guarantee safe handling of sensitive components.
This preventive approach minimizes unexpected downtime and improves production continuity.

As production demands increase, so does the stress on your equipment. Every three to six months, conduct deeper inspections to ensure your SMT Pick and Place Machine is ready for long-term runs.
- Perform laser alignment checks: Verify component recognition using fiducials and laser calibration tools.
- Assess feeder bank alignment: Misalignment causes feeding errors and misplaced components.
- Inspect internal PCB conveyor belts: Replace them if tension decreases or tracking becomes uneven.
- Review aging parts: Replace worn nozzles, suction cups, or O-rings that show fatigue.
- Examine internal wiring: Look for chafed cables or overheated connectors.
This inspection is an ideal time to coordinate with your equipment supplier for professional service calibration.

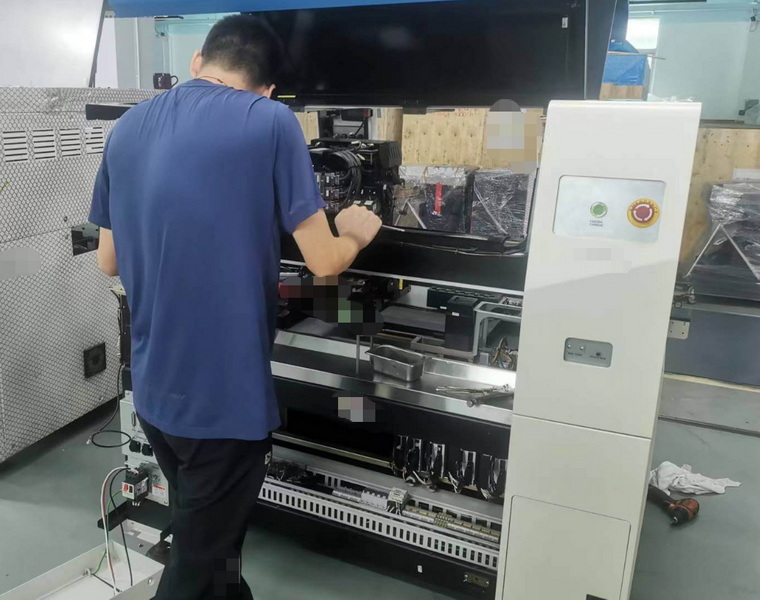

Yearly maintenance often requires cooperation between your in-house engineers and certified specialists. At this stage, the machine should undergo a comprehensive overhaul.
- Complete head disassembly and internal cleaning.
- Encoder and motor calibration for all moving axes.
- Replacement of all pneumatic seals and worn mechanical bearings.
- Servo and step motor performance testing.
- Full check of software, sensors, and machine logs for errors.
- Backup and documentation of performance records.
By performing a complete yearly inspection, you ensure your SMT Pick and Place Machine continues performing at its designed specification without deviation.
A well-equipped maintenance station is as critical as skilled technicians. Recommended tools include:
- ESD-safe gloves and mats.
- Precision tweezers and anti-static brushes.
- Torque wrench and calibration jigs.
- Vacuum pressure meter and hose tester.
- Cleaning alcohol (IPA) and microfiber cloths.
- Spare nozzles, sensors, filters, and feeder parts.
Keeping these tools organized ensures quick response during any production disruption.
Even the best-maintained SMT Pick and Place Machine will underperform if environmental conditions are poor. Control the following parameters:
- Temperature: Maintain 22–26 °C for optimal stability.
- Humidity: Keep between 40–60 %RH to prevent static buildup or oxidation.
- Power Supply: Ensure a dedicated, stable voltage line with surge protection.
- Floor Cleanliness: Minimize dust; install anti-static flooring or mats.
- Lighting: Ensure bright, consistent lighting for operators to detect issues easily.
Maintaining a clean and stable environment not only protects your equipment but also ensures consistent soldering and assembly quality.
Machine safety is non‑negotiable. Regular training reduces accidents and keeps operations smooth.
- Always power down the machine before any maintenance.
- Use lock-out/tag-out during part replacements.
- Avoid compressed air cleaning near sensors—use vacuum cleaning instead.
- Wear safety glasses and gloves during cleaning and lubrication.
- Only trained personnel should perform calibration or head removal.
Safety observations must be part of every operator's performance checklist.
An excellent maintenance process includes transparent documentation and continuous training. Track each activity using a digital or printed maintenance log, including:
- Equipment serial number and current version data.
- Maintenance date and responsible technician.
- Parts replaced, calibration results, and adjustments made.
Encourage your operators to attend manufacturer technical workshops. Up-to-date knowledge of machine operation and new firmware updates ensures your SMT Pick and Place Machine performs at cutting-edge standards.
Strategic maintenance is an investment—one that pays back in efficiency and customer satisfaction. Companies following strict maintenance schedules often achieve:
- 25–50% reduction in unplanned downtime.
- 15–30% increase in throughput.
- Extended machine lifespan by several years.
- Greater customer trust due to consistent quality output.
As electronics designs become smaller and more complex, a stable SMT Pick and Place Machine ensures your line stays competitive. Reliable machines lead to predictable deliveries, fewer rejects, and higher yield.
Some situations call for OEM involvement, particularly when machine calibration exceeds internal limits. Contact Highlywin's SMT service experts when:
- Axis accuracy cannot be corrected via standard process.
- Persistent vacuum leakage or pneumatic instability occurs.
- Software synchronization or firmware corruption happens.
- Mechanical head components show operational failure.
Professional assistance ensures replacement with genuine parts and proper re‑certification of machine accuracy.
Consistent and methodical maintenance is the foundation of uninterrupted production in every SMT line. By implementing structured daily, weekly, monthly, and annual maintenance routines, you can dramatically reduce downtime, avoid costly replacements, and maintain high‑precision assembly.
Your SMT Pick and Place Machine is not just a device—it's an investment in performance, productivity, and precision. Partnering with Highlywin ensures the best‑in‑class equipment, expert technical support, and comprehensive spare‑part solutions for a truly one‑stop SMT service experience.
Keeping your machines running flawlessly means keeping your business running strong.

Replace nozzles every three to six months under normal usage or sooner if you observe poor pickup accuracy, clogging, or vacuum loss.
Regular vision calibration, proper lubrication of the gantry system, and ensuring stable air pressure are key. Always run test boards to verify alignment accuracy after maintenance.
Use only ESD‑safe, non‑corrosive cleaners such as isopropyl alcohol for metal and plastic parts. Avoid strong solvents that may damage sensors or labels.
Environmental cleanliness, proper lubrication, temperature and humidity control, and adherence to preventive maintenance schedules all determine machine longevity.
While possible, it is always recommended to use original parts from verified sources like Highlywin to ensure compatibility, stable performance, and warranty protection.
